LY6564
Rev. 1.1
8K X 8 BIT HIGH SPEED CMOS SRAM
REVISION HISTORY
Revision
Rev. 1.0
Rev. 1.1
Description
Initial Issue
Delete
E-grade,
revise
Ordering Information
in page 10
Issue Date
Aug.27.2010
Apr. 06. 2012
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
5F, No. 2, Industry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
0
®
LY6564
Rev. 1.1
8K X 8 BIT HIGH SPEED CMOS SRAM
GENERAL DESCRIPTION
The LY6564 is a 65,536-bit high speed CMOS static
random access memory organized as 8,192 words
by 8 bits. It is fabricated using very high
performance, high reliability CMOS technology. Its
standby current is stable within the range of
operating temperature.
The LY6564 is well designed for high speed system
applications, and particularly well suited for battery
back-up nonvolatile memory application.
The LY6564 operates from a single power supply
of 5V and all inputs and outputs are fully TTL
compatible
FEATURES
Fast access time : 20ns
Low power consumption:
Operating current : 30mA (TYP.)
Standby current : 2μA (TYP.)
Single 5V power supply
All inputs and outputs TTL compatible
Fully static operation
Tri-state output
Data retention voltage : 2.0V (MIN.)
Green package available
Package : 28-pin 300 mil SOJ
28-pin 8mm x 13.4mm STSOP
PRODUCT FAMILY
Product
Family
LY6564(LL)
LY6564(LLI)
Operating
Temperature
0 ~ 70℃
-40 ~ 85℃
Vcc Range
4.5 ~ 5.5V
4.5 ~ 5.5V
Speed
20ns
20ns
Power Dissipation
Standby(I
SB1,
TYP.) Operating(Icc,TYP.)
2µA
30mA
2µA
30mA
FUNCTIONAL BLOCK DIAGRAM
PIN DESCRIPTION
SYMBOL
DESCRIPTION
Address Inputs
Data Inputs/Outputs
Chip Enable Inputs
Write Enable Input
Output Enable Input
Power Supply
Ground
No Connection
Vcc
Vss
A0 - A12
DQ0 – DQ7
DECODER
8Kx8
MEMORY ARRAY
CE#, CE2
WE#
OE#
V
CC
V
SS
NC
A0-A12
DQ0-DQ7
I/O DATA
CIRCUIT
COLUMN I/O
CE#
CE2
WE#
OE#
CONTROL
CIRCUIT
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
5F, No. 2, Industry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
1
®
LY6564
Rev. 1.1
8K X 8 BIT HIGH SPEED CMOS SRAM

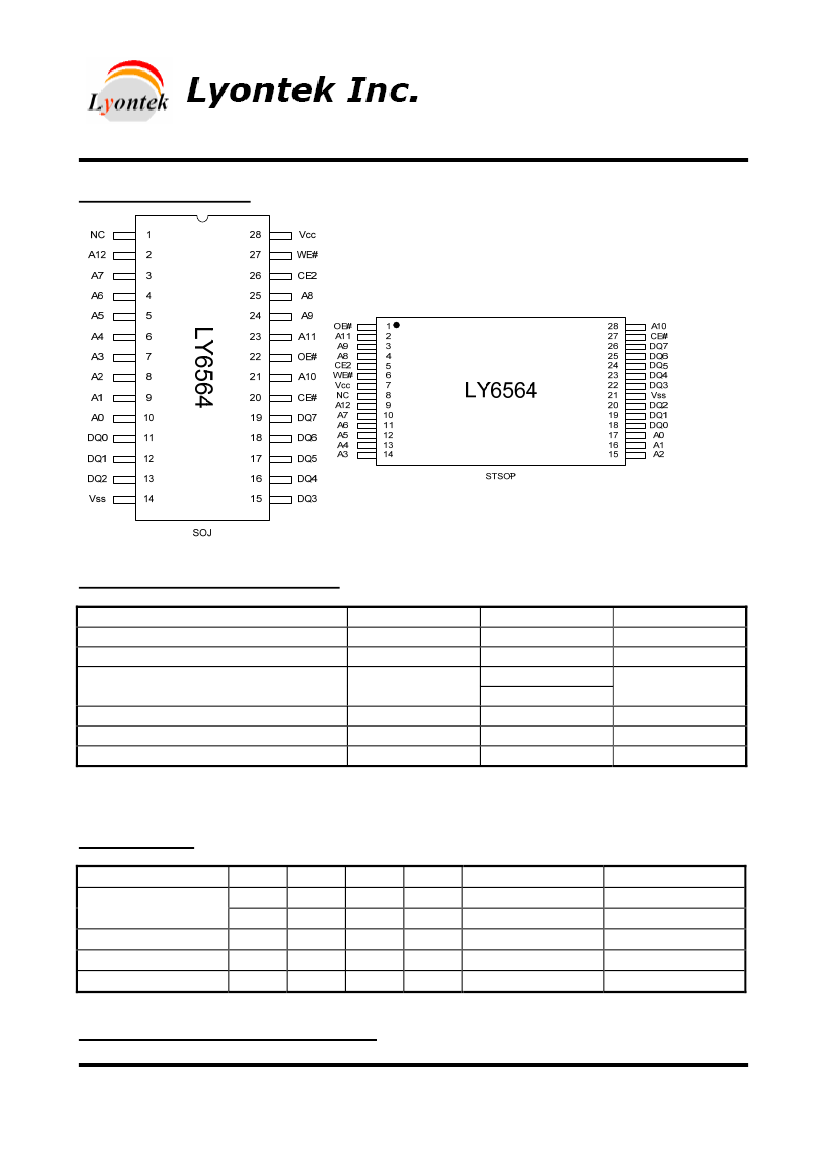

PIN CONFIGURATION
ABSOLUTE MAXIMUN RATINGS*
PARAMETER
Voltage on V
CC
relative to V
SS
Voltage on any other pin relative to V
SS
Operating Temperature
Storage Temperature
Power Dissipation
DC Output Current
SYMBOL
V
T1
V
T2
T
A
T
STG
P
D
I
OUT
RATING
-0.5 to 6.5
-0.5 to V
CC
+0.5
0 to 70(C grade)
-40 to 85(I grade)
-65 to 150
1
50
UNIT
V
V
℃
℃
W
mA
*Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device or any other conditions above those indicated in the operational sections of this
specification is not implied. Exposure to the absolute maximum rating conditions for extended period may affect device reliability.
TRUTH TABLE
MODE
Standby
Output Disable
Read
Write
Note:
CE#
H
X
L
L
L
CE2
X
L
H
H
H
OE#
X
X
H
L
X
WE#
X
X
H
H
L
I/O OPERATION
High-Z
High-Z
High-Z
D
OUT
D
IN
SUPPLY CURRENT
I
SB1
I
SB1
I
CC
I
CC
I
CC
H = V
IH
, L = V
IL
, X = Don't care.
DC ELECTRICAL CHARACTERISTICS
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
5F, No. 2, Industry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
2
®
LY6564
Rev. 1.1
8K X 8 BIT HIGH SPEED CMOS SRAM
MIN.
4.5
2.4
- 0.5
-1
-1
2.4
-
-
TYP.
5.0
-
-
-
-
-
-
30
*4
SYMBOL
TEST CONDITION
PARAMETER
Supply Voltage
V
CC
*1
Input High Voltage
V
IH
*2
Input Low Voltage
V
IL
V
CC
≧
V
IN
≧
V
SS
Input Leakage Current
I
LI
Output Leakage
V
CC
≧
V
OUT
≧
V
SS,
I
LO
Current
Output Disabled
Output High Voltage
V
OH
I
OH
= -1mA
Output Low Voltage
V
OL
I
OL
= 2mA
Average Operating
Power supply Current
I
CC
Cycle time = Min.
CE# = V
IL
and CE2 = V
IH
,
I
I/O
= 0mA
Other pins at V
IH
or V
IL
CE# = V
IH
or CE2 = V
IL
Others at V
IL
or V
IH
CE#
≧
V
CC
-0.2V or CE2
≦
0.2V
Other pins at 0.2V or V
CC
-0.2V
MAX.
5.5
V
CC
+0.5
0.8
1
1
-
0.4
55
UNIT
V
V
V
µA
µA
V
V
mA
Standby Power
Supply Current
I
SB
I
SB1
-
-
1
2
5
50
mA
µA
Notes:
1. V
IH
(max) = V
CC
+ 3.0V for pulse width less than 10ns.
2. V
IL
(min) = V
SS
- 3.0V for pulse width less than 10ns.
3. Over/Undershoot specifications are characterized, not 100% tested.
4. Typical values are included for reference only and are not guaranteed or tested.
Typical valued are measured at V
CC
= V
CC
(TYP.) and T
A
= 25℃
CAPACITANCE
(T
A
= 25
℃
, f = 1.0MHz)
PARAMETER
Input Capacitance
Input/Output Capacitance
SYMBOL
C
IN
C
I/O
MIN.
-
-
MAX
6
8
UNIT
pF
pF
Note : These parameters are guaranteed by device characterization, but not production tested.
AC TEST CONDITIONS
Input Pulse Levels
Input Rise and Fall Times
Input and Output Timing Reference Levels
Output Load
0.2V to V
CC
- 0.2V
3ns
1.5V
C
L
= 30pF + 1TTL, I
OH
/I
OL
= -4mA/8mA
