MCR3918-4 Overview

SILICON CONTROLLED RECTIFIER

DIGITRON SEMICONDUCTORS
MCR3818 SERIES, MCR3918 SERIES
SILICON CONTROLLED RECTIFIER
Available Non-RoHS (standard) or RoHS compliant (add PBF suffix).
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
MAXIMUM RATINGS
Rating
Peak repetitive forward and reverse blocking voltage
(1)
MCR3818, MCR3918-2
MCR3818, MCR3918-3
MCR3818, MCR3918-4
MCR3818, MCR3918-6
MCR3818, MCR3918-8
MCR3818, MCR3918-10
Peak non-repetitive reverse blocking voltage
MCR3818, MCR3918-2
MCR3818, MCR3918-3
MCR3818, MCR3918-4
MCR3818, MCR3918-6
MCR3818, MCR3918-8
MCR3818, MCR3918-10
Forward on-state current RMS
(all conduction angles)
Average on-state current
(T
C
= 67°C)
Circuit fusing considerations
(T
J
= -40 to +100°C, t
8.3ms)
Peak non-repetitive surge current
(1/2 cycle, 60Hz, T
J
= -40 to +100°C)
Peak gate power
(maximum pulse width = 10µs)
Average gate power
Peak forward gate current
(maximum pulse width = 10µs)
Peak gate voltage
Operating junction temperature range
Storage temperature range
Mounting torque
Symbol
Value
50
100
200
400
600
800
75
150
300
500
700
900
20
13
235
240
5
0.5
2
10
-40 to +125
-40 to +150
30
Unit
V
RRM
, V
DRM
Volts
V
RSM
Volts
I
T(RMS)
I
T(AV)
I
2
t
I
TSM
P
GM
P
G(AV)
I
GM
V
GM
T
J
T
stg
Amps
Amps
A
2
s
Amps
Watts
Watts
Amps
Volts
°C
°C
In. lb.
Note 1: V
DRM
for all types can be applied on a continuous basis. Ratings apply for zero or negative gate voltage; however, positive gate voltage shall not be applied concurrent
with negative potential on the anode. Blocking voltages shall not be tested with a constant current source such that the voltage ratings of the devices are exceeded.
THERMAL CHARACTERISTICS
Characteristic
Thermal resistance, junction to case
DIGI PF2

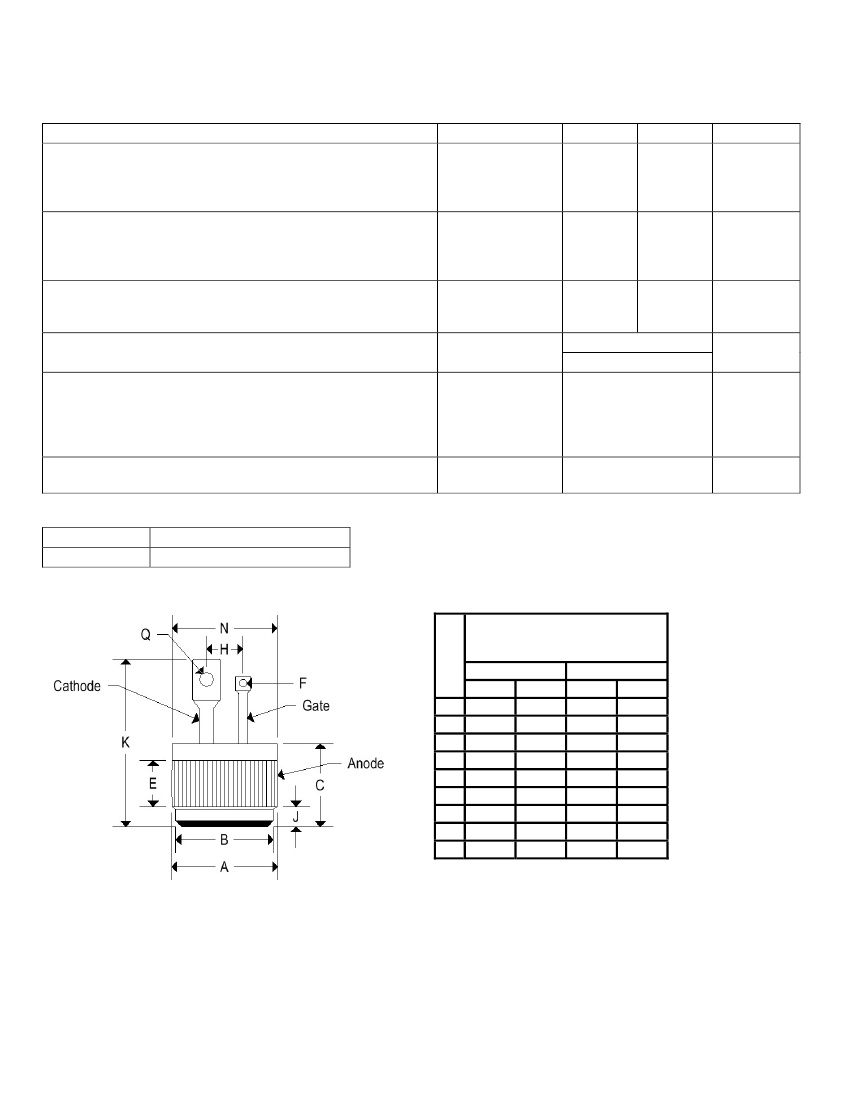

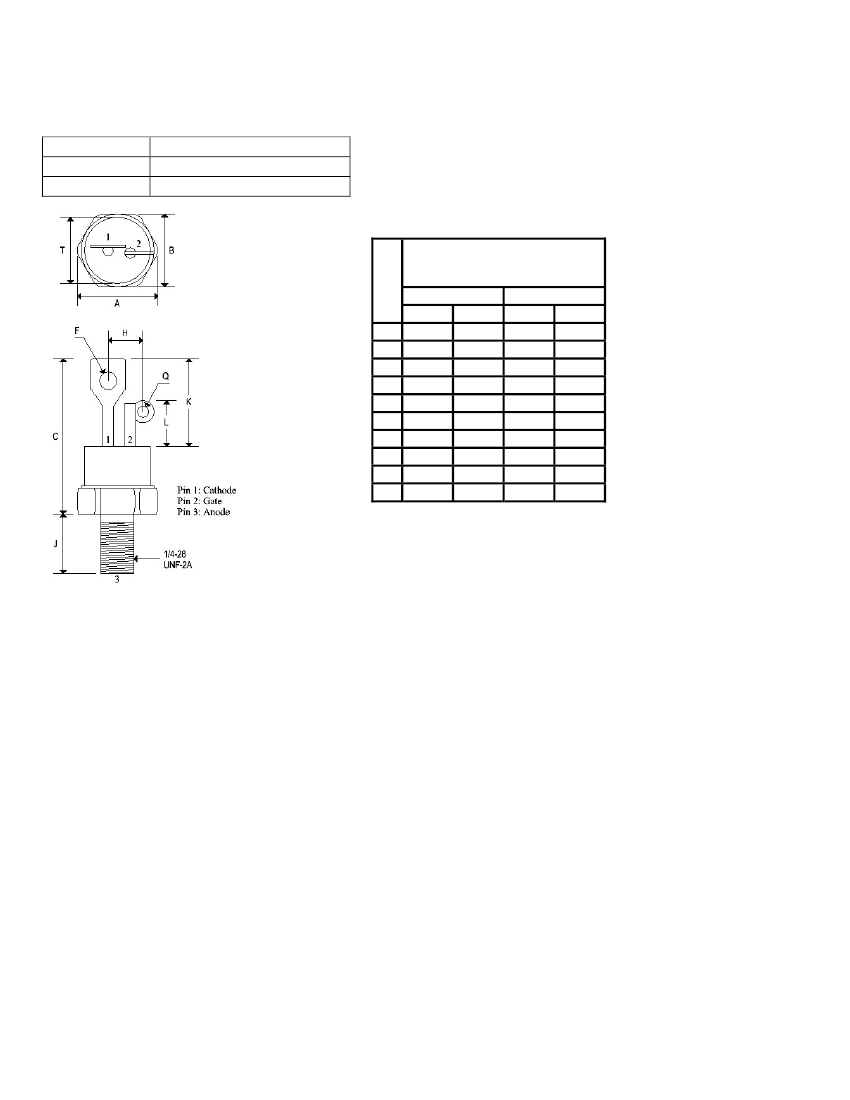

TO-48
Symbol
R
ӨJC
Typical
1
1.1
Maximum
1.5
1.6
Unit
°C/W
ELECTRICAL CHARACTERISTICS
(T
C
= 25°C)
Characteristic
Peak forward or reverse blocking current
(Rated V
DRM
or V
RRM
, gate open)
T
J
= 25°C
T
J
= 100°C

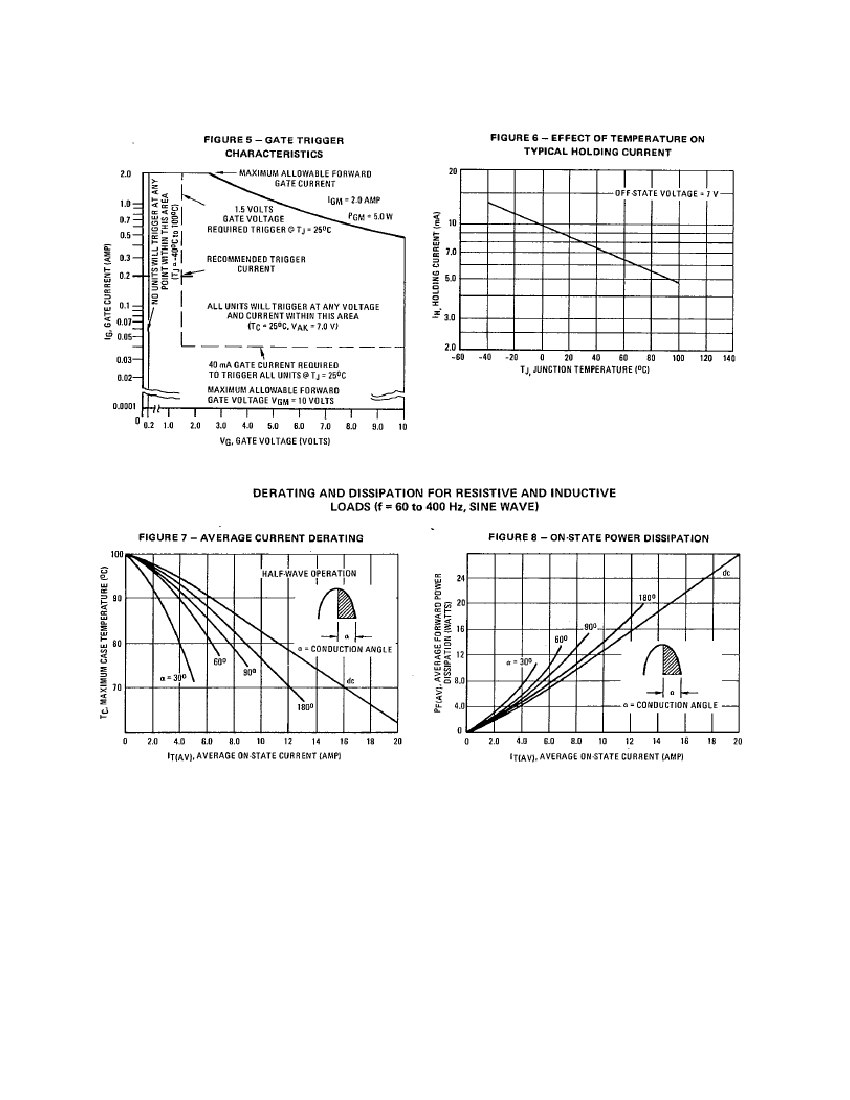

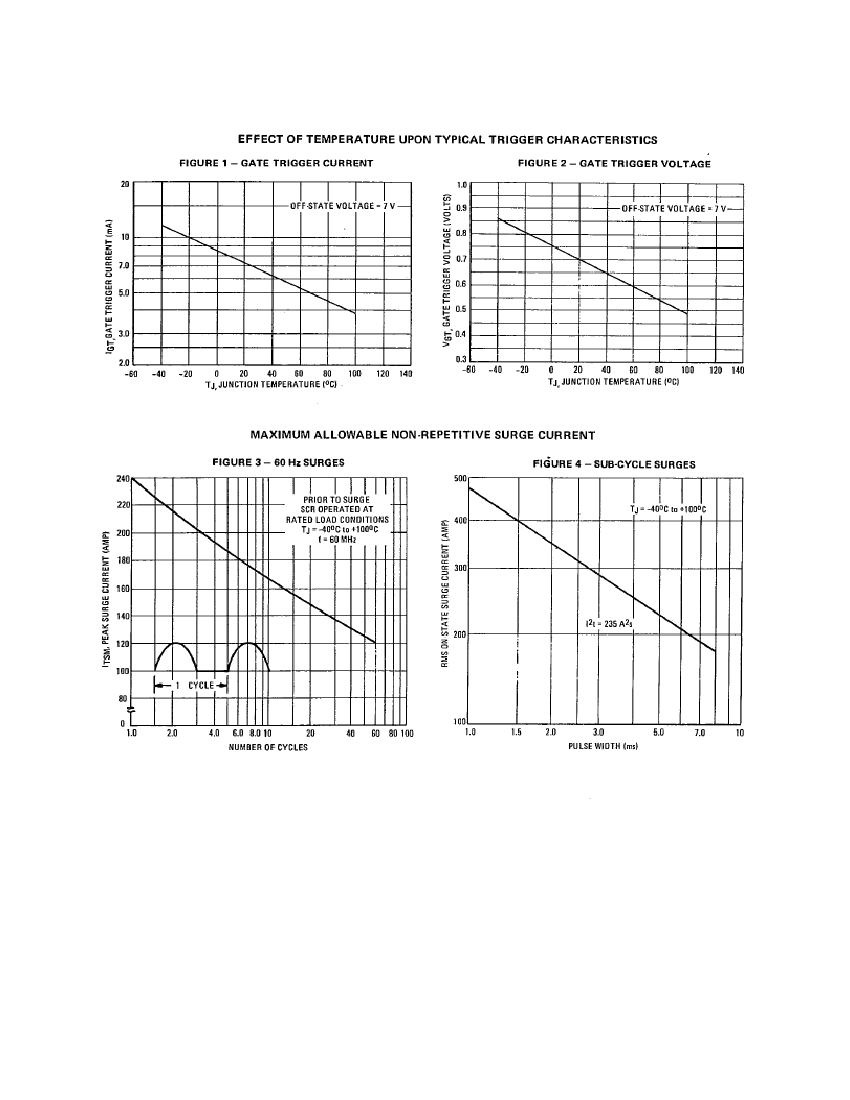

Gate trigger current (continuous dc)
(V
D
= 7Vdc, R
L
= 100Ω)
(V
D
= 7Vdc, R
L
= 100Ω, TC = -40°C)
Symbol
Min.
Max.
Unit
I
DRM,
I
RRM
-
-
-
-
10
5
40
75
µA
mA
mA
I
GT
144 Market Street
Kenilworth NJ 07033 USA
phone +1.908.245-7200
fax +1.908.245-0555
sales@digitroncorp.com
www.digitroncorp.com
Rev. 20130118
