PLEDDC120W-171 Overview

Flicker-Free LED Drivers

Preview

Download Datasheet

View All

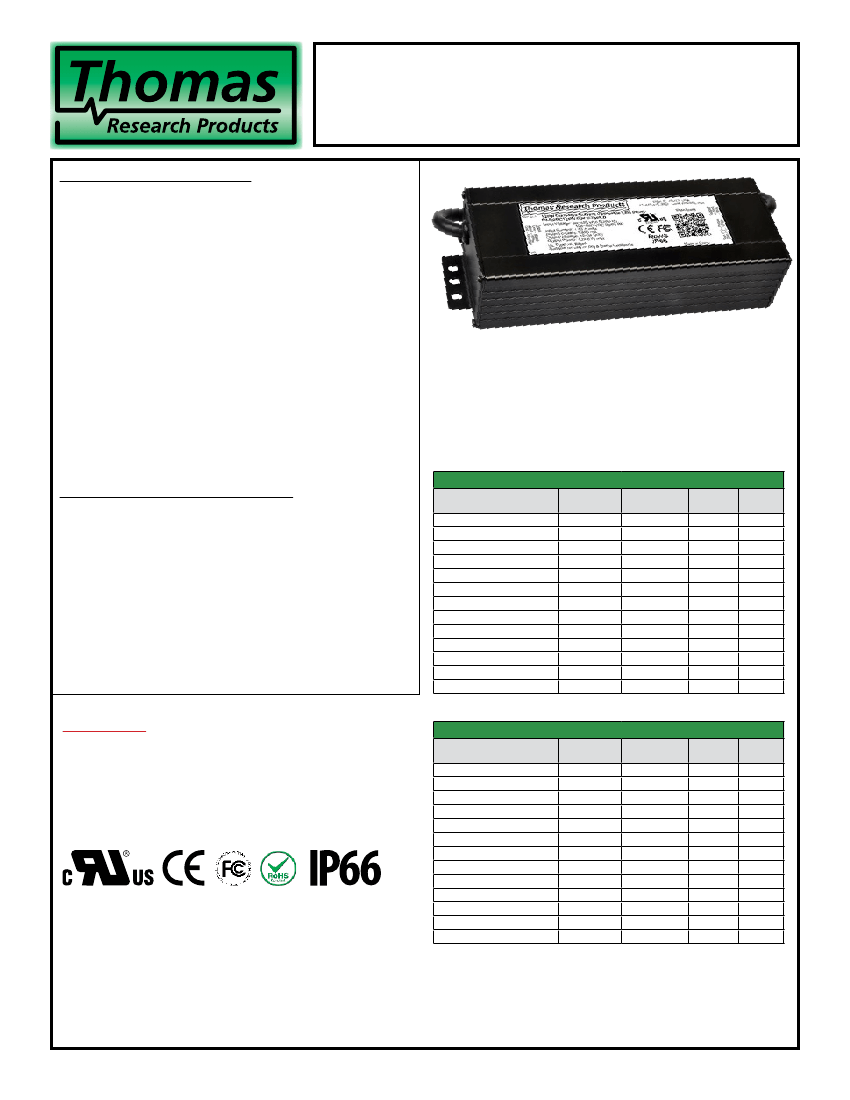

PLEDDC-120W Series, Fixed Output & Dimmable

AC or DC Input

Flicker-Free LED Drivers

Constant Current & Constant Voltage with Isolation

Black Magic Thermal Advantage™ Aluminum Housing

Electrical Specifications

Input Voltage Range:

Frequency:

Power Factor:

Inrush Current:

Input Current:

Maximum Power:

Line Regulation:

Load Regulation:

THD:

Ripple & Noise:

(Vpk-pk)

Ripple:

(Ipk-pk)

Start-up Time:

Leakage Current:

Hold Up Time:

Output Protection:

100-277 Vac Nom. (90-305 V Min/Max),

108-250 Vdc

50/60 Hz Nom. (47-63 Hz Min/Max)

>0.90 @ > 70% load, 120-277V

<30 Amps max @ 277 Vac, cold start, full load

0.60 Amps max @ 230 Vac, 1.10 A max @ 120 Vac

120W

± 3%

± 4%

< 20% @ > 70% load, 120-277V

5% Vo max @ 20 MHz BW, Full load output

in parallel with 0.1 μF ceramic & 10 μF Electrolytic

5% Io max @ 20 MHz BW, Full load output

in parallel with 0.1 μF ceramic & 10 μFElectrolytic.

120 Hz component (Flicker Free)

150mS typical @ Full Load, 120Vac/60Hz (1000mS max)

0.68 mA max @ 120Vac, 0.75 mA max @ 277Vac

30mS typical @ Full Load, 277Vac

Over-Voltage, Over-Current, and Short Circuit

(reset by power cycling)

• Total Power: 120 Watts

• Input Voltage: 100-277 Vac Nom. or 108-250 Vdc

• UL Dry & Damp Location Rated

• IP66 & NEMA6

• High Power Factor

• UL Type HL Rated for Hazardous Locations

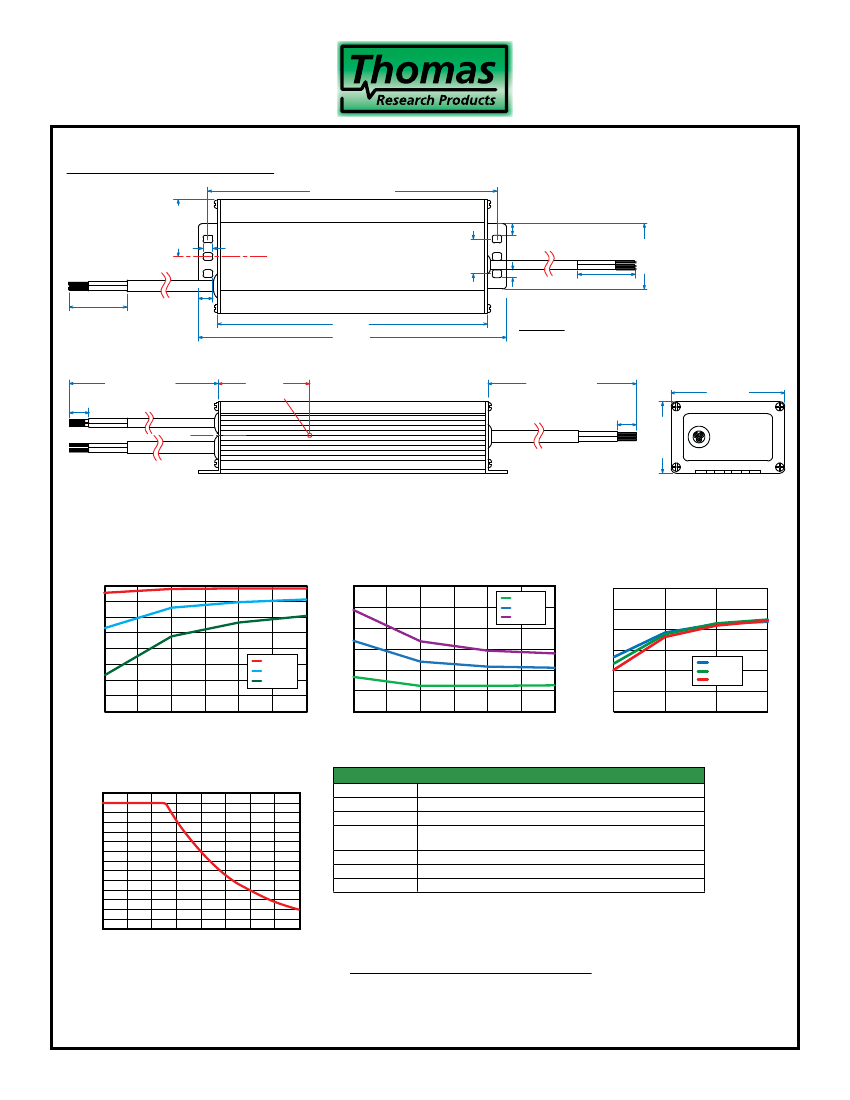

Environmental Specifications

Minimum Starting Temp:

Maximum Case Temp.

Storage Temperature:

Humidity:

Cooling:

Vibration Frequency:

Sound Rating:

MTBF:

EMC:

Impact Resistance:

Weight:

-30ºC

90°C

-40ºC to +85ºC

5% to 95%

Convection

5-55 Hz/2g, 30 minutes

Class A

280,000 Hours at full load and 40ºC ambient conditions

per MIL-217F Notice 2

FCC 47CFR Part 15 Class B compliant

1g/s

24.4 oz (690 grams)

Constant Current Versions - Product Specifications

Model Number

PLEDDC120W-343-C0350-XX

PLEDDC120W-266-C0450-XX

PLEDDC120W-171-C0700-XX

PLEDDC120W-114-C1050-XX

PLEDDC120W-086-C1400-XX

PLEDDC120W-068-C1750-XX

PLEDDC120W-057-C2100-XX

PLEDDC120W-049-C2450-XX

PLEDDC120W-043-C2800-XX

PLEDDC120W-038-C3150-XX

PLEDDC120W-034-C3500-XX

PLEDDC120W-028-C4200-XX

PLEDDC120W-024-C5000-XX

Output Current Output Voltage Max Output Typical

(mA ±5%)

Range

(Vdc)

Power

(W)

Efficiency

350

450

700

1050

1400

1750

2100

2450

2800

3150

3500

4200

5000

114-343

89-266

57-171

38-114

29-86

23-68

19-57

17-49

15-43

13-38

12-34

10-28

8-24

120

92%

91%

90%

89%

-XX

indicates dimming options are available. See options at left. Blank = fixed current output

Ordering Options:

-D:

0-10V & Resistance dimmable models dim 100-10%. Two extra wires on the output

side (+Purple/-Gray). Compatible with most quality 0-10V wall dimmers. See page 3.

Constant Voltage Versions - Product Specifications

Model Number

PLEDDC120W-024

PLEDDC120W-028

PLEDDC120W-034

PLEDDC120W-038

PLEDDC120W-043

Output Voltage Output Current Max Output Typical

(Vdc ±5%)

Range

(mA)

Power

(W)

Efficiency

114

171

266

343

1250-5000

1050-4200

875-3500

788-3150

700-2800

613-2450

525-2100

438-1750

350-1400

263-1050

175-700

113-450

88-350

120

89%

90%

91%

92%

-PD: PWM Dimmable models. Two extra wires on the output side(+Purple/-Gray). Dims

via positive 10% to 100% Duty Cycle, 200Hz to 1KHz, 0-10V Pulse. See page 4.

Sign Components Manual

PLEDDC120W-049

PLEDDC120W-057

PLEDDC120W-068

PLEDDC120W-086

PLEDDC120W-114

PLEDDC120W-171

PLEDDC120W-266

PLEDDC120W-343

E332160

Note:

LED drivers are designed and intended to operate LED loads only.

Non-LED loading may be outside the specified design limits of our

LED drivers, and therefore cannot be covered by any warranty.

If you desire to use our LED drivers to operate non-LED loads

please contact us to discuss compatibility.

Specifications subject to change without notice.

Rev 8-26-15

Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
