DATA SHEET
Solid State Relay
OCMOS FET
PS7801K-1A
4-PIN ULTRA SMALL FLAT-LEAD, LOW OUTPUT CAPACITANCE (1.6 pF),
1-ch Optical Coupled MOS FET
−NEPOC
Series−
DESCRIPTION
The PS7801K-1A is a low output capacitance solid state relay containing a GaAs LED on the light emitting side
(input side) and MOS FETs on the output side.
An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 50%
compared with the PS72xx series.
It is suitable for high-frequency signal control, due to its low off-state leakage current and low output capacitance.
FEATURES
• Ultra small flat-lead package (4.2 (L)
×
2.5 (W)
×
1.85 (H) mm)
• Low output capacitance (C
out
= 1.6 pF TYP.)
• Low off-state leakage current (I
Loff
= 0.02 nA TYP.)
• Break down voltage (V
L
= 80 V)
• High speed turn-on time (t
on
= 0.06 ms TYP.)
• 1 channel type (1 a output)
• Designed for AC/DC switching line changer
• Low offset voltage
<R>
• Ordering number of taping product: PS7801K-1A-F3 (3 500 pcs/reel)
• Pb-Free product
• Safety standards
<R>
• UL approved: No. E72422
1
2
PIN CONNECTION
(Top View)
4
3
1. LED Anode
2. LED Cathode
3. MOS FET
4. MOS FET
APPLICATIONS
• Measurement equipment
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. PN10590EJ02V0DS (2nd edition)
Date Published October 2008 NS
Printed in Japan
The mark <R> shows major revised points.
2006, 2008
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PS7801K-1A
PACKAGE DIMENSIONS (UNIT: mm)
2.5±0.3
4
3
0.2 MAX.
4.2±0.2
N
0.2±0.1
1
2
3.0 MAX.
1.85±0.05
0.15
+0.1
–0.05
4.6±0.2
3.6
+0.3
–0.4
0.4±0.1
1.27
0.2±0.1
<R>
MARKING EXAMPLE
Last number of
type No. : 1K
*1
1K
N
801
Bar
: Pb-Free
An initial of "NEC"
Assembly lot
No.1 pin mark
(Nicked corner)
8 01
(Marking details)
Week assembled
Year assembled
*1
The marking corresponds to the last two digits
of the part number below.
PS7801K-1A
2
Data Sheet PN10590EJ02V0DS
0.36
PS7801K-1A
<R>
ORDERING INFORMATION
Part Number
PS7801K-1A
PS7801K-1A-F3
Order Number
PS7801K-1A-A
PS7801K-1A-F3-A
Solder Plating
Specification
Pb-Free
Packing Style
50 pcs (Tape 50 pcs cut)
Embossed Tape 3 500 pcs/reel
Safety Standard
Approval
Standard products
(UL approved)
Application
*1
Part Number
PS7801K-1A
*1
For the application of the Safety Standard, following part number should be used.
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Parameter
Diode
Forward Current (DC)
Reverse Voltage
Power Dissipation
Peak Forward Current
MOS FET
Break Down Voltage
Continuous Load Current
Pulse Load Current
*2
*1
Symbol
I
F
V
R
P
D
I
FP
V
L
I
L
I
LP
Ratings
50
5.0
50
1
80
40
80
Unit
mA
V
mW
A
V
mA
mA
(AC/DC Connection)
Power Dissipation
Isolation Voltage
*3
P
D
BV
P
T
T
A
T
stg
250
500
300
−40
to +85
−40
to +100
mW
Vr.m.s.
mW
°C
°C
Total Power Dissipation
Operating Ambient Temperature
Storage Temperature
*1
PW = 100
μ
s, Duty Cycle = 1%
*2
PW = 100 ms, 1 shot
*3
AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
RECOMMENDED OPERATING CONDITIONS (T
A
= 25°C)
Parameter
LED Operating Current
LED Off Voltage
Symbol
I
F
V
F
MIN.
2
0
TYP.
5
MAX.
20
0.5
Unit
mA
V
Data Sheet PN10590EJ02V0DS
3
PS7801K-1A
ELECTRICAL CHARACTERISTICS (T
A
= 25°C)
Parameter
Diode
Forward Voltage
Reverse Current
MOS FET
Off-state Leakage Current
Output Capacitance
Coupled
LED On-state Current
On-state Resistance
Turn-on Time
Turn-off Time
*1, 2
Symbol
V
F
I
R
I
Loff
C
out
I
Fon
R
on
t
on
t
off
R
I-O
C
I-O
I
F
= 5 mA
V
R
= 5 V
V
D
= 80 V
Conditions
MIN.
TYP.
1.1
MAX.
1.4
5.0
Unit
V
μ
A
nA
pF
mA
Ω
ms
0.02
1.6
1.0
3.5
2.0
V
D
= 0 V, f = 1 MHz, t
<
1 s
I
L
= 40 mA
I
F
= 5 mA, I
L
= 40 mA, t
≤
10 ms
I
F
= 5 mA, V
O
= 5 V, R
L
= 500
Ω,
PW
≥
10 ms
V
I-O
= 0.5 kV
DC
V = 0 V, f = 1 MHz
10
9
17.5
0.06
0.02
25
0.25
0.5
*1, 2
Isolation Resistance
Isolation Capacitance
Ω
0.3
pF
*1
Test Circuit for Switching Time
I
F
Pulse Input
V
L
Input
50%
0
V
O
= 5 V
Input monitor
R
in
R
L
V
O
monitor
Output
90%
10%
t
on
t
off
*2
The turn-on time and turn-off time are specified as input-pulse width
≥
10 ms.
Be aware that when the device operates with an input-pulse width less than 10 ms, the turn-on time and turn-off
time will increase.
4
Data Sheet PN10590EJ02V0DS
PS7801K-1A
<R>

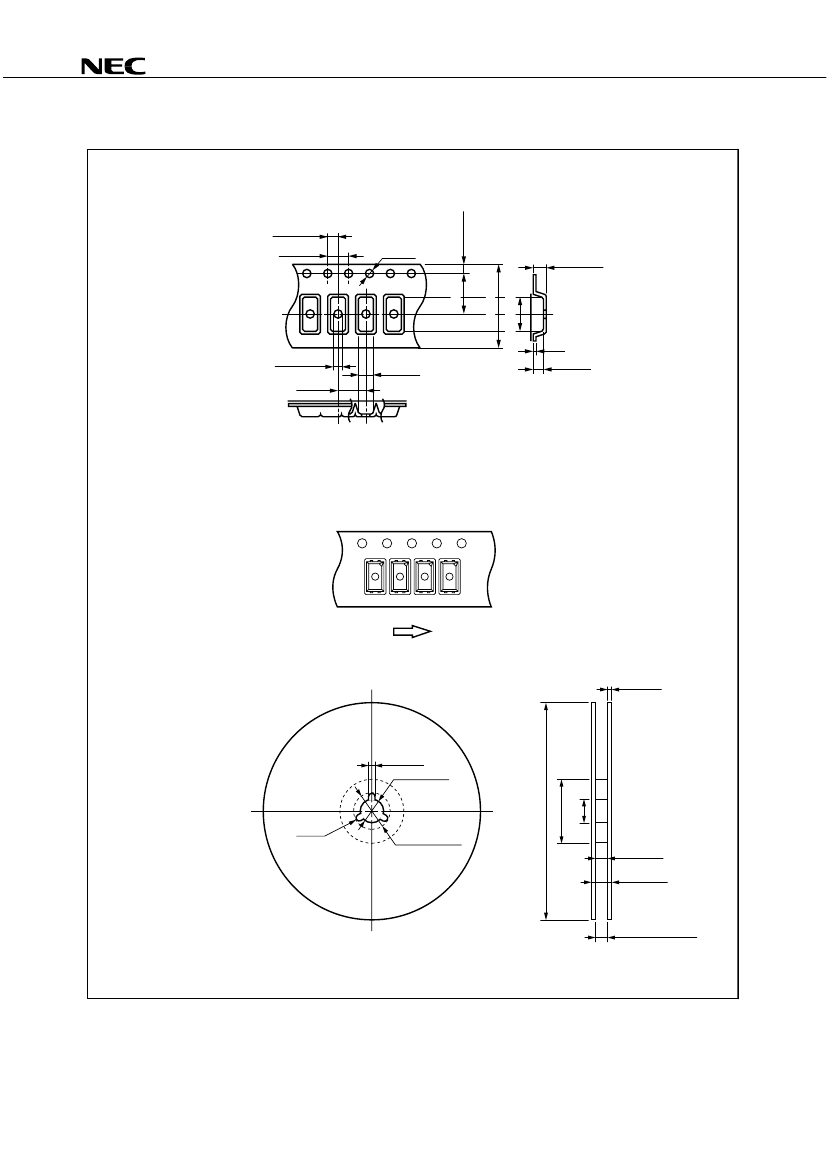

TAPING SPECIFICATIONS (UNIT: mm)
Outline and Dimensions (Tape)
2.0±0.05
4.0±0.1
1.5
+0.1
–0
1.75±0.1
2.9 MAX.
5.5±0.05
12.0±0.2
5.3±0.1
0.3
1.55±0.05
4.0±0.1
2.9±0.1
2.4±0.1
Tape Direction
PS7801K-1A-F3
N
N
N
N
Outline and Dimensions (Reel)
2.0±0.5
φ
330±2.0
φ
100±1.0
2.0±0.5
φ
13.0±0.2
R 1.0
φ
21.0±0.8
φ
13.0±0.2
13.5±1.0
17.5±1.0
Packing: 3 500 pcs/reel
11.9 to 15.4
Outer edge of
flange
Data Sheet PN10590EJ02V0DS
5
