TPS-70 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> TPS-70

TPS-70: Descriptionspecialty fuses 70a; CategoryCircuit protection; File Size36KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

TPS-70 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TPS-70	-	-	View	Buy Now

TPS-70 Overview

specialty fuses 70a

TPS-70 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Specialty Fuses
RoHS	In Transiti
Body Style	Cartridge Fuses
Current Rating	70 A
Voltage Rating DC	170 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Fast Blow
Fuse Size / Grou	Telepowe
Indicator Style	Without Indic
Dimensions	22.2 mm L x 14.3 mm D
Case Diamete	14.3 mm
Case Length	22.2 mm
Interrupt Rating	10 kA
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	10
Type	Fused Disconnect Fuse
Unit Weigh	15.876 g

Preview

Download Datasheet

View All

Bussmann

Telpower Fuses

1 to 70 Amps, 170 Volts DC

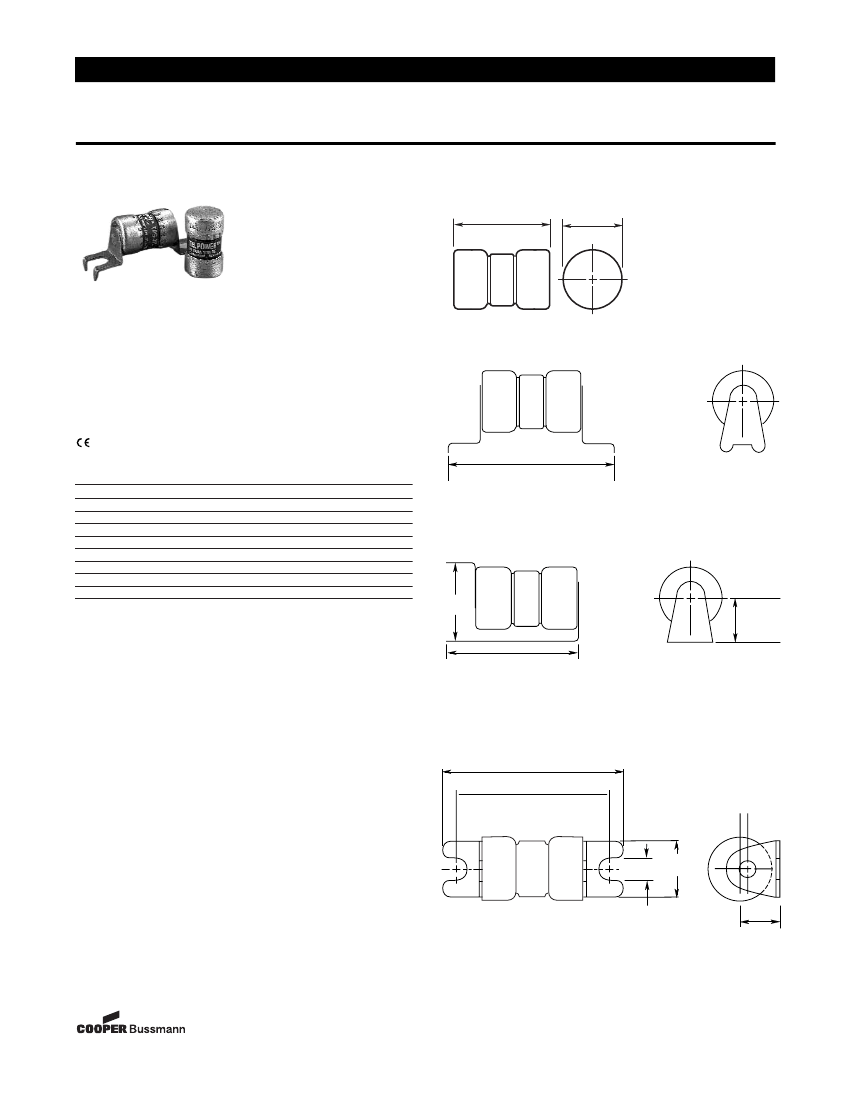

Dimensional Data

TPS-(AMP)

.88• (± .015)

(22.2mm) (± .38)

.56• (± .002)

(14.3mm) (± .05)

TPS

Catalog Symbol:

TPS

DC Power Distribution Fuses

Ampere Rating:

1 to 70A

Voltage Rating:

170Vdc

Interrupting Rating:

100,000A

Agency Information:

UL Recognized, File E56412, Guide JFHR2

TPS-(AMP)L

Catalog Numbers

TPS-1

TPS-1L

TPS-1LB

TPS-2

TPS-2L

TPS-3

TPS-3L

TPS-5

TPS-5L

TPS-6

TPS-6L

TPS-10

TPS-10L

TPS-15

TPS-15L

TPS-20

TPS-20L

TPS-25

TPS-25L

TPS-25V

TPS-30

TPS-30L

TPS-35

TPS-35L

TPS-40

TPS-40L

TPS-40V

TPS-50

TPS-50L

TPS-50V

TPS-60

TPS-60L

TPS-70

TPS-70L

TPS-70LB

—

1.76• ±.02

(44.65mm ± .51)

TPS-(AMP)V

0.74•

(18.69mm)

General Information:

• TELPOWER

fuses bring modern power fuse design to the

telecommunications industry.

• TELPOWER

fuse line is the first to be specifically designed

to meet the unique needs of DC Power Distribution

Systems.

• The U.L. Recognized ratings of 170Vdc and 100,000A

interrupting rating along with the fuse’s current-

limiting capability make this fuse ideal for overcurrent

protection on existing DC Distribution Systems.

• A unique BLUE label is used on all TELPOWER

fuses to

designate their DC capability.

• Circuit board applications available.

• Silver-plated brass ferrules.

• Glass melamine tube.

• For use with Bussmann Fused Disconnect Switch

15800.

• Spare Fuseholder: TPSFH-AS

Custom Designs

• Printed circuit board variations available.

.348•

(8.84mm)

1.261• ± .005

(32.03mm ± .13)

TPS-(AMP)LB

1.59• ± .02

(40.26mm ± .51)

1.35• ± .015

(34.16mm ± .38)

.500•

(12.70mm)

.190• ± .005*

(4.8mm ± .12)

*Recommend #8 Slotted Hex Washer

Head Machine Screw for mounting

.348•

(8.84mm)

4-23-03

SB03090

Form No. TPS

Page 1 of 2

Data Sheet: 5009
