KLKD.500T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> KLKD.500T

KLKD.500T: Descriptionindustrial & electrical fuses .5A 600vac 600vdc midget; CategoryCircuit protection Circuit protection; File Size184KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

KLKD.500T Overview

industrial & electrical fuses .5A 600vac 600vdc midget

KLKD.500T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	FAST
body height	38.1 mm
Body length or diameter	38.1 mm
Circuit protection type	ELECTRIC FUSE
physical size	38.1mm x 38.1mm
Rated breaking capacity	100000 A
Rated current	0.5 A
Rated voltage	600 V
Guideline	CE; CSA; UL
Terminal shape	END CAP

Preview

Download Datasheet

View All

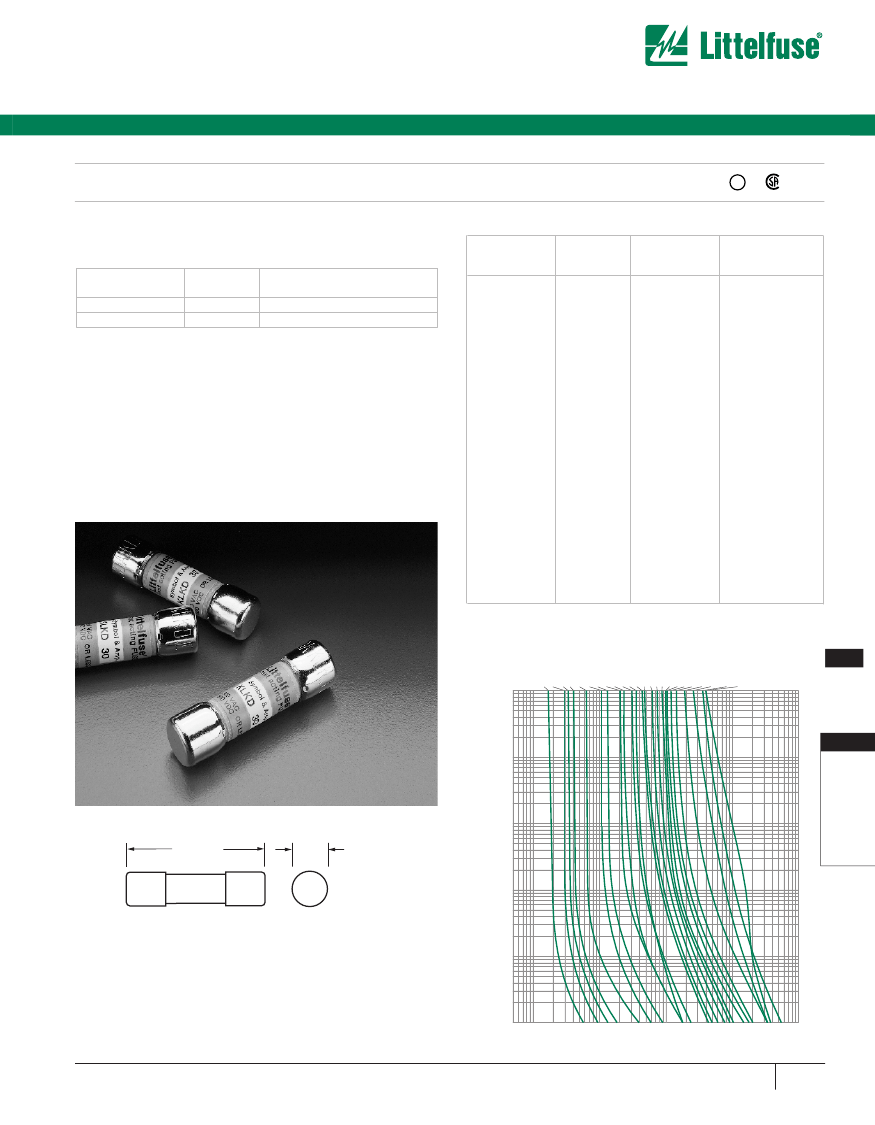

Axial Lead and Cartridge Fuses

Midget

AC/DC

Fast-Acting Type KLKD Series

Fast-acting fuses designed for use in circuits with DC fault currents up to

10,000 amperes. Same AC interrupting ratings as KLK series.

QPL

ORDERING INFORMATION:

Cartridge

Catalog

Number

KLK D

.100

KLK D

.125

KLK D

.200

KLK D

.250

KLK D

.300

KLK D

.500

KLK D

.750

KLK D

001.

KLK D

01.5

KLK D

002.

KLK D

02.5

KLK D

003.

KLK D

03.5

KLK D

004.

KLK D

005.

KLK D

006.

KLK D

007.

KLK D

008.

KLK D

009.

KLK D

010.

KLK D

012.

KLK D

015.

KLK D

020.

KLK D

025.

KLK D

030.

Ampere

Rating

.100

.125

.200

.250

.300

.500

.750

1.5

2.5

3.5

AC Voltage

Rating

600

Nominal

Resistance

Cold Ohms

85.5

65.0

30.9

22.0

16.2

8.16

.402

.252

.134

.124

.0989

.0773

.0613

.0511

.0363

.0261

.0205

.0194

.0166

.0128

.0103

.0078

.0045

.00329

.002816

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

135%

200%

Ampere

Rating

1/10 –30

1/10–30

Opening

Time

1 hour,

Maximum

2 minutes,

Maximum

AGENCY APPROVALS:

Listed by Underwriters Laboratories and

Certified by CSA from

through 30 amperes.

INTERRUPTING RATINGS:

10,000 amperes at 600 VDC.

100,000 amperes (capable of 200,000) at 600VAC.

FUSES TO MIL SPEC:

See

KLK Series

for QPL fuses with

DC ratings.

PATENTED

Average Time Current Curves

1/8A

2/10A

1/4A

3/10A

1/2A

3/4A

1 1/2A

2 1/2A

3 1/2A

10A

12A

15A

20A

25A

30A

AXIAL LEAD

AND CAR-

TRIDGE

1000

100

38.1

(1.50")

10.31

(.406")

TIME IN SECONDS

0.1

0.01

0.1

CURRENT IN AMPERES

100

1000

w w w. l i t t e l f u s e . c o m

463

AXIAL LEAD AND

CARTRIDGE FUSES
