ANL-130 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> ANL-130

ANL-130: Descriptionspecialty fuses 32vac 6ka 130a non time delay; CategoryCircuit protection; File Size23KB，1 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

ANL-130 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ANL-130	-	-	View	Buy Now

ANL-130 Overview

specialty fuses 32vac 6ka 130a non time delay

ANL-130 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Specialty Fuses
RoHS	In Transiti
Body Style	Flat Body Blade Fuses
Current Rating	130 A
Voltage Rating AC	32 V
Voltage Rating DC	80 V
Mounting Style	Stud
Termination Style	Bolt Dow
Fuse Type	Time Delay / Slow Blow
Indicator Style	Element Window
Dimensions	81 mm L x 22.2 mm W
Case Length	81 mm
Case Width	22.2 mm
Interrupt Rating	6000 Amps
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	5
Type	Low Voltage Supplementary Limiter Fuse
Unit Weigh	13.608 g

Preview

Download Datasheet

View All

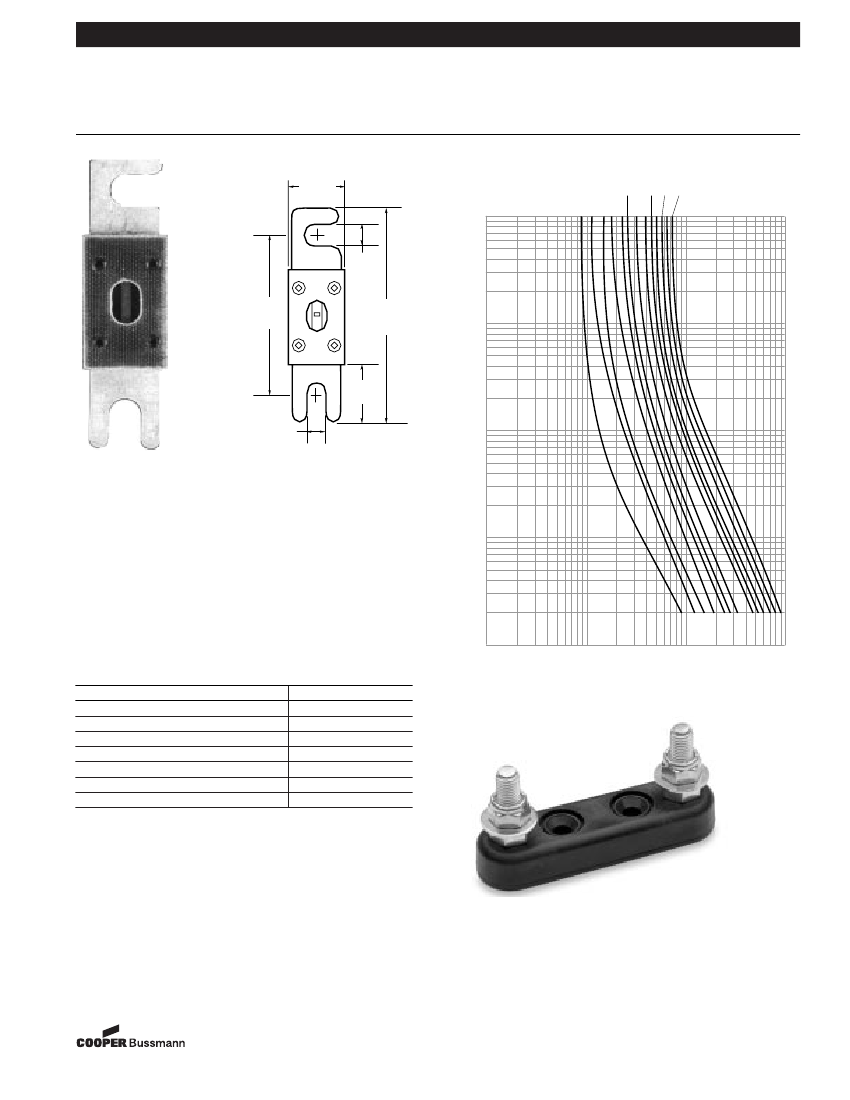

Bussmann

Low Voltage Limiter

Non-Time-Delay

Dimensional Data

0.88"

(±0.005)

(22.2mm)

ANL

Time-Current Characteristic Curves–Average Melt

100

130

150

200

225 275

325

400 350

500

100

AMPERE

RATING

0.34"

(8.7mm)

2.44"

(±0.015)

(61.0mm)

3.19"

(±0.015)

(81.0mm)

0.88"

(22.2mm)

TIME IN SECONDS

0.34"

(±0.005)

(8.7mm)

Catalog Symbol:

ANL

Non-Time Delay

Ampere Rating:

35 to 750A

Voltage Rating:

32Vac (or less)

80Vdc (or less)

Interrupting Rating:

6,000A ac,

2,700A dc

Agency Information:

UL Recognized, (600, 675 and 750A only)

Guide JFHR2, File E56412

SAE J1171 (35-500A): Ignition Protected

Electrical Ratings (Catalog Symbol and Amperes)

32Vac IR 6000A

ANL-35

ANL-40

ANL-50

ANL-60

ANL-80

ANL-100

ANL-125

ANL-130

ANL-150

ANL-175

ANL-200

ANL-225

ANL-250

ANL-275

ANL-300

ANL-325

ANL-350

ANL-400

ANL-500

—

32Vac IR 2700A

ANL-600

ANL-675

ANL-750

—

1,000

CURRENT IN AMPERES

General Information:

• Isolates faults in equipment systems such as lifttrucks and

other battery operated systems.

• Silver-plated copper link.

• Link element visible through mica window.

Fuseblock - 4164

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is

intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change

design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-

tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

1-23-04

SB04011

Form No. ANL

Page 1 of 1

Data Sheet: 2024

10,000

100

.01

ANL-130 Related Products

	ANL-130	ANL-250	ANL-35
Description	specialty fuses 32vac 6ka 130a non time delay	specialty fuses 32vac 6ka 250a non time delay	specialty fuses 32vac 6ka 35a non time delay
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Specialty Fuses	Specialty Fuses	Specialty Fuses
RoHS	In Transiti	In Transiti	In Transiti
Body Style	Flat Body Blade Fuses	Flat Body Blade Fuses	Flat Body Blade Fuses
Current Rating	130 A	250 A	35 A
Voltage Rating AC	32 V	32 V	32 V
Voltage Rating DC	80 V	80 V	80 V
Mounting Style	Stud	Stud	Stud
Termination Style	Bolt Dow	Bolt Dow	Bolt Dow
Fuse Type	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow
Indicator Style	Element Window	Element Window	Element Window
Dimensions	81 mm L x 22.2 mm W	81 mm L x 22.2 mm W	81 mm L x 22.2 mm W
Case Length	81 mm	81 mm	81 mm
Case Width	22.2 mm	22.2 mm	22.2 mm
Interrupt Rating	6000 Amps	6000 Amps	6000 Amps
Packaging	Bulk	Bulk	Bulk
Produc	Specialty Fuses	Specialty Fuses	Specialty Fuses
Factory Pack Quantity	5	5	5
Type	Low Voltage Supplementary Limiter Fuse	Low Voltage Supplementary Limiter Fuse	Low Voltage Supplementary Limiter Fuse
Unit Weigh	13.608 g	22.680 g	13.608 g
