High-Performance
8-Bit CMOS Single-Chip Microcontroller
Preliminary
SAB 80C515/80C515-16
SAB 80C535/80C535-16
SAB 80C515/80C535
CMOS microcontroller with factory mask-programmable ROM
CMOS microcontroller for external ROM
q
Boolean processor
q
Most instructions execute in 1
µ
s (750 ns)
q
4
µ
s (3
µ
s) multiply and divide
q
External memory expandable up to
q
q
q
q
q
q
q
8 K
×
8 ROM (SAB 80C515 only)
q
256
×
8 RAM
q
Six 8-bit I/O ports, one input port for
q
q
q
q
q
q
digital or analog input
Three 16-bit timer/counters
Highly flexible reload, capture, compare
capabilities
Full-duplex serial channel
Twelve interrupt vectors, four priority
levels
8-bit A/D converter with 8 multiplexed
inputs and programmable internal
reference voltages
16-bit watchdog timer
128 Kbytes
Backwardly compatible with SAB 8051
Functionally compatible with SAB 80515
Idle and power-down mode

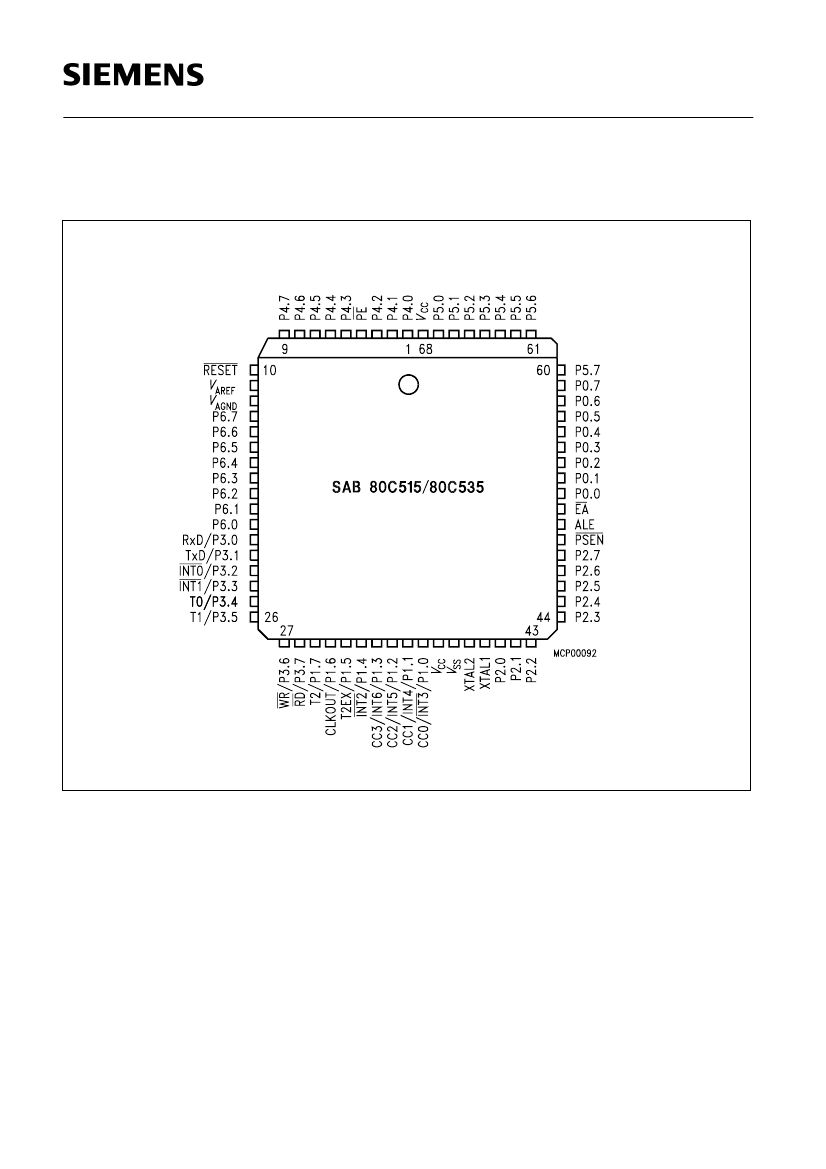

Plastic leaded chip carrier package:
P-LCC-68
Plastic Metric Quad Flat Package
P-MQFP-80
Two temperature ranges available:
0 to 70 ˚C
(for 12, 16, 20 MHz)
– 40 to 85 ˚C (for 12, 16 MHz)
The SAB 80C515/80C535 is a powerful member of the Siemens SAB 8051 family
of 8-bit microcontrollers. It is designed in Siemens ACMOS technology and is functionally
compatible with the SAB 80515/80535 devices designed in MYMOS technology.
The SAB 80C515/80C535 is a stand-alone, high-performance single-chip microcontroller
based on the SAB 8051/80C51 architecture. While maintaining all the SAB 80C51 operating
characteristics, the SAB 80C515/80C535 incorporates several enhancements which
significantly increase design flexibility and overall system performance.
In addition, the low-power properties of Siemens ACMOS technology allow applications where
power consumption and dissipation are critical. Furthermore, the SAB 80C515/80C535 has
two software-selectable modes of reduced activity for further power reduction: idle and power-
down mode.
The SAB 80C535 is identical with the SAB 80C515 except that it lacks the on-chip program
memory. The SAB 80C515/80C535 is supplied in a 68-pin plastic leaded chip carrier package
(P-LCC-68) or in a plastic metric quad flat package (P-MQFP-80).
There are versions for 12, 16 and 20 MHz operation and for 16 MHz operation and for extended
temperature ranges – 40 to 85 ˚C. Versions for extended temperature range – 40 to + 110 ˚C
are available on request.
Semiconductor Group
1
02.96
SAB 80C515/80C535
Ordering Information
Type
SAB 80C515-N
SAB 80C535-N
SAB 80C515-N-T40/85
Ordering
Code
Q67120-DXXXX
Q67120-C0508
Q67120-DXXXX
Package
P-LCC-68
P-LCC-68
P-LCC-68
Description
8-Bit CMOS Microcontroller
with mask-programmable ROM,
12 MHz
for external memory, 12 MHz
with mask-programmable ROM,
12 MHz
ext. temperature – 40 to + 85 ˚C
for external memory, 12 MHz
ext. temperature – 40 to + 85 ˚C
with mask-programmable ROM,
16 MHz
for external memory, 16 MHz
for external memory, 16 MHz
ext. temperature – 40 to + 85 ˚C
for external memory, 20 MHz
for external memory, 12 MHz
with mask-programmable ROM,
12 MHz
for external memory, 12 MHz
ext. temperature – 40 to + 85 ˚C
with mask-programmable ROM,
12 MHz
ext. temperature – 40 to + 85 ˚C
SAB 80C535-N-T40/85
SAB 80C515-16-N
SAB 80C535-16-N
SAB 80C535-16-N-
T40/85
SAB 80C535-20-N
SAB 80C535-M
SAB 80C515-M
SAB 80C535-M-T40/85
SAB 80C515-M-T40/85
Q67120-C0510
Q67120-DXXXX
Q67120-C0509
Q67120-C0562
Q67120-C0778
Q67120-C0857
Q67120-DXXXX
Q67120-C0937
Q67120-DXXXX
P-LCC-68
P-LCC-68
P-LCC-68
P-LCC-68
P-LCC-68
P-MQFP-80
P-MQFP-80
P-MQFP-80
P-MQFP-80
Notes:
Versions for extended temperature range – 40 to + 110 ˚C on request.
The ordering number of ROM types (DXXXX extension) is defined after program release
(verification) of the customer.
