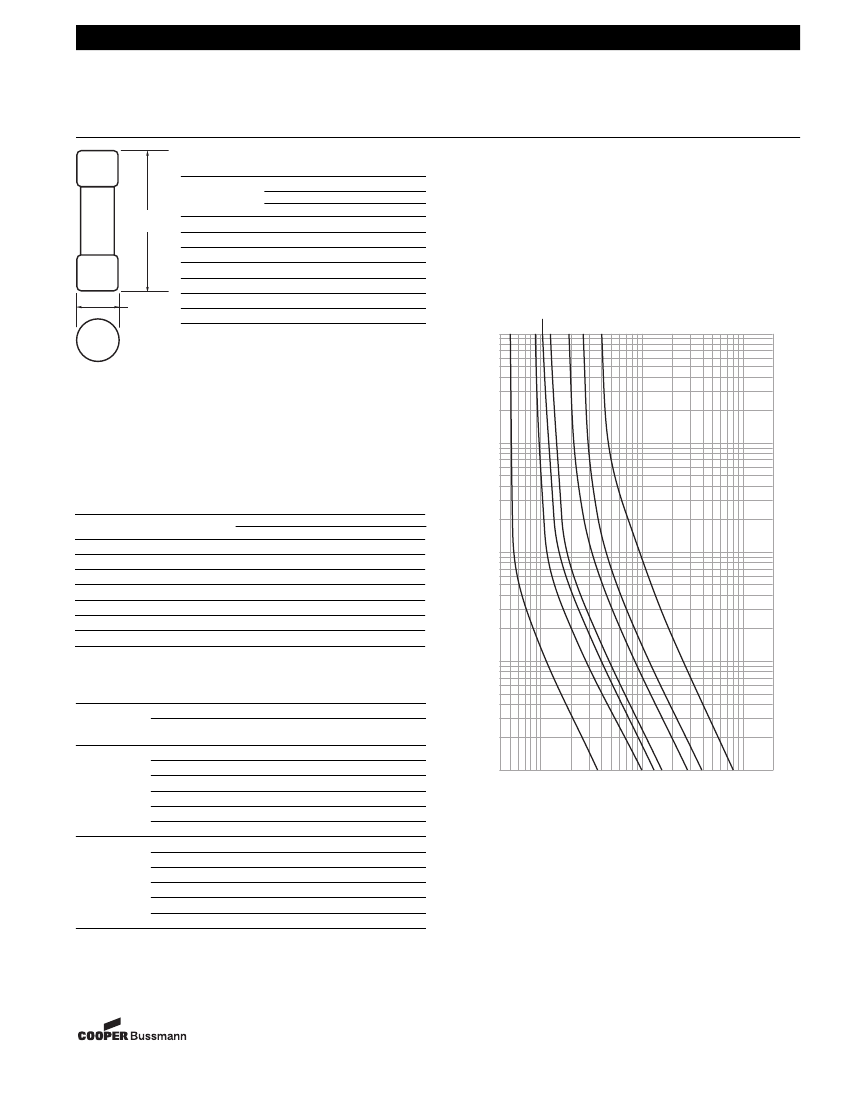

Preview

BK/SFE-20: Descriptioncartridge fuses 32v 20a fast acting automotive glass; CategoryCircuit protection; File Size13KB，1 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

BK/SFE-20 Overview

cartridge fuses 32v 20a fast acting automotive glass

BK/SFE-20 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	N
Body Style	Cylindrical
Current Rating	20 A
Voltage Rating AC	32 V
Voltage Rating DC	32 V
Mounting Style	Holder / Cli
Fuse Type	Fast Blow
Fuse Size / Grou	3AG (6.3 mm x 32 mm)
Dimensions	31.7 mm L x 6.35 mm D
Case Diamete	6.35 mm
Case Length	31.7 mm
Indicator Style	Without Indic
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	100
Termination Style	Cli
Type	Automotive Glass Fuse
Unit Weigh	2.268 g

Preview

Download Datasheet

View All

Bussmann

®

Automotive Glass Fuses

Fast-Acting

32 Volts, 4–30 Amps

Dimensional Data

32 Volts

Catalog

Symbol &

Amps

A

SFE-4

SFE-6

SFE-7-1/2

SFE-9

SFE-14

0.25"

SFE-20

SFE-30

“A”

Length

Inches

5/8

3/4

7/8

1-1/16

1-1/4

1-7/16

SFE

mm

15.9

19.0

22.2

27.0

31.7

36.5

•

For automotive circuits.

Visual indicating glass tubing.

Made to SAE specifications.

Physical size varies with electrical rating of fuse to prevent

over-fusing.

• For mounting in in-line holders, and 1/4” clips.

Time-Current Characteristics–Total Clear

7.5

14

20

30

AMPERE

RATING

4

6

100

CATALOG SYMBOL: SFE

FAST-ACTING

4 TO 30 AMPERES

32 VOLTS OR LESS

U.L. LISTED

(GUIDE #FHXT, FILE #AU169)

Carton Quantity and Weight

Ampere

Ratings

SFE-4

SFE-6

SFE-7-1/2

SFE-9

SFE-14

SFE-20

SFE-30

* Weight per carton.

Carton

Qty

100

Weight*

Lbs.

0.73

0.75

0.80

0.82

0.87

1.60

Kg.

0.331

0.340

0.363

0.372

0.395

0.762

10

TIME IN SECONDS

1

.1

In-line Fuseholders

Catalog Number

Wire

Length

19”

(#14

Wire)

Fuse

SFE-20

SFE-14

SFE-9

SFE-7-1/2

SFE-6

SFE-4

SFE-20

8”

(#14

Wire)

SFE-14

SFE-9

SFE-7-1/2

SFE-6

Fuse &

Holder (w/leads)

HRJ

HRI

HRH

HRE

HRG

HRF

HMJ

HMI

HMH

HME

HMG

Holder Only

(No Leads)

*HHJ-A, HHJ-B

*HHI-A, HHI-B

HHH-A

HIG-A

HIR-A

*HDJ-A, HDJ-B

*HDI-A, HDI-B

—

CURRENT IN AMPERES

SFE-4

HMF

*-A: Crimp connections for #18 - #22 wire.

-B: Crimp connections for #12 - #16 wire.

The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to

clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any

products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-

ed, it should be tested by the user in all possible applications.

12-28-98

SB98107

Rev. A

Form No. SFE

Page 1 of 1

BIF Doc #2059

1,000

2,000

4

10

100

.01

9

BK/SFE-20 Related Products

	BK/SFE-20	BK/SFE-9	BK/SFE-4	BK/SFE-7-1/2
Description	cartridge fuses 32v 20a fast acting automotive glass	cartridge fuses 32v 9A fast acting automotive glass	cartridge fuses 32v 4A fast acting automotive glass	cartridge fuses 32v 7.5A fast acting automotive glass
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
RoHS	N	N	N	N
Body Style	Cylindrical	Cylindrical	Cylindrical	Cylindrical
Current Rating	20 A	9 A	4 A	7.5 A
Voltage Rating AC	32 V	32 V	32 V	32 V
Voltage Rating DC	32 V	32 V	32 V	32 V
Mounting Style	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	3AG (6.3 mm x 32 mm)	7AG (6.35 mm x 22 mm)	1AG (6.3 mm x 15.9 mm)	7AG (6.35 mm x 22 mm)
Dimensions	31.7 mm L x 6.35 mm D	22.2 mm L x 6.35 mm D	15.9 mm L x 6.35 mm D	22.2 mm L x 6.35 mm D
Case Diamete	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Case Length	31.7 mm	22.2 mm	15.9 mm	22.2 mm
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic
Packaging	Bulk	Bulk	Bulk	Bulk
Produc	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses
Factory Pack Quantity	100	100	100	100
Termination Style	Cli	Cli	Cli	Cli
Type	Automotive Glass Fuse	Automotive Glass Fuse	Automotive Glass Fuse	Automotive Glass Fuse
Unit Weigh	2.268 g	1.814 g	1.814 g	1.814 g
