TW-24-03-F-S-250-SM-P datasheet, PDF

Datasheet> All Categories > The connector> The connector> TW-24-03-F-S-250-SM-P

TW-24-03-F-S-250-SM-P: DescriptionBoard Connector, 24 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator; CategoryThe connector The connector; File Size603KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TW-24-03-F-S-250-SM-P Overview

Board Connector, 24 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator

TW-24-03-F-S-250-SM-P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	316056522
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.65
Other features	STAGGERED CONFIGURATION
body width	0.078 inch
subject depth	0.25 inch
body length	1.896 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
other instructions	HIGH TEMP 2MM SMT BOARD STACKING TERMINAL ASM
Filter function	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.1496 mm
Plating thickness	3u inch
Rated current (signal)	4.9 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

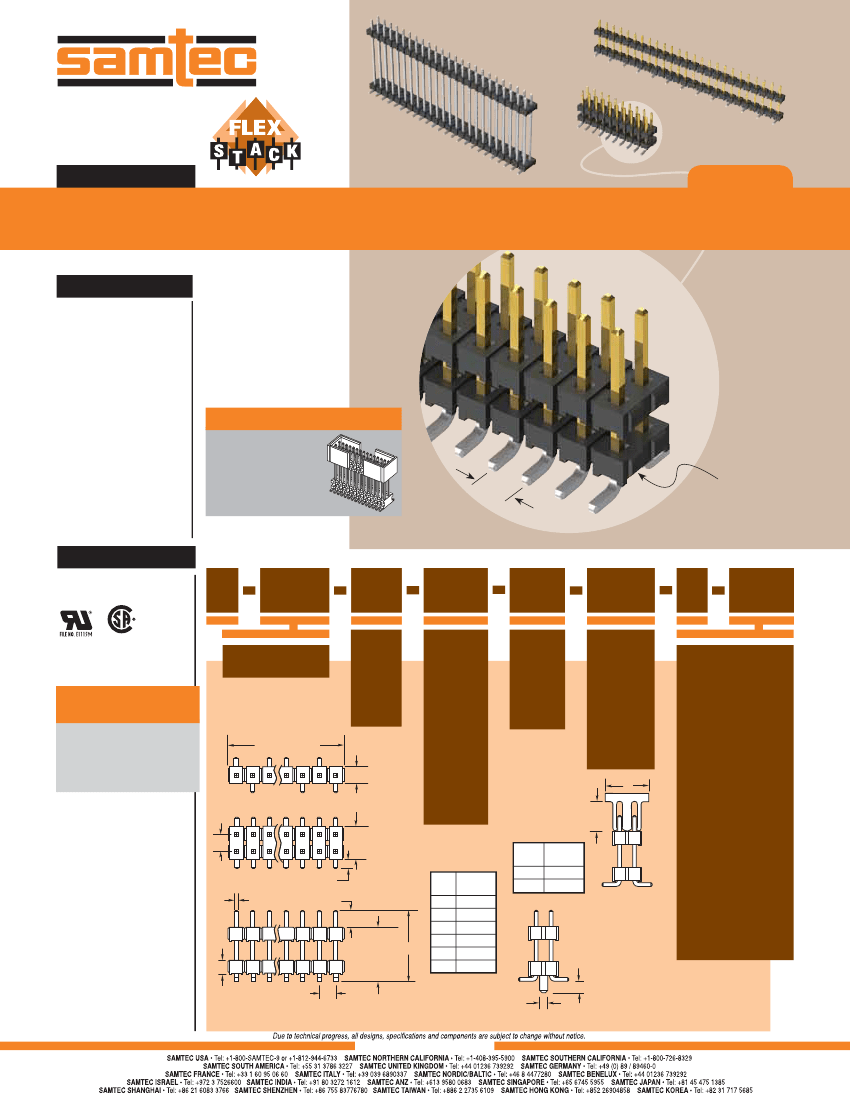

F-214

TW–25–02–F–S–260–SM

TW–10–04–L–D–300–SM

(2,00 mm) .0787"

TW–20–07–T–D–550–SM

TW SERIES

SMT BOARD STACKERS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?TW-SM

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Current Rating:

4.9 A per pin

(1 pin powered per row)

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

Mates with:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS, TCSD

Available with

optional

Pick & Place

Pads
