22-12-1071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-12-1071

22-12-1071: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size362KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

22-12-1071 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle

22-12-1071 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIDE-TO-SIDE STACKABLE
body width	0.13 inch
subject depth	0.094 inch
body length	0.677 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	3094
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

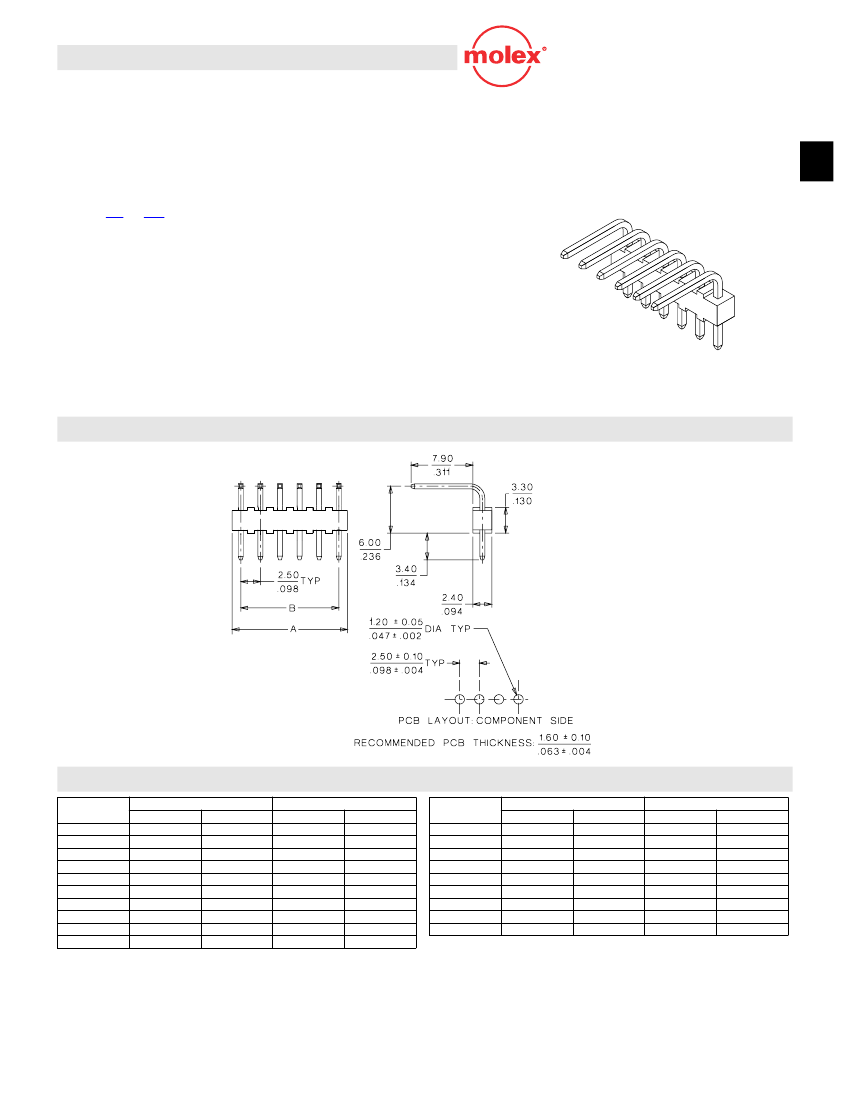

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 20 circuits

0.64 mm (.025") square wire pins

Stackable side-to-side and end-to-end

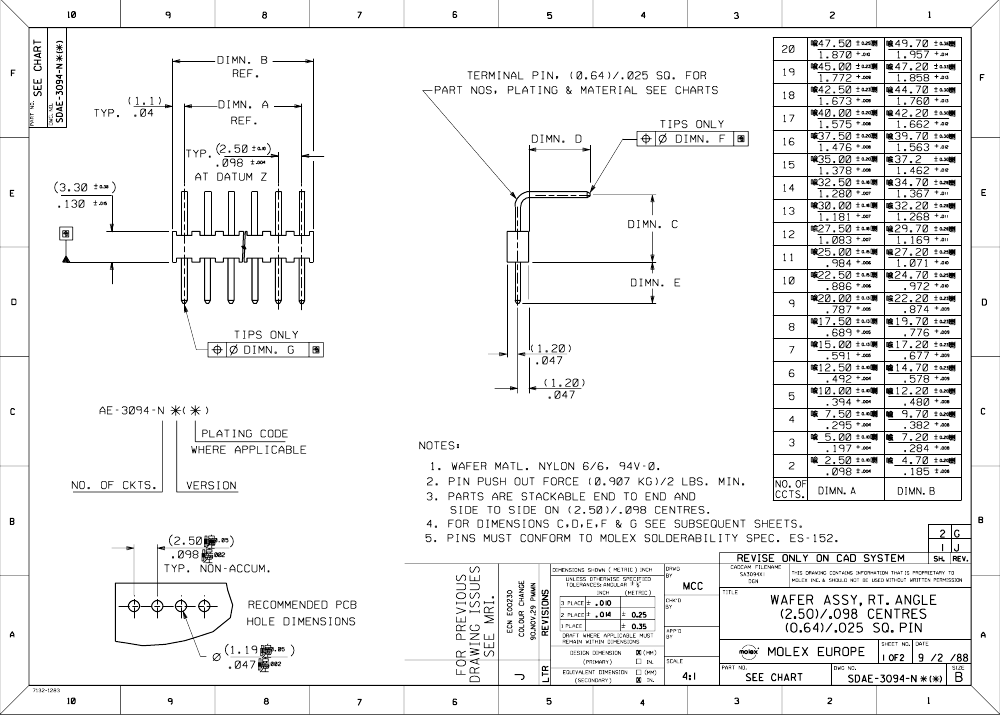

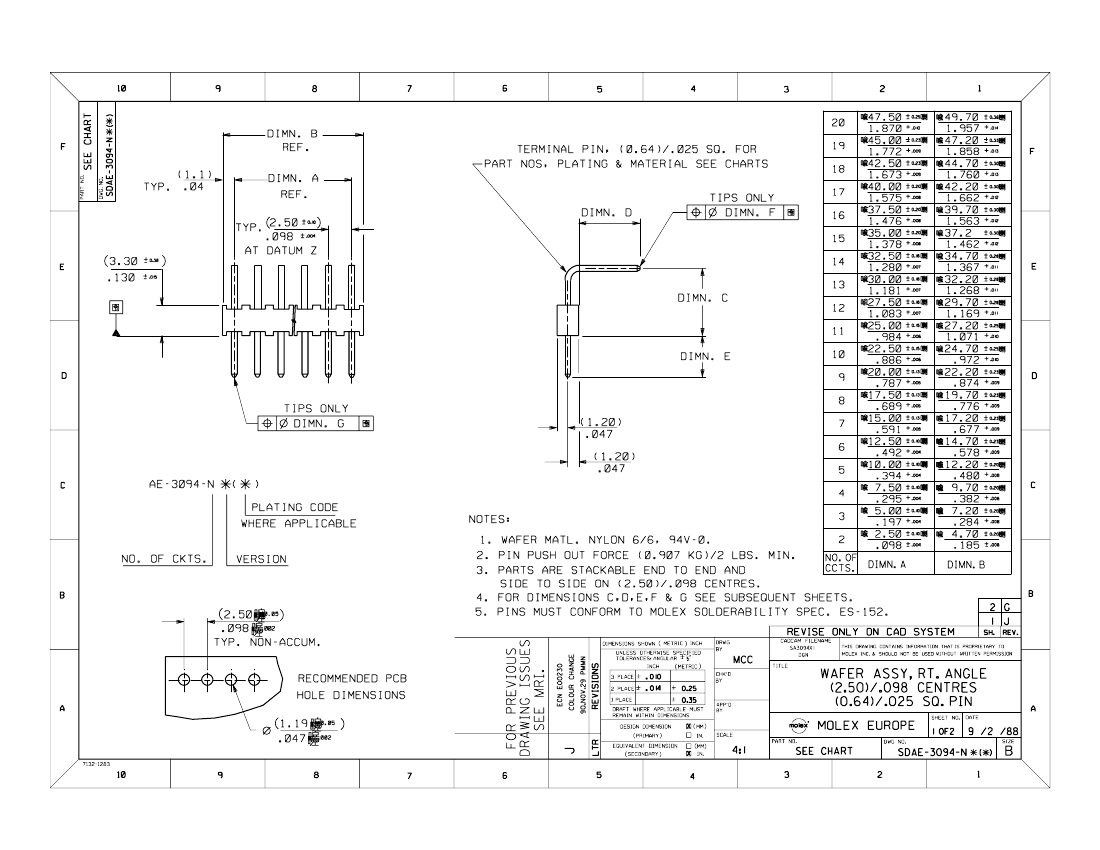

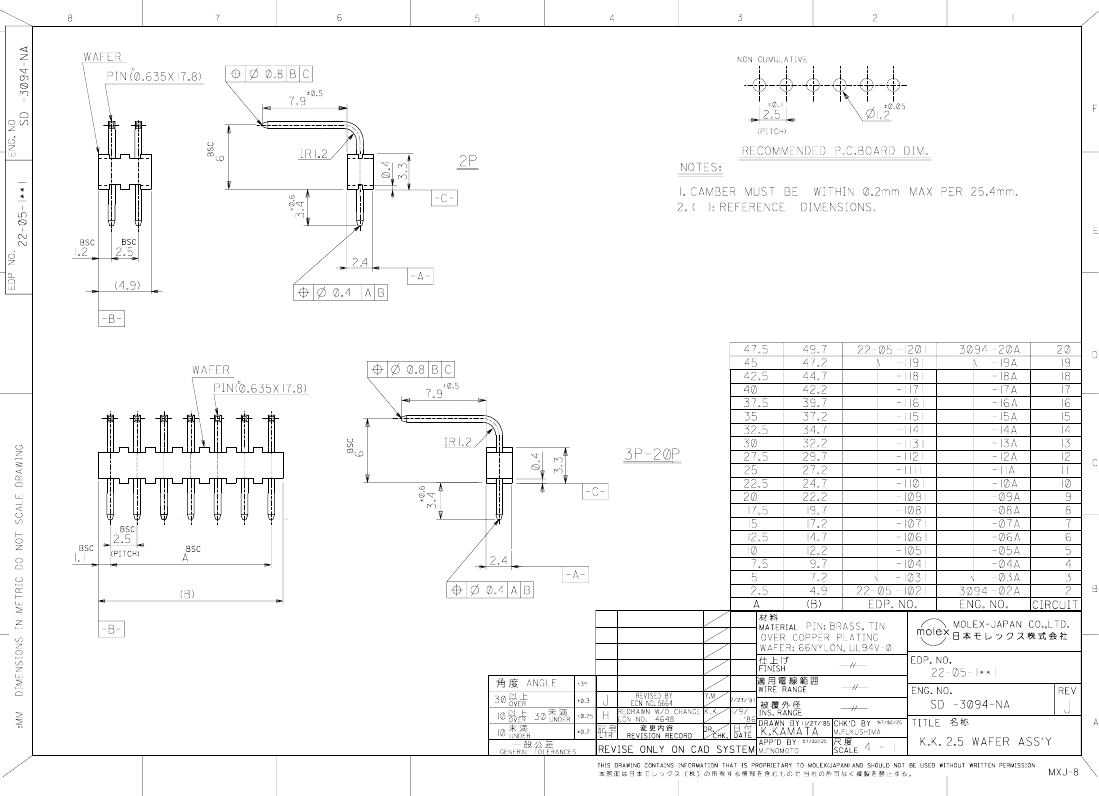

CATALOG DRAWING (FOR REFERENCE ONLY)

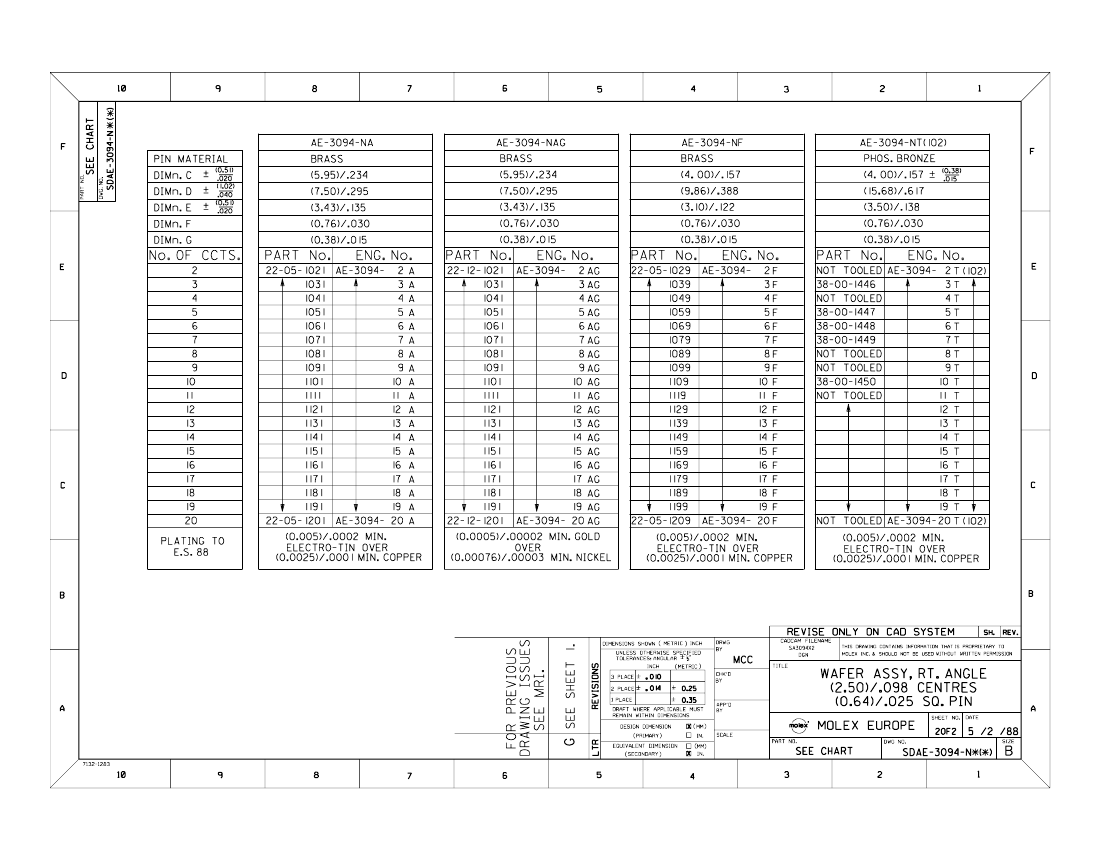

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

Tin

22-05-1021

22-05-1031

22-05-1041

22-05-1051

22-05-1061

22-05-1071

22-05-1081

22-05-1091

22-05-1101

22-05-1111

Gold

22-12-1021

22-12-1031

22-12-1041

22-12-1051

22-12-1061

22-12-1071

22-12-1081

22-12-1091

22-12-1101

22-12-1111

4.90

7.20

9.70

12.20

14.70

17.20

19.70

22.20

24.70

27.20

Dimension

(.192)

(.284)

(.382)

(.480)

(.578)

(.677)

(.776)

(.874)

(.972)

(1.071)

2.50

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

(.098)

(.196)

(.295)

(.393)

(.492)

(.590)

(.688)

(.787)

(.885)

(.984)

Circuits

Order No.

Tin

22-05-1121

22-05-1131

22-05-1141

22-05-1151

22-05-1161

22-05-1171

22-05-1181

22-05-1191

22-05-1201

Gold

22-12-1121

22-12-1131

22-12-1141

22-12-1151

22-12-1161

22-12-1171

22-12-1181

22-12-1191

22-12-1201

29.70

32.20

34.70

37.20

39.70

42.20

44.70

47.20

49.70

Dimension

(1.169)

(1.268)

(1.367)

(1.462)

(1.563)

(1.662)

(1.760)

(1.858)

(1.957)

27.50

30.00

32.50

35.00

37.50

40.00

42.50

45.00

47.50

(1.082)

(1.181)

(1.279)

(1.377)

(1.476)

(1.574)

(1.673)

(1.771)

(1.870)

MX01

B-165

2.00 to 2.50mm (.079 to .098") Pitch

Reference Information

Packaging: Bulk

UL File No.: E29179

CSA File No.: LR19980

Mates With:

5051

and

7534

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 3.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1000V AC

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: Brass

Plating: Tin

Operating Temperature: -40 to +105˚C

2.50mm (.098") Pitch

Header

3094-NA

Right Angle

Square Pin
