Datasheet> All Categories > Analog mixed-signal IC> Trigger device> C782LB

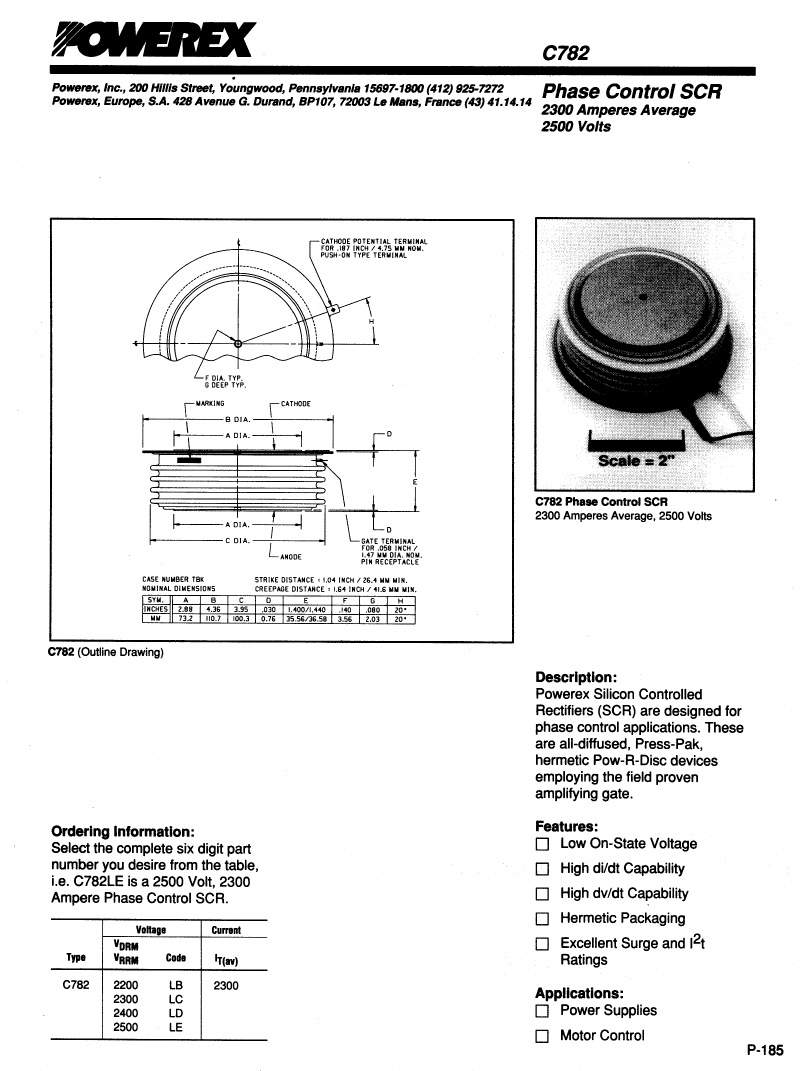

Preview

C782LB: DescriptionPhase Control SCR 2300 Amperes Average 2500 Volts; CategoryAnalog mixed-signal IC Trigger device; File Size477KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx; Environmental Compliance

Download Datasheet Parametric Compare View All

C782LB Overview

Phase Control SCR 2300 Amperes Average 2500 Volts

C782LB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	POWEREX
package instruction	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown
Nominal circuit commutation break time	250 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	250 mA
Maximum DC gate trigger voltage	4.5 V
JESD-30 code	O-CEDB-X3
Maximum leakage current	150 mA
On-state non-repetitive peak current	35000 A
Number of components	1
Number of terminals	3
Maximum on-state current	2300000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	4240 A
Off-state repetitive peak voltage	2200 V
Repeated peak reverse voltage	2200 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

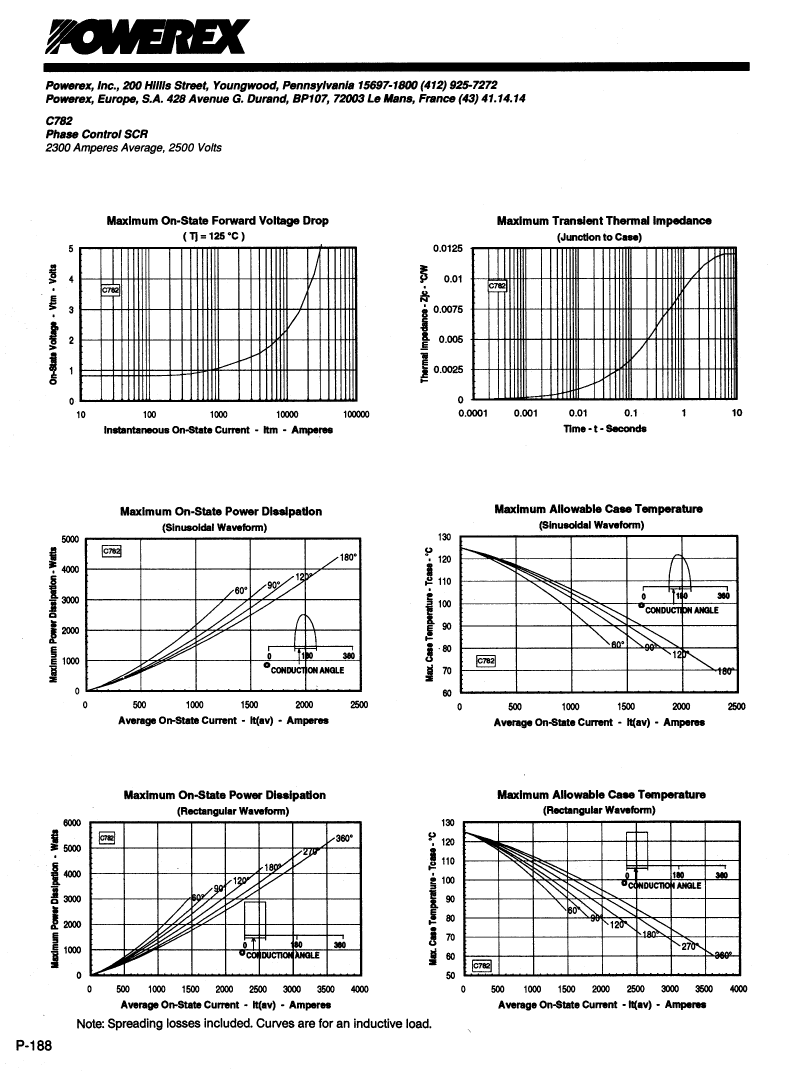

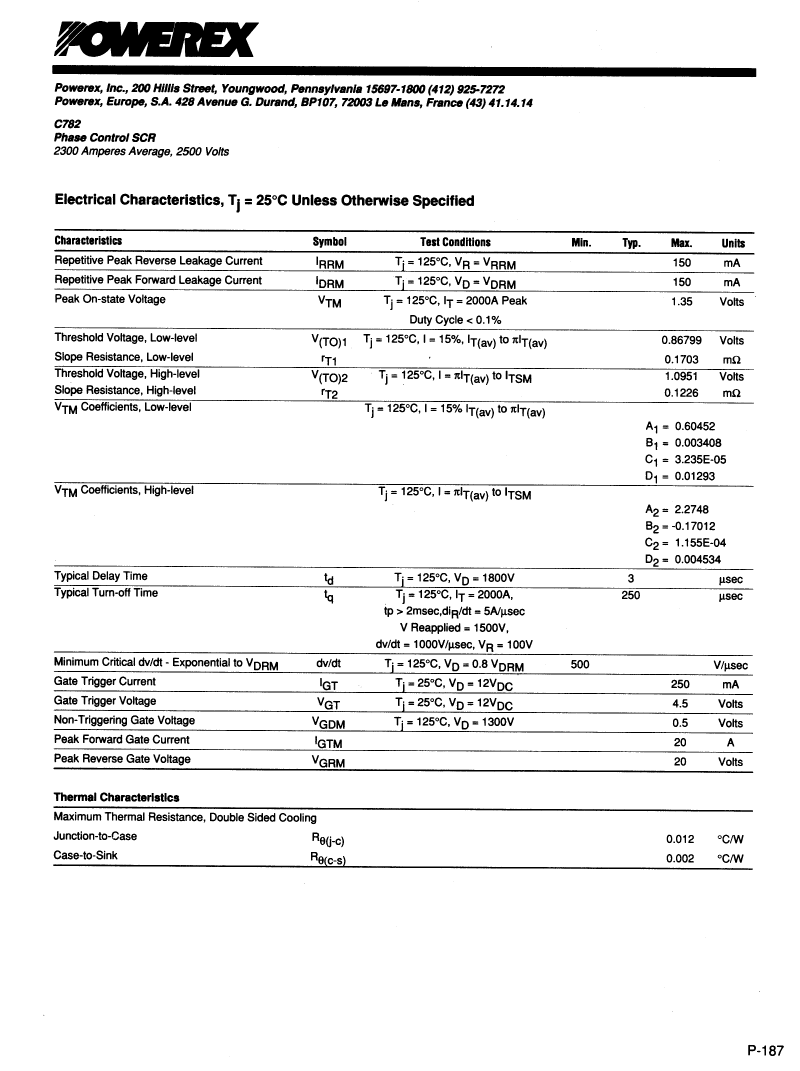

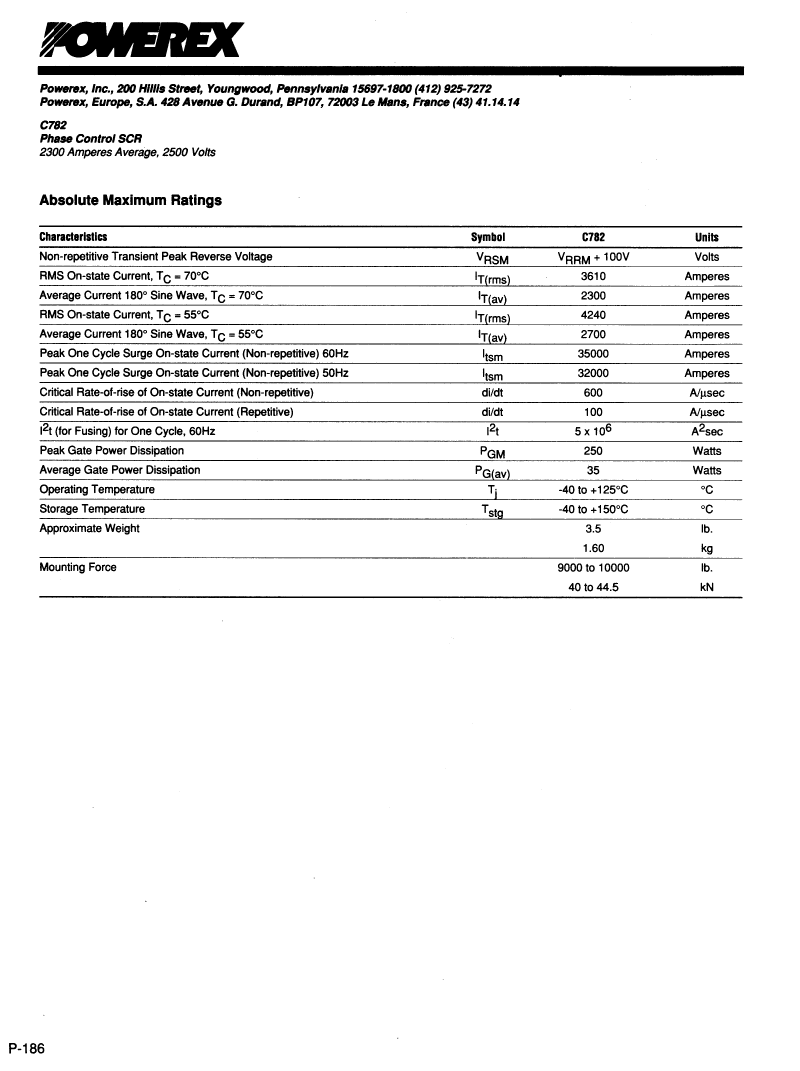

Preview

Download Datasheet

View All

C782LB Related Products

	C782LB	C782	C782LC	C782LD	C782LE
Description	Phase Control SCR 2300 Amperes Average 2500 Volts	Phase Control SCR 2300 Amperes Average 2500 Volts	Phase Control SCR 2300 Amperes Average 2500 Volts	Phase Control SCR 2300 Amperes Average 2500 Volts	Phase Control SCR 2300 Amperes Average 2500 Volts
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
package instruction	DISK BUTTON, O-CEDB-X3	-	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown	-	unknow	unknow	unknow
Nominal circuit commutation break time	250 µs	-	250 µs	250 µs	250 µs
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us	-	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	250 mA	-	250 mA	250 mA	250 mA
Maximum DC gate trigger voltage	4.5 V	-	4.5 V	4.5 V	4.5 V
JESD-30 code	O-CEDB-X3	-	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3
Maximum leakage current	150 mA	-	150 mA	150 mA	150 mA
On-state non-repetitive peak current	35000 A	-	31000 A	31000 A	31000 A
Number of components	1	-	1	1	1
Number of terminals	3	-	3	3	3
Maximum on-state current	2300000 A	-	2300000 A	2300000 A	2300000 A
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	-	ROUND	ROUND	ROUND
Package form	DISK BUTTON	-	DISK BUTTON	DISK BUTTON	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	4240 A	-	4240 A	4240 A	4240 A
Off-state repetitive peak voltage	2200 V	-	2300 V	2400 V	2500 V
Repeated peak reverse voltage	2200 V	-	2300 V	2400 V	2500 V
surface mount	YES	-	YES	YES	YES
Terminal form	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	END	-	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	-	SCR	SCR	SCR
Base Number Matches	1	-	1	1	1
