4101.SMBA.1D10.039 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 4101.SMBA.1D10.039

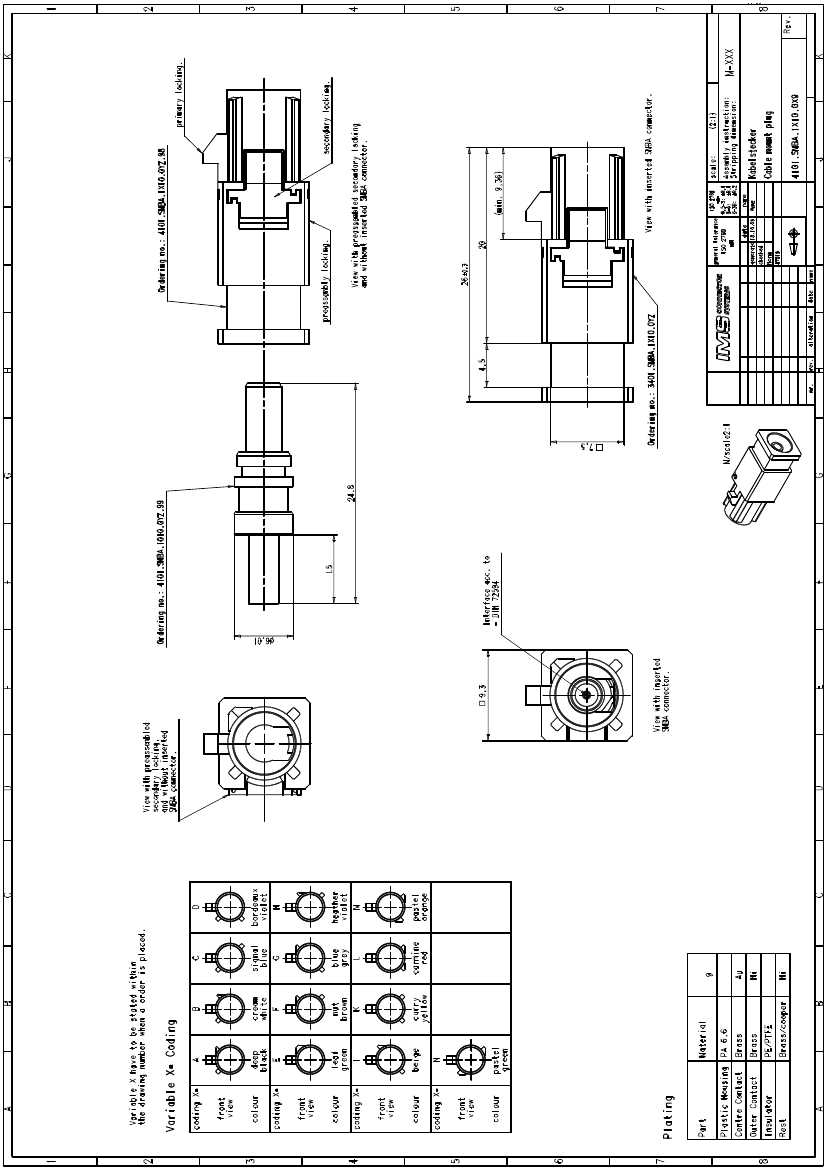

4101.SMBA.1D10.039: DescriptionRF SMBA Connector, 1 Contact(s), Female, Locking, Jack; CategoryThe connector The connector; File Size435KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

4101.SMBA.1D10.039 Overview

RF SMBA Connector, 1 Contact(s), Female, Locking, Jack

4101.SMBA.1D10.039 Parametric

Parameter Name	Attribute value
Maker	IMS Connector Systems Gmbh
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.366 inch
subject depth	1.039 inch
body length	0.366 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMBA CONNECTOR
Contact point gender	FEMALE
Contact resistance	5 mΩ
Contact style	COAX
Dielectric withstand voltage	750VAC V
Durability	50 Cycles
Insertion loss	0.1 dB
Insulation resistance	1000000000 Ω
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	1 A
reliability	COMMERCIAL
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

4101.SMBA.1D10.039 Related Products

	4101.SMBA.1D10.039	4101.SMBA.1F10.029	4101.SMBA.1E10.039	4101.SMBA.1E10.029	4101.SMBA.1D10.029	4101.SMBA.1C10.039	4101.SMBA.1C10.029	4101.SMBA.1X10.0X9	4101.SMBA.1N10.029	4101.SMBA.1I10.039
Description	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMB Connector, Male, Cable Mount, Plug	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack	RF SMBA Connector, 1 Contact(s), Female, Locking, Jack
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	unknown	compliant	compliant
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	PLUG	JACK	JACK
Connector type	RF SMBA CONNECTOR	RF SMBA CONNECTOR	RF SMBA CONNECTOR	RF SMBA CONNECTOR	RF SMBA CONNECTOR	RF SMBA CONNECTOR	RF SMBA CONNECTOR	RF SMB CONNECTOR	RF SMBA CONNECTOR	RF SMBA CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maker	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	-	-
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.366 inch	0.366 inch	0.366 inch	0.366 inch	0.366 inch	0.366 inch	0.366 inch	-	0.366 inch	0.366 inch
subject depth	1.039 inch	1.039 inch	1.039 inch	1.039 inch	1.039 inch	1.039 inch	1.039 inch	-	1.039 inch	1.039 inch
body length	0.366 inch	0.366 inch	0.366 inch	0.366 inch	0.366 inch	0.366 inch	0.366 inch	-	0.366 inch	0.366 inch
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	-	50 Ω	50 Ω
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	5 mΩ	-	5 mΩ	5 mΩ
Contact style	COAX	COAX	COAX	COAX	COAX	COAX	COAX	-	COAX	COAX
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	-	750VAC V	750VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	-	50 Cycles	50 Cycles
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	-	0.1 dB	0.1 dB
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING
Number of ports	1	1	1	1	1	1	1	-	1	1
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	-	6 GHz	6 GHz
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	-	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Total number of contacts	1	1	1	1	1	1	1	-	1	1
Base Number Matches	1	1	1	1	1	1	1	1	-	-
