Part Number

Search

232220713437

Description
RESISTOR, FUSIBLE, FILM, 0.5 W, 5 %, 200 ppm, 0.43 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size151KB,10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

232220713437 Overview

RESISTOR, FUSIBLE, FILM, 0.5 W, 5 %, 200 ppm, 0.43 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

232220713437 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction,
Reach Compliance Codeunknow
ECCN codeEAR99
JESD-609 codee3
Manufacturer's serial numberNFR25H
Installation featuresTHROUGH HOLE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package shapeTUBULAR PACKAGE
method of packingAMMO PACK
Rated power dissipation(P)0.5 W
Rated temperature70 °C
resistance0.43 Ω
Resistor typeFIXED RESISTOR - FUSIBLE
surface mountNO
technologyMETAL ALLOY
Temperature Coefficient200 ppm/°C
Terminal surfaceMatte Tin (Sn)
Terminal shapeWIRE
Tolerance5%
Operating Voltage350 V
Base Number Matches1
NFR25/25H
Vishay BCcomponents
Fusible, Non-Flammable Metal Film Leaded Resistors
FEATURES
• Overload protection without risk of fire

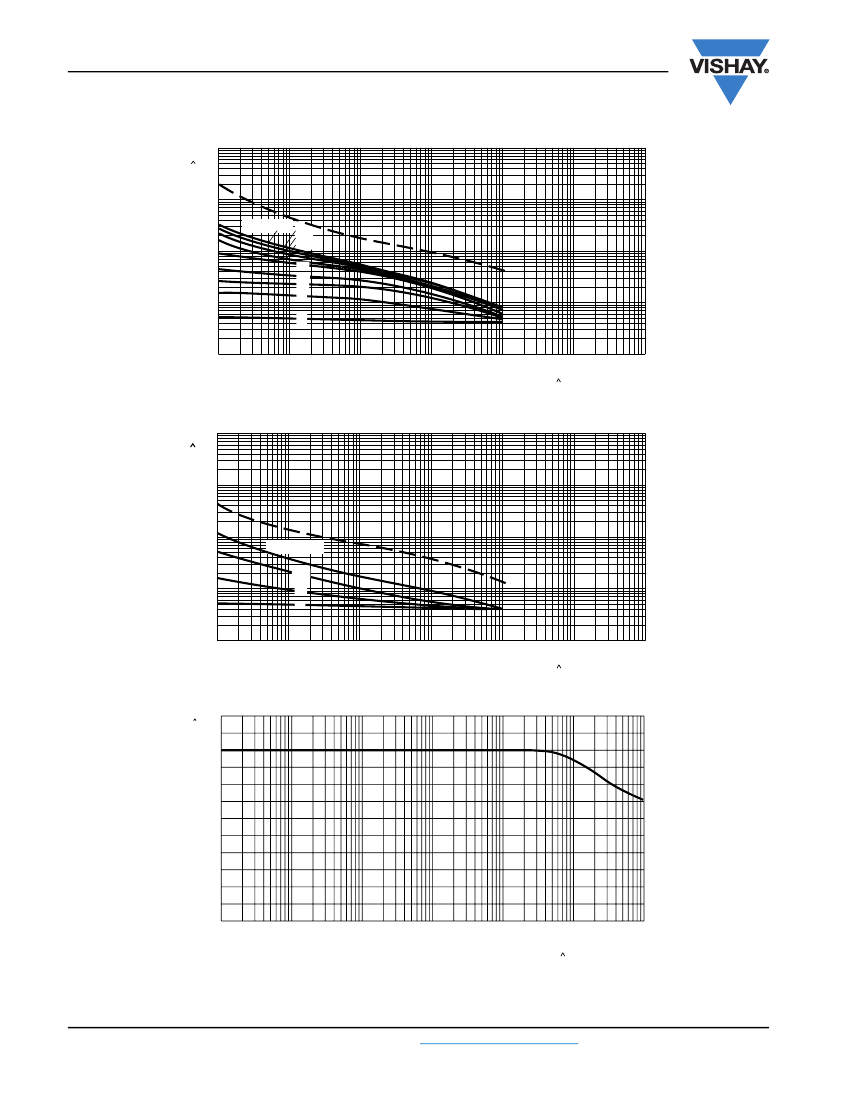

• Wide range of overload currents

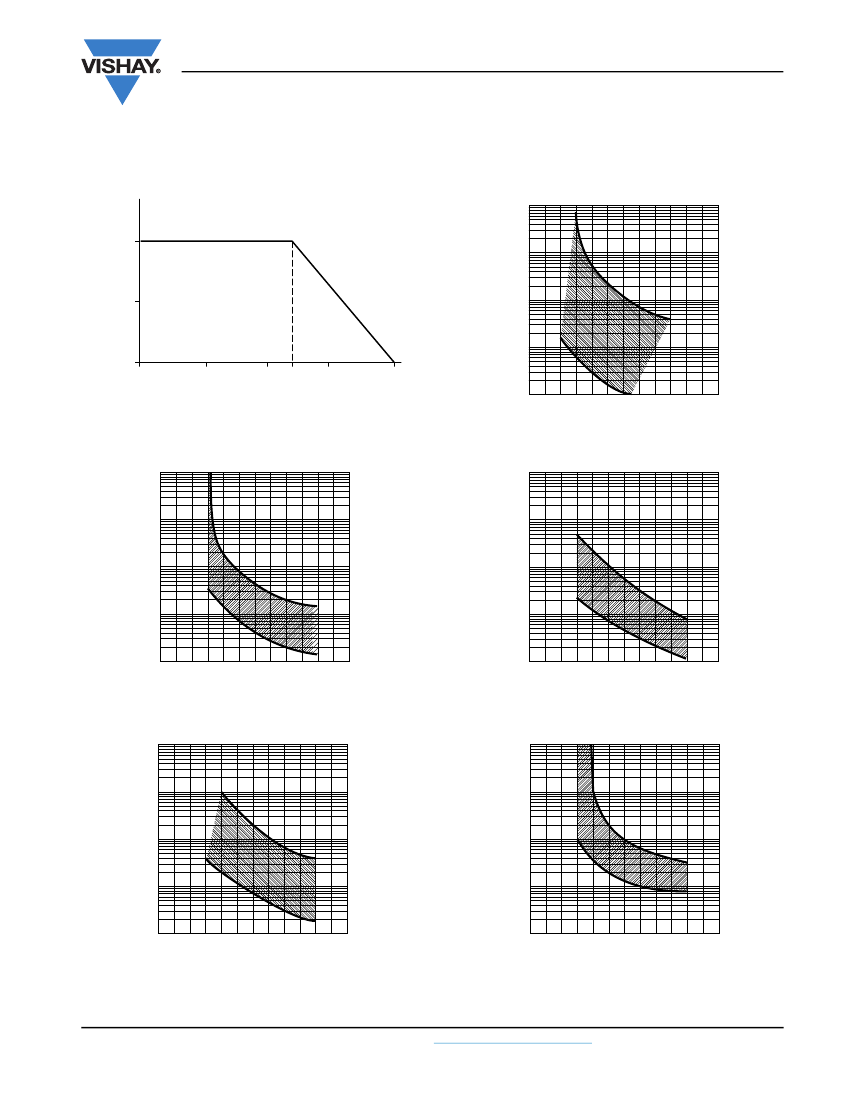

(refer Fusing Characteristics graphs)
• Lead (Pb)-free solder contacts
A homogenous film of metal alloy is deposited on a high
grade ceramic body. After a helical groove has been cut in
the resistive layer, tinned connecting wires of electrolytic
copper are welded to the end-caps. The resistors are coated
with a grey, flame retardant lacquer which provides
electrical, mechanical, and climatic protection. The
encapsulation is resistant to all cleaning solvents in
accordance with IEC 60068-2-45.
• Pure tin plating provides compatibility with
lead (Pb)-free and lead containing soldering processes
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
Audio
Video
TECHNICAL SPECIFICATIONS
VALUE
DESCRIPTION
NFR25
Resistance Range
(1)
Resistance Tolerance and Series
Rated Dissipation,
P
70
Thermal Resistance
R
th
Temperature Coefficient:
0.22
Ω ≤
R
4.7
Ω
4.7
Ω
<
R
15
Ω
15
Ω
<
R
15 kΩ
Maximum Permissible Voltage,
U
max.
(DC or RMS)
Basic Specifications
Climatic Category (IEC 60068-1)
Stability After:
Load (1000 h,
P
70
):
Long Term Damp Heat Test (56 Days)
Soldering (10 s, 260 °C)
ΔR
max.: ± (1 %
R
+ 0.05
Ω)
ΔR
max.: ± (1 %
R
+ 0.05
Ω)
ΔR
max.: ± (0.25 %
R
+ 0.05
Ω)
± 200 ppm/K
± 200 ppm/K
± 100 ppm/K
250 V
IEC 60115-1
55/155/56
± 200 ppm/K
± 100 ppm/K
± 100 ppm/K
350 V
0.33 W
240 K/W
0.22
Ω
to 15 kΩ
± 5 %; E24 series
0.5 W
150 K/W
NFR25H
Notes
(1)
Ohmic values (other than resistance range) are available on request
R
value is measured with probe distance of 24 mm ± 1 mm using 4-terminal method
www.vishay.com
126
For technical questions, contact:
filmresistorsleaded@vishay.com
Document Number: 28737
Revision: 05-Oct-09
