2731-M-B-001500: DescriptionMains Power Connector, 2.5A, 250VAC, Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size281KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

2731-M-B-001500 Overview

Mains Power Connector, 2.5A, 250VAC, Female, ROHS COMPLIANT

2731-M-B-001500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARD: IEC/EN 60320-1
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	2.5A, 250VAC
Manufacturer's serial number	2511
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

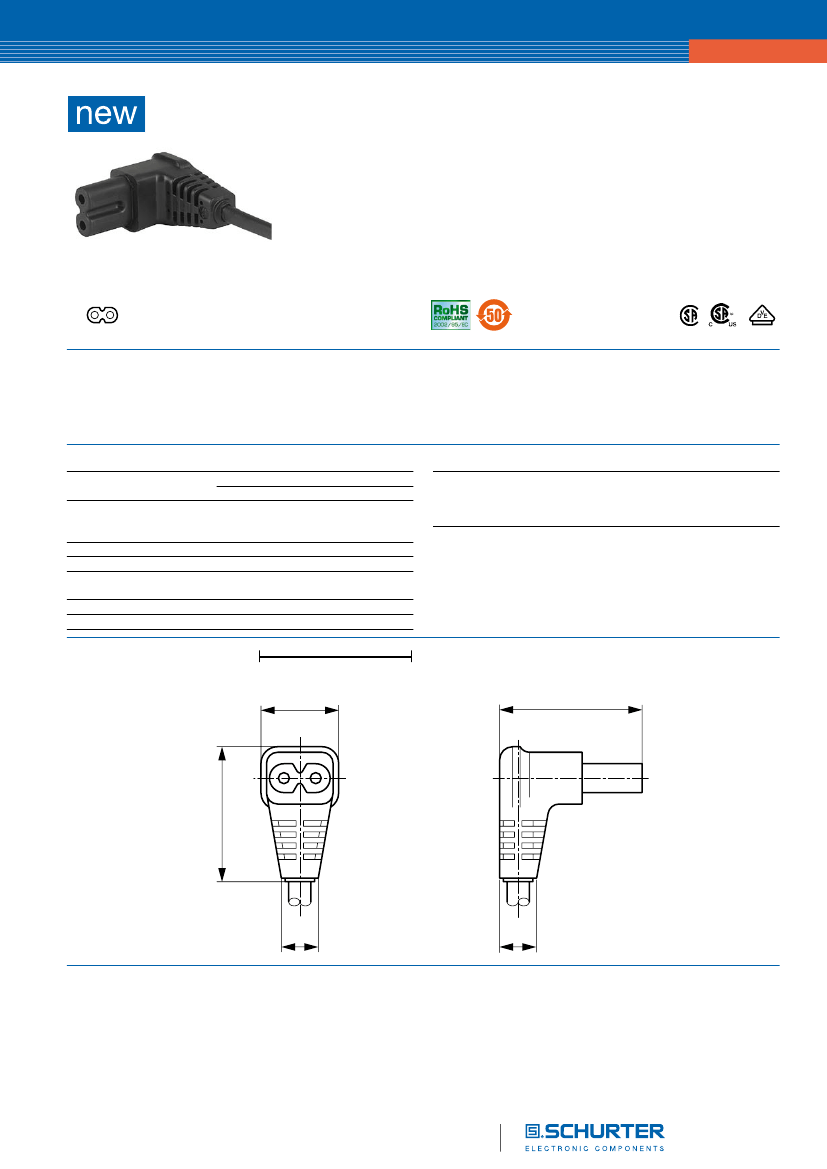

Cord Sets

www.schurter.com/pg07_2

Power Cord with IEC Appliance Plug C7, angled, 70°C

25

C7

70°C

Description

Approvals

Power Supply Cord / Interconnection Cord, Protection class II, Pin tem-

perature 70 °C, Cable

- VDE License Number: 40005800

- CSA License Number: 1020530

Weblinks

Approvals, RoHS, CHINA-RoHS, e-Store, SCHURTER-Stock-Check,

Distributor-Stock-Check, Product Configurator

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

2.5 A / 250 VAC; 50 Hz

2.5 A / 250 VAC; 60 Hz

> 3 kVDC between L-N

> 1.5 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class II acc. to IEC 61140

moulded

black or grey

Length

Appliance-Inlet/-Outlet

C7 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C,

2.5 A, Protection class II

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

38.5 mm

21

38.5

36.5

10

Appliance Inlet
