6810-7860: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size302KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

6810-7860 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

6810-7860 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
Board mount options	SPLIT BOARD LOCK
body width	0.63 inch
subject depth	0.811 inch
body length	0.7 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	6810
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

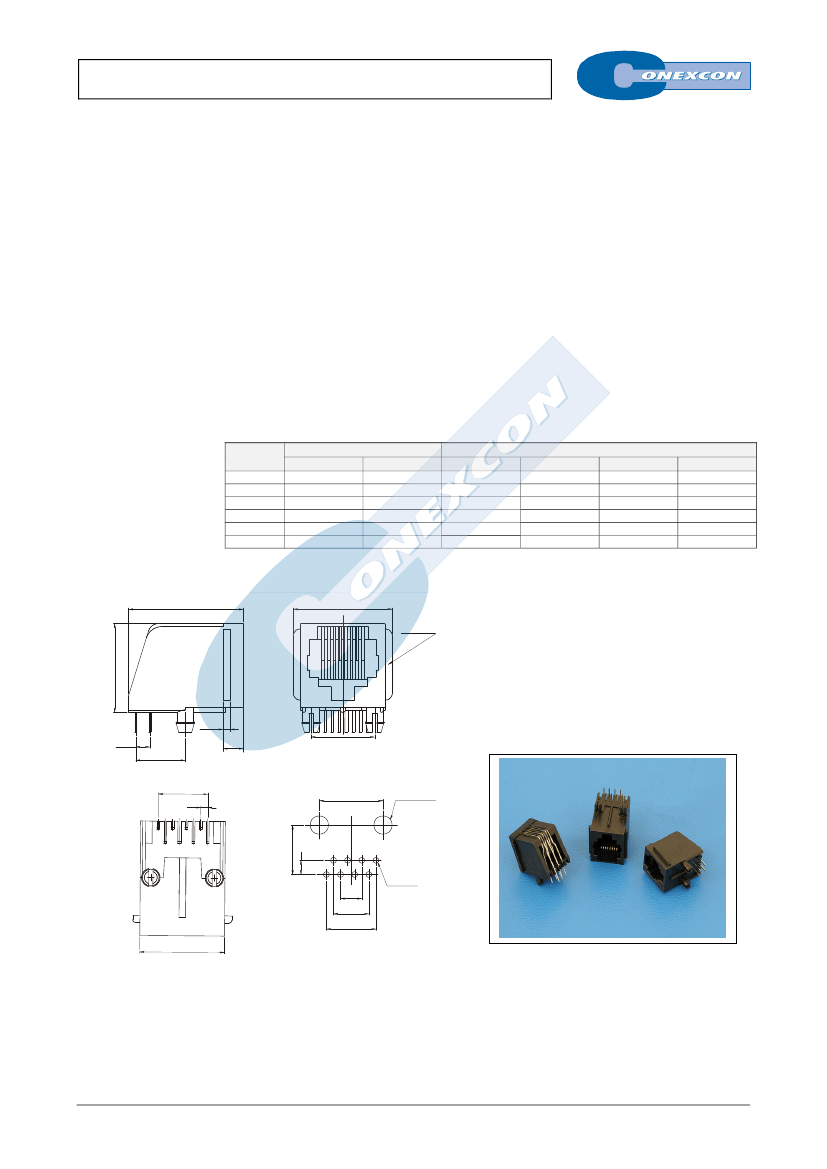

SIDE ENTRY PCB JACK FCC-68

6810 SERIES.

Right angle PCB jack.

General Features

Electrical Features



Available in 4/4, 6/2, 6/4, 6/6, 8/6 and 8/8 circuits

Standard telephone jack FCC-68

16.00 mm. height

Accept standard plugs FCC-68

Selective gold plating with different plating

Bifurcated foot print



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.35 mm. thickness in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Part Number

W/O Panel Stop

6810 –

T440

6810 –

T620

6810 –

T640

6810 –

T660

6810 –

T860

6810 –

T880

With Panel Stop

6810 –

T441

6810 –

T621

6810 –

T641

6810 –

T661

6810 –

T861

6810 –

T881

A

13.72 (0.540)

15.75 (0.620)

17.78 (0.700)

B

11.18 (0.440)

13.21 (0.520)

15.24 (0.600)

DIMENSIONES

C

7.62 (0.300)

10.16 (0.400)

11.43 (0.450)

D

3.81 (0.150)

1.27 (0.050)

3.81 (0.150)

6.35 (0.250)

8.89 (0.350)

Circuit Size

4/4

6/2

6/4

6/6

8/6

8/8

20.60

A

T = Plating Options

Panel

stop



T =

4.

10µ” gold over nickel

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

T =

7.

50µ” gold over nickel

16.00

1.27

2.54

8.89

3.63

C

8.89

C

1.27

2- ø 3.25

8.89

2.54

ø

0.90

D

4 Cts

D

6 Cts

D

8 Cts

B

PCB LAYOUT / TOP VIEW

E-XX

FULL LINE CATALOGUE
