LCD515-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LCD515-200

LCD515-200: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid; CategoryPower/power management The power supply circuit; File Size96KB，3 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Parametric View All

LCD515-200 Overview

DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid

LCD515-200 Parametric

Parameter Name	Attribute value
Objectid	1154944611
package instruction	DIP, DIP18,.8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL -15 VOLT OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	30.8 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-MDIP-T18
length	50.8 mm
Maximum load regulation	0.5%
Number of functions	1
Output times	2
Number of terminals	18
Maximum operating temperature	55 °C
Minimum operating temperature
Maximum output current	0.2 A
Maximum output voltage	15.75 V
Minimum output voltage	14.25 V
Nominal output voltage	15 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.8
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	11.43 mm
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	6 W
Fine-tuning/adjustable output	NO
width	50.8 mm

Preview

Download Datasheet

View All

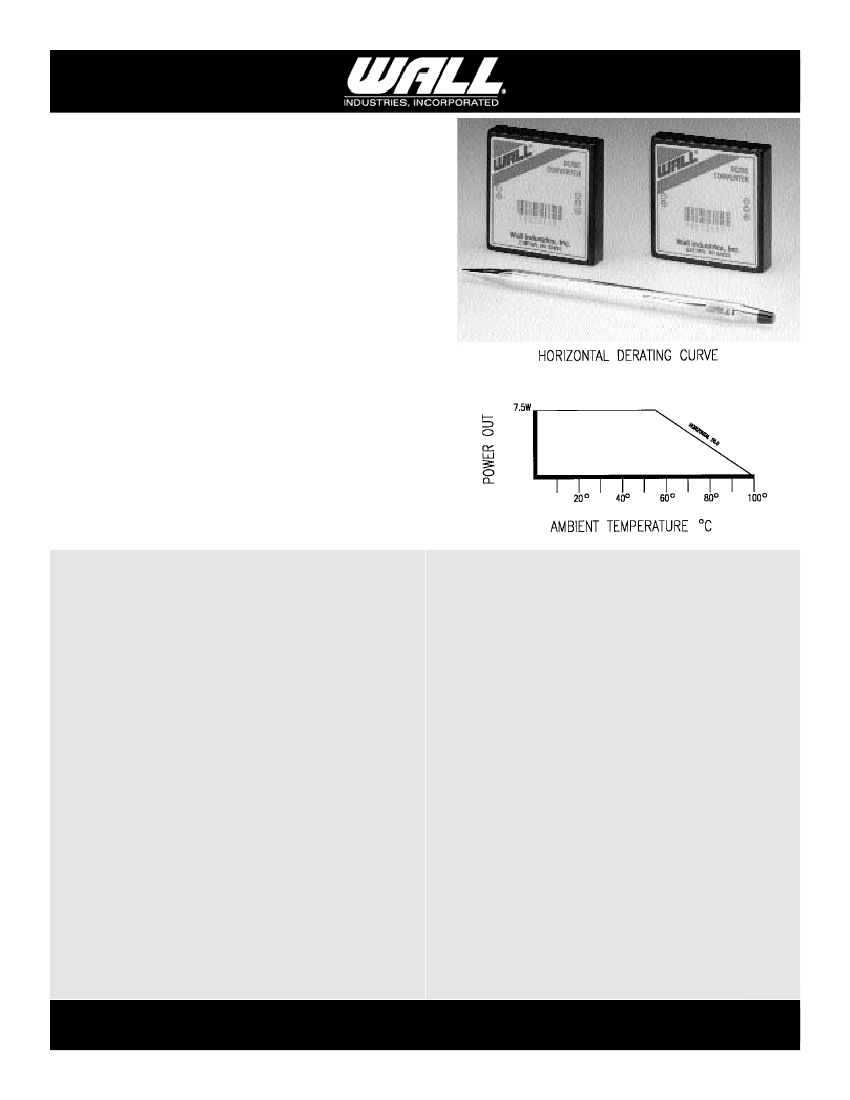

L SERIES

PRODUCT FEATURES

Low Ripple, Regulated, Single and Dual Output

•

Up to 7.5Watts Output Power

High Input/Output Isolation

Low Output Ripple

Continuous Short Circuit Protection

Pi-Input Filter

Low Profile Package

TO 7.5 WATTS

THE L SERIES FROM WALL INDUSTRIES

The L Series features a low profile package of 2.0 x 2.0 x

0.40” with output power to 7.5watts. This series has

excellent line and load regulation, input filtering, and low

output ripple, as well as low input reflected ripple.

Specifications include high I/O isolation (500VDC), low

output ripple (<50mV P-P) and current limiting/thermal

shutdown.

SPECIFICATIONS: L SERIES

All specifications apply @ +25 C ambient unless

otherwise noted.

INPUT SPECIFICATIONS

Input Voltage Range ...................................4.5 - 30.8 VDC

Nominal Input.........................................5, 12, 24, 28 VDC

Input Filter .....................................................Pi-Input Filter

GENERAL SPECIFICATIONS

Efficiency ..........................................................65% typical

Isolation Voltage (input to output) .................500VDC min.

Isolation Resistance (input to output) .............100 MOhms

Switching Frequency .....................................50kHz typical

OUTPUT SPECIFICATIONS

Output Current .....................................................see table

Voltage Tolerance .................................................5% max.

Thermal Shutdown...approx 100°C case (7.5W units only)

Line Regulation.......................................................±0.05%

.......................................................................3 & 5W 0.3%

Load Regulation .......................................................±0.5%

Short Circuit Protection .....................linear current limiting

Ripple/Noise (20MHz BW) ..................................50mV p-p

Over Voltage Protection .......................................see table

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature .......................-25 to +85°C (case)

Storage Temperature....................................-55 to +100°C

Humidity (non-condensing) ..........................20 - 95% R.H.

PHYSICAL SPECIFICATIONS

Weight .....................................................................2.3 Oz.

Case Material ......................................Black coated metal,

...................................................non-conductive baseplate

Shielding connections..................Six-Sided Shielded case

Due to advances in technology, specifications subject to

change without notice.

11/07/2005

603 778 2300

WWW

WALLINDUSTRIES

COM
