RM SERIES
INDUSTRIAL RELAYS
UL & CUL File #E223388

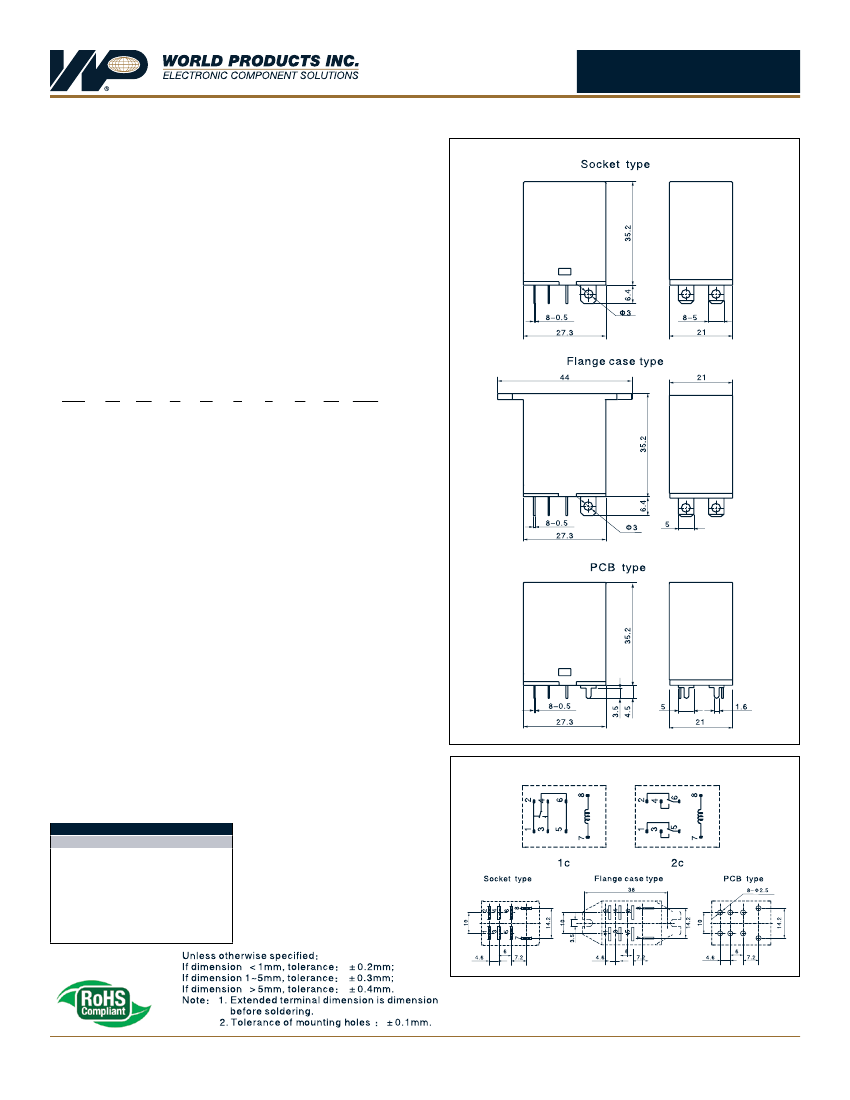

DIMENSIONS
Unit: mm
FEATURES
• 1 pole and 2 poles types available with switching current 15A (1 pole)
and 10A (2 pole).
• PCB terminal, socket and flange case types available for different
mounting consideration.
• Low coil power consumption with high sensitivity.
• Long service indurance, high reliability.
TYPICAL APPLICATIONS
Automatic Cooking Appliances, Office Equipment, Home Appliances,
Control Apparatus
ORDERING INFORMATION
RM
(1)
(1)
–1
(2)
12
(3)
D
(4)
M
(5)
T
(6)
(6)
1
(7)
D
(8)
–F
(9)
–XX
(10)
Type Designation
RM
= RM Series
Number of Poles
1
= 1 pole
2
= 2 pole
Coil Voltage (VDC)
DC
= 06, 12, 24, 48, 110
AC
= 06, 12, 24, 48, 110,
220
Coil Power
D
= DC
A
= AC
Contact Form
Nil
= Form C
M
= Form A
(2)
Mounting Type
P = PCB
T = Socket
F
= Flange Case
Contact Material
Nil = AgSnO2
1 = AgCdO
Accessory Form
Nil = Without Accessory
D
= With Diode
F
= Class F
Insulation System
Nil
= Standard
B = Class B
(1)
F
= Class F
(2)
(7)
(3)
(8)
(4)
(9)
(5)
(10) Special Parameter
Nil = Standard type, 10–3A
product
Letter or Number
= Special
Requirement
Note 1: Heat resistivity = -40ºC to +130ºC.
Note 2: Heat resistivity = -40ºC to +155ºC.
WIRING DIAGRAM & PCB LAYOUT
Bottom view
SAFETY APPROVAL RATINGS
UL/CUL
E223388
1 POLE
15A 240VAC, Resistive
15A 24VDC, Resistive
7A 250VAC, General Use
2 POLES
10A 240VAC, Resistive
10A 24VDC, Resistive
5A 240VAC, General Use
WORLD PRODUCTS INC.
19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com
38
| Industrial Relays Catalog
Rev. 1.2 - 03.04.13
RM SERIES

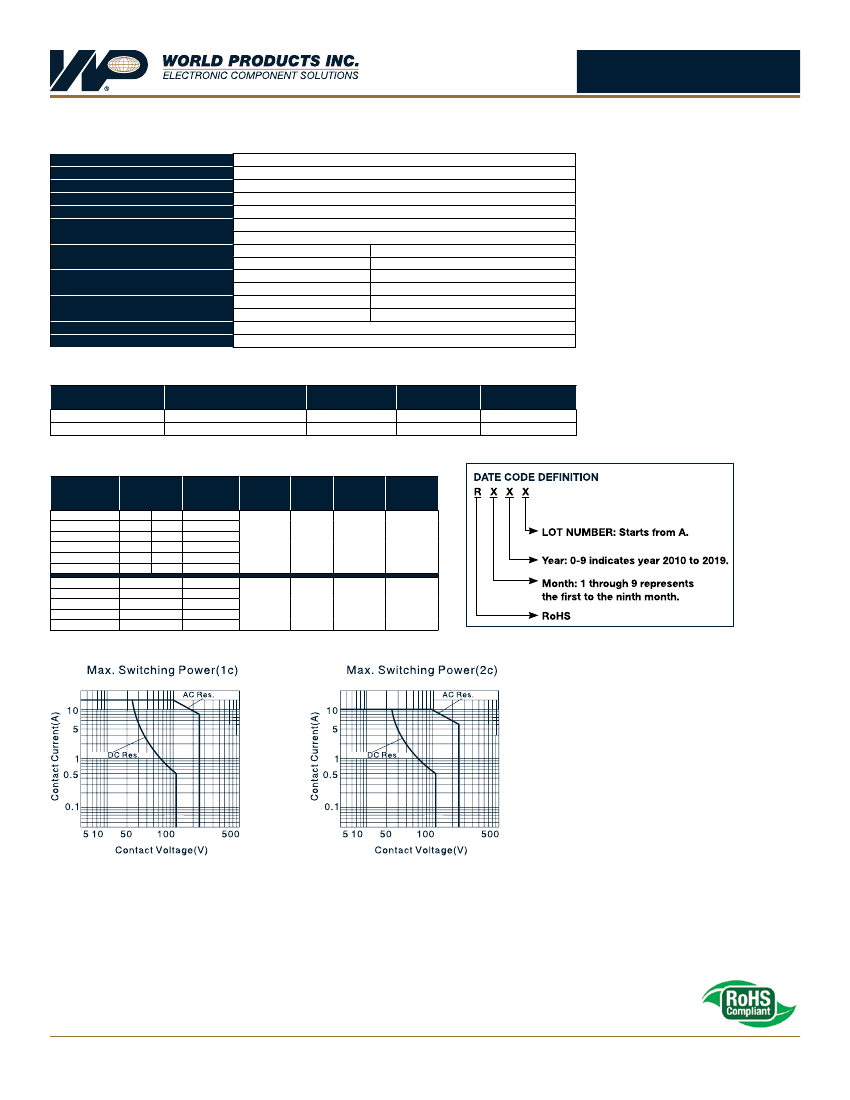

CHARACTERISTIC DATA
Contact Material
Initial contact resistance
(@ 6VDC 1A)
Operate time
(@ nominal voltage)
Release Time
(@ nominal voltage)
Initial insulation resistance
Initial dielectric strength
Vibration Resistance
Shock Resistance
Endurance
(operations)
Ambient Temperature
Unit Weight
Silver Alloy
50mΩ Max.
25msec. Max.
25msec. Max.
500M Ω Min. (DC500V)
Between open contacts: AC1000V, 50/60Hz 1 Min.
Between coil and contact: AC1500V, 50/60Hz 1Min.
Functional
10 ~ 55Hz @ double amplitude of 1.5mm
Destructive
10 ~ 55Hz @ double amplitude of 1.5mm
Functional
10G Min.
Destructive
100G Min.
Mechanical (@10,800 ops./h)
10,000,000
Electrical (@600 ops./h)
100,000
–25ºC to +55ºC (no condensation)
Open Type: Approximately 37.0g
CONTACT CAPACITY
Model
RM – 1 pole
RM – 2 poles
Nominal Switching Capacity
(res. load)
15A 250VAC
10A 250VAC
Max. Switching
Current
15A
10A
Max. Switching
Voltage
250VAC
250VAC
Max. Switching
Power
3750VA
2500VA
COIL DATA (AT 20ºC)
Nominal
Voltage
Coil
Max.
Pick–up Drop–Out Nominal
Nominal
Resistance Allowable Voltage Voltage Operating
Current (mA)
± 10% (Ω)
Voltage
(Max.)
(VDC)
Power
6 VAC
220.0 170.0
11.5
12 VAC
110.0 85.0
46
110% of 80% of 30% of
1.0 ~
24 VAC
60.0 45.0
165
Nominal Nominal Nominal
48 VAC
30.0 23.0
735
1.3VA
Voltage
Voltage
Voltage
120 VAC
13.5 11.5
4430
220/240 VAC
6.0
5.0
14400
6 VDC
12 VDC
24 VDC
48 VDC
110 VDC
150.0
75.0
36.9
18.5
10.0
40
160
650
2600
11000
110% of 75% of
Nominal Nominal
Voltage
Voltage
10% of
Nominal
Voltage
Approx.
0.90W
CHARACTERISTIC CURVES
