31-2208

Description
RF adapters - tee jack-plug-jack tee UG-274b/U
CategoryThe connector
File Size43KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

31-2208 Online Shopping

Suppliers Part Number Price MOQ In stock
31-2208 - - View Buy Now

31-2208 Overview

RF adapters - tee jack-plug-jack tee UG-274b/U

31-2208 Parametric

Parameter NameAttribute value
ManufactureAmphenol
Product CategoryRF Adapters - Tee
RoHSYes
Side 1 RF SeriesBNC
Side 1 GendeJack (Female)
Side 2 RF SeriesBNC
Side 2 GendePlug (Male)
Side 3 RF SeriesBNC
Side 3 GendeJack (Female)
Contact PlatingSilve
Impedance50 Ohms
Shell PlatingSilve
Frequency RangeDC to 4 GHz

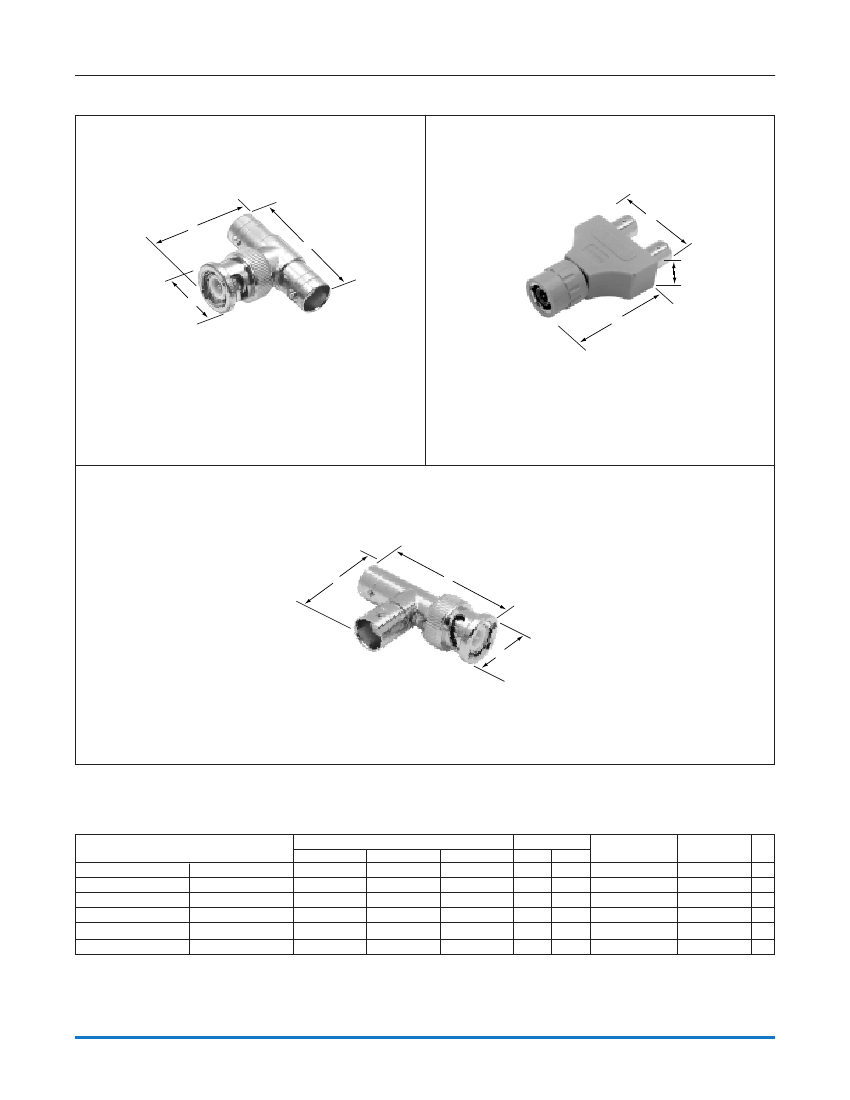

BNC 50 ohm
Tee Adapters
Fig. 1
Fig. 2
Amphenol
®
b
c
a
c
b
a
Tee Adapters - Jack-Plug-Jack
31-208
31-208-RFX
31-208-1051
31-2208
Fig. 3
BNC Overmolded Tee Adapter
Jack-Plug-Jack
31-5693
c
a
b
BNC Tee Adapter
Plug-Jack-Jack
21900
BNC TEE ADAPTERS
Description
Tee
Tee
Tee
Tee
Tee, Overmolded
Tee
Jack-Plug-Jack
Jack-Plug-Jack
Jack-Plug-Jack
Jack-Plug-Jack
Jack-Plug-Jack
Plug-Jack-Jack
Dimensions, inches (millimeters)
a
b
c
1.28(32.5)
.562(14.3)
1.06(27.0)
1.30(33.0)
1.28(32.5)
1.28(32.5)
1.72(43.6)
1.53(38.9)
.571(14.5)
.562(14.3)
.562(14.3)
1.32(33.5)
.375(9.52)
1.04(26.3)
1.06(27.0)
1.06(27.0)
.550(14.0)
1.00(25.4)
Notes
Plt.
Ins.
P1
D1
P7
P15
P4
P7
P1
D23
D1
D1
D14
D9
Military
Number
UG-274A/U
UG-274B/U
Amphenol
Number
31-208*
31-208-RFX
31-208-1051
31-2208*
31-5693
21900*
Fig.
1
1
1
1
2
3
L
L
L
* recognized under the component program of U.L, Inc.
L
distributor stocked
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
120

31-2208 Related Products

31-2208 21900
Description RF adapters - tee jack-plug-jack tee UG-274b/U RF adapters - tee T-adapt jck-plg-jck
Manufacture Amphenol Amphenol
Product Category RF Adapters - Tee RF Adapters - Tee
RoHS Yes Yes
Side 1 RF Series BNC BNC
Side 1 Gende Jack (Female) Plug (Male)
Side 2 RF Series BNC BNC
Side 2 Gende Plug (Male) Jack (Female)
Side 3 RF Series BNC BNC
Side 3 Gende Jack (Female) Jack (Female)
Contact Plating Silve Gold
Impedance 50 Ohms 50 Ohms
Shell Plating Silve Nickel
Frequency Range DC to 4 GHz DC to 4 GHz
