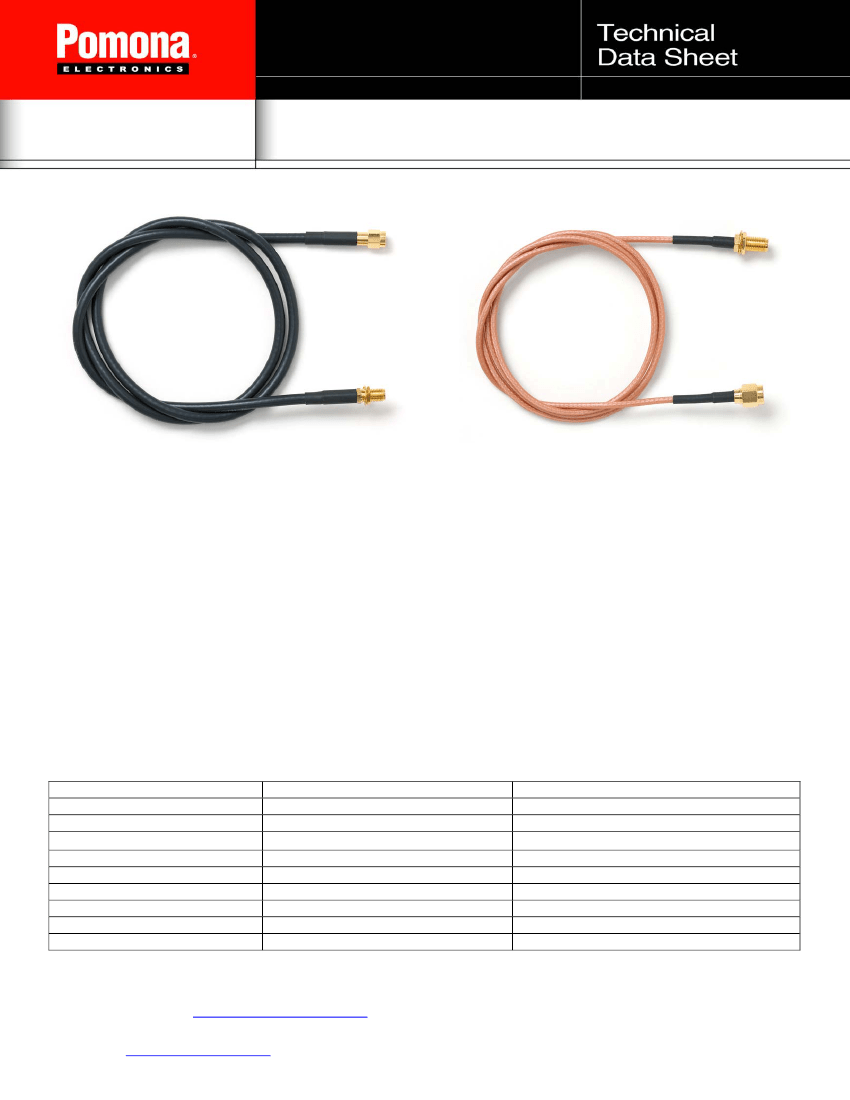

Model 73070
SMA Plug to SMA Bulkhead Jack, RG316/U, RG58C/U
Model 73070-C
SMA Plug to SMA Bulkhead Jack, RG58C/U
Model 73070-BB
SMA Plug to SMA Bulkhead Jack, RG316/U
Small size, and durability for confident connections
Features
•
•
•
DC - 3GHz bandwidth.
Connectors are precision machined and gold-plated for low loss.
Perfect for applications where space, weight, performance and ease of connections are required.
Materials
SMA Male Connectors:
Center Contact: Brass, Gold Plated
Connector Body: Brass, Gold Plated
Crimp Ferrule: Copper, Nickel Plated
Insulators: PTFE
SMA Bulkhead Female Connectors:
Center Contact: Beryllium Copper, Gold Plated
Connector Body: Brass, Gold Plated
Crimp Ferrule: Copper, Nickel Plated
Insulators: PTFE
Specifications
Cable Type
Impedance
Frequency Range
Capacitance per 1ft (0.305m)
Insulation Resistance
Insulator Withstand
Temperature Range
Jacket
Cable O.D. (inches)
Center Conductor (mm)
RG58C/U
50Ω
DC - 3GHz
30.8 pF
≥
1000 MΩ
750V
-65º C to +165ºC (-85ºF to +329ºF)
PVC2
0.193” (4.9mm)
19 x .18 tinned copper
RG316/U
50Ω
DC - 3GHz
29.0 pF
≥
1000 MΩ
750V
-65º C to +165ºC (-85ºF to +329ºF)
FEP
0.098” (2.5mm)
7 x .18 silver coated copper covered steel
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D2018855 Rev. 002
Page 1 of 2

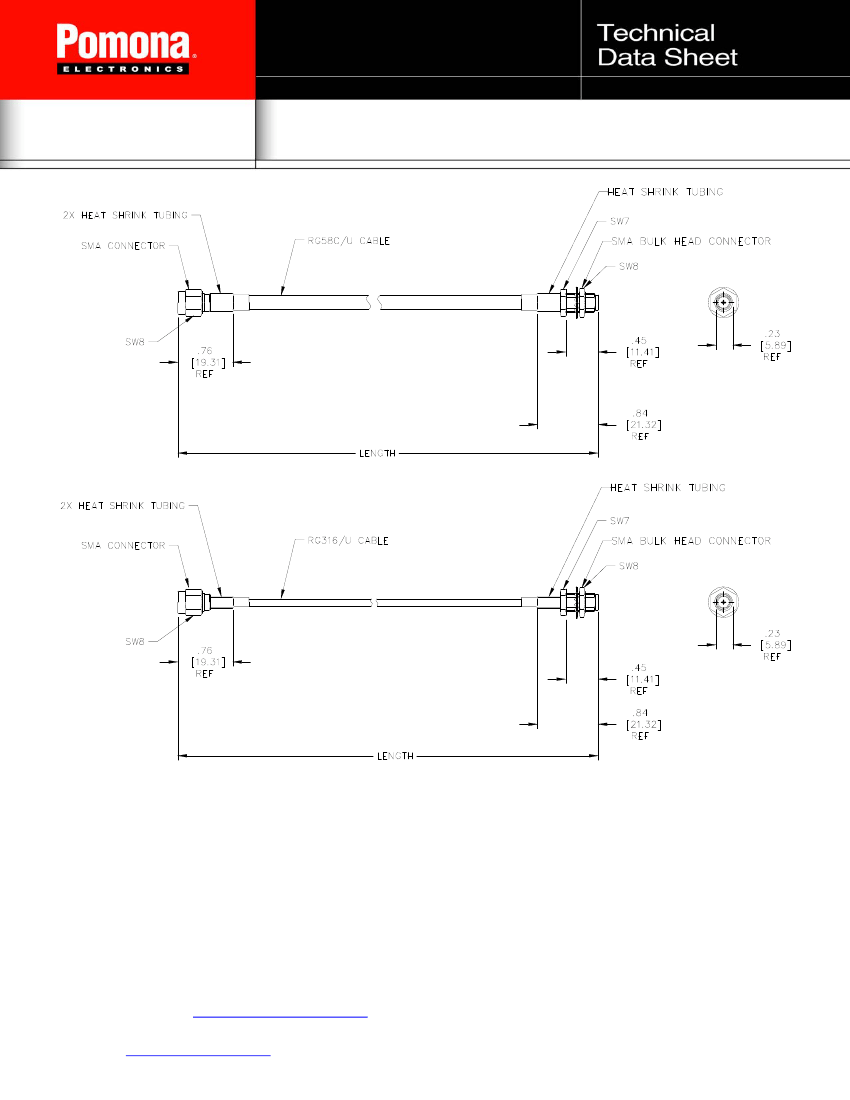

Model 73070
SMA Plug to SMA Bulkhead Jack, RG316/U, RG58C/U
Ordering Information
Model:
73070
Cable Designators:
C
= RG58C/U,
BB
= RG316/U
Standard Lengths:
12”, 24”, 36”, 48”, 60”
- 12” ± .157” (305mm ± 4mm)
- 24” ± .275” (610mm ± 7mm)
- 36” ± .394” (914mm ± 10mm)
- 48” ± .512” (1219mm ± 13mm)
- 60” ± .630” (1524mm ± 16mm)
Ordering Example:
73070-C-48,
Cable is RG58C/U with length of 48” (1219mm)
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D2018855 Rev. 002
Page 2 of 2
