145104-08-12.00: DescriptionRF cable assemblies smb R/A plug to R/A plug rg178 12"; CategoryThe connector; File Size89KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

145104-08-12.00 Overview

RF cable assemblies smb R/A plug to R/A plug rg178 12"

145104-08-12.00 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	RG-178
Frequency Range	DC to 4 GHz
Impedance	75 Ohms
Length	12 i
Connector A Body Style	Right Angle
Connector A Series	SMB
Connector B Body Style	Right Angle
Connector B Series	SMB
Connector A Gende	Plug (Male)
Connector A Polarity	Normal
Connector B Gende	Plug (Male)
Connector B Polarity	Normal

Preview

Download Datasheet

View All

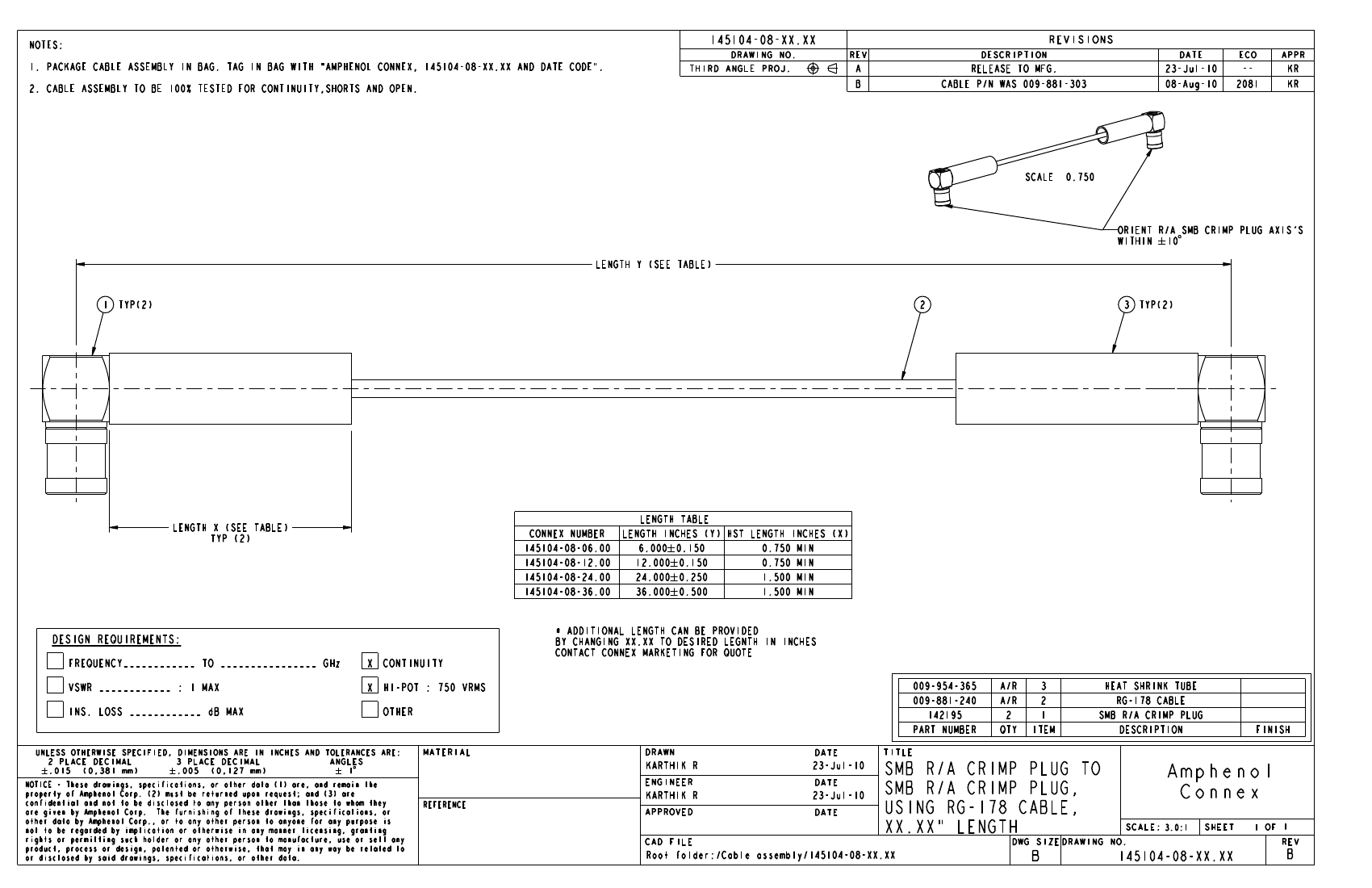

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY,SHORTS AND OPEN.

145104-08-XX.XX AND DATE CODE".

145104-08-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REV

DESCRIPTION

REVISIONS

DATE

ECO

APPR

RELEASE TO MFG.

CABLE P/N WAS 009-881-303

23-Jul-10

08-Aug-10

2081

SCALE

0.750

ORIENT R/A SMB CRIMP PLUG AXIS'S

WITHIN

LENGTH Y (SEE TABLE)

TYP(2)

3 TYP(2)

LENGTH X (SEE TABLE)

TYP (2)

LENGTH TABLE

CONNEX NUMBER

145104-08-06.00

145104-08-12.00

145104-08-24.00

145104-08-36.00

LENGTH INCHES (Y) HST LENGTH INCHES (X)

6.000 0.150

12.000 0.150

24.000 0.250

36.000 0.500

0.750 MIN

1.500 MIN

DESIGN REQUIREMENTS:

FREQUENCY____________ TO ________________ GHz

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

CONTINUITY

HI-POT : 750 VRMS

OTHER

* ADDITIONAL LENGTH CAN BE PROVIDED

BY CHANGING XX.XX TO DESIRED LEGNTH IN INCHES

CONTACT CONNEX MARKETING FOR QUOTE

009-954-365

009-881-240

142195

PART NUMBER

A/R

QTY

ITEM

HEAT SHRINK TUBE

RG-178 CABLE

SMB R/A CRIMP PLUG

DESCRIPTION

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO

NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

.015 (0,381 mm)

.005 (0,127 mm)

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

DATE

TITLE

KARTHIK R

ENGINEER

REFERENCE

23-Jul-10

DATE

KARTHIK R

APPROVED

23-Jul-10

DATE

SMB R/A CRIMP PLUG TO

SMB R/A CRIMP PLUG,

USING RG-178 CABLE,

XX.XX" LENGTH

DWG SIZE

DRAWING NO.

Amphenol

Connex

SCALE:

3.0:1

SHEET

REV

CAD FILE

Root folder:/Cable assembly/145104-08-XX.XX

145104-08-XX.XX

145104-08-12.00 Related Products

	145104-08-12.00	145104-08-24.00	145104-08-06.00	145104-08-36.00
Description	RF cable assemblies smb R/A plug to R/A plug rg178 12"	RF cable assemblies smb R/A plug to R/A plug rg178 24"	RF cable assemblies smb R/A plug to R/A plug rg178 6"	RF cable assemblies smb R/A plug to R/A plug rg178 36"
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes
Cable Type	RG-178	RG-178	RG-178	RG-178
Frequency Range	DC to 4 GHz	DC to 4 GHz	DC to 4 GHz	DC to 4 GHz
Impedance	75 Ohms	75 Ohms	75 Ohms	75 Ohms
Length	12 i	24 i	6 i	36 i
Connector A Body Style	Right Angle	Right Angle	Right Angle	Right Angle
Connector A Series	SMB	SMB	SMB	SMB
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	SMB	SMB	SMB	SMB
Connector A Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector A Polarity	Normal	Normal	Normal	Normal
Connector B Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Polarity	Normal	Normal	Normal	Normal
