1314-2-80-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1314-2-80-12

1314-2-80-12: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1314-2-80-12 Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking

1314-2-80-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
body width	0.136 inch
subject depth	0.308 inch
body length	2.014 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1314
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.9596 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
Evacuation force-minimum value	.14734 N
Base Number Matches	1

Preview

Download Datasheet

View All

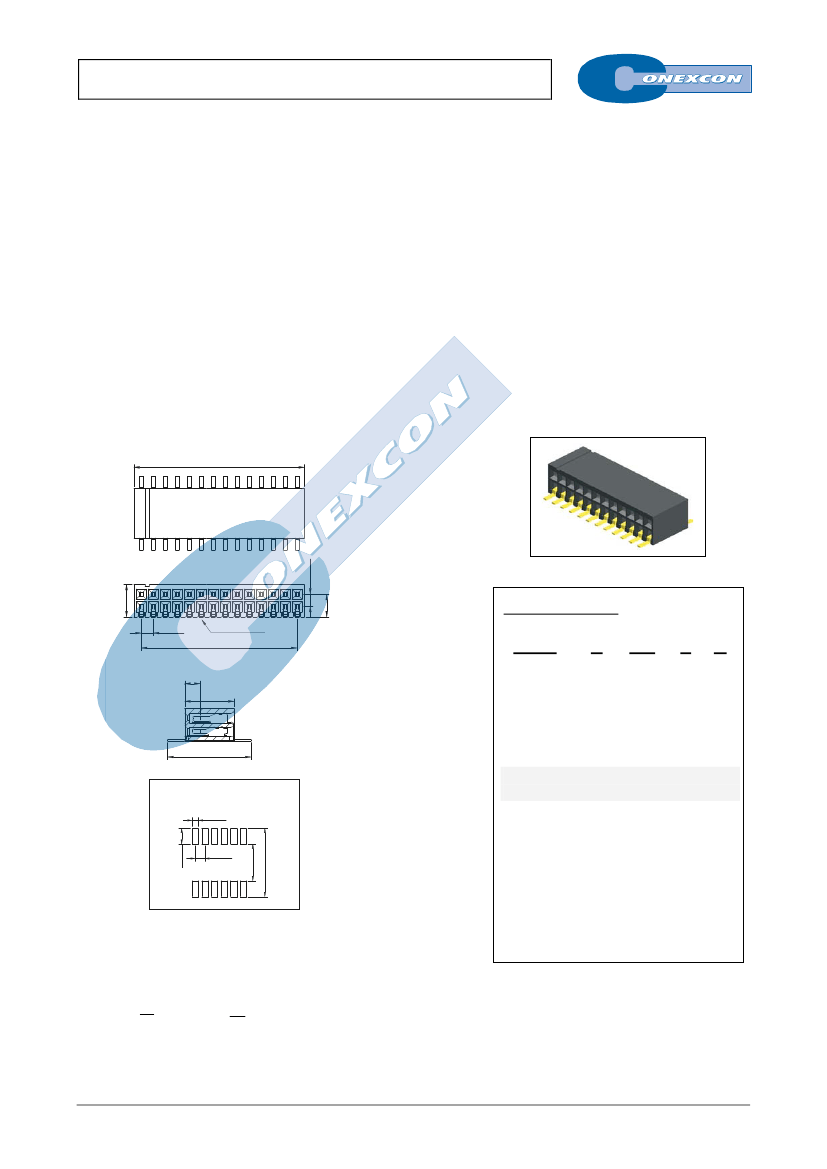

DUAL ROW RIGHT ANGLE SMT SOCKET

1314 SERIES.

1.27 x 1.27 mm (0.050 x 0.050”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits

Mates with pin headers 1.27 mm pitch 1360, 1362, 1365,

1366, 1368, 1369 and 1375 series

Suggested Mating Pin length: 2.0 to 5.0 mm.

Accept 0,40 mm. square pin

Dual beam contact with different plating



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Insertion force receptacle/plug: < 0,20 Kgf/pin

Unmating force receptacle/plug: > 0,015 Kgf/pin

Contact retention force to housing: > 0,15 Kgf/pin

Durability: 50 cycles

Dimension Information

B ±0.38

3.45

1.27

2.41

Ordering Information:

1.27

Pin 0.43x0.15

A ±0.25

1314 -

T-

XX- 1

1.1

5.23

1. Connector Series

2. (T) Contact Plating

7.83



4.84

9.05

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

RECOMMENDED PCB LAYOUT

0.83

2.10

1.27

3. (XX) Number of circuits



Available in 04 through 80 circuits

4. (E) Connector Packaging

RECOMMENDED PCB LAYOUT

E =

Tube + Pad

E =

Reel + Pad

DIMENSIONS:





1.27















1.27



 

0.35







Number of circuits

A-XX

FULL LINE CATALOGUE
