ASD2-75.000MHZ-E-C-S-T2 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> ASD2-75.000MHZ-E-C-S-T2

Preview

ASD2-75.000MHZ-E-C-S-T2: DescriptionHCMOS Output Clock Oscillator, 0.75MHz Min, 75MHz Max, 75MHz Nom,; CategoryPassive components oscillator; File Size105KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASD2-75.000MHZ-E-C-S-T2 Overview

HCMOS Output Clock Oscillator, 0.75MHz Min, 75MHz Max, 75MHz Nom,

ASD2-75.000MHZ-E-C-S-T2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1220769212
Reach Compliance Code	compliant
YTEOL	7.13
Other features	TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR, 7 INCH
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	75 MHz
Minimum operating frequency	0.75 MHz
Nominal operating frequency	75 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.08,65
physical size	2.5mm x 2.0mm x 0.95mm
power supply	2.5 V
Certification status	Not Qualified
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

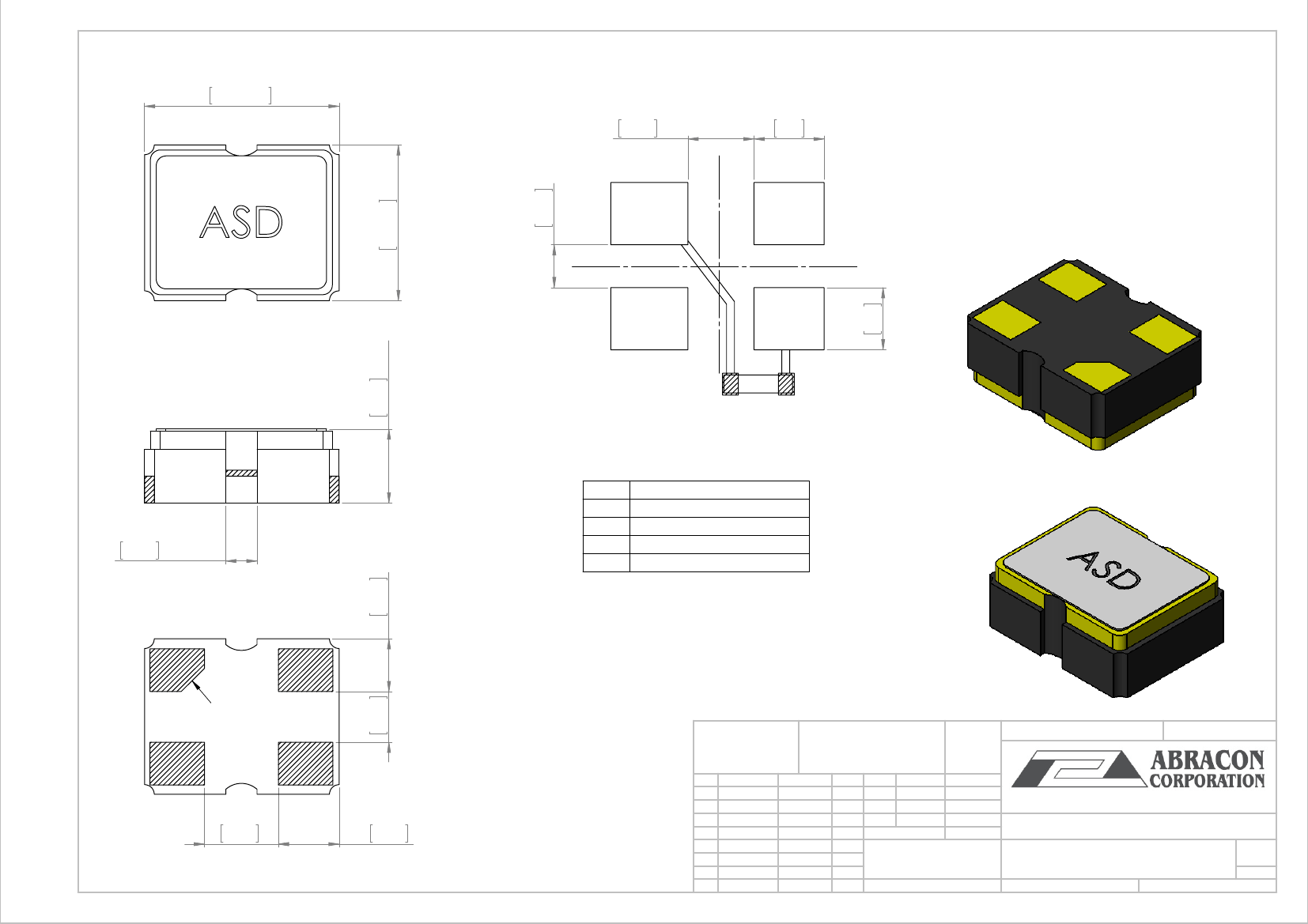

0.098 ±0.004

2.5 ±0.1

Recommended land pattern

4

3

0.033

0.85

0.035

0.9

0.079 ±0.004

2 ±0.1

0.022

0.55

1

2

0.037 MAX

0.95

0.01 uF

0.016

0.40

0.03

0.68

1

2

3

4

FUNCTION

Tri-state (Stand-by)

GND/case

Output

V

dd

1

2

Note1: Recommended using approximately 0.01uF

bypass capacitor between PIN 2 and 4.

0.03

0.65

C0.3

0.031

0.8

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

4

0.037

0.95

3

DRAWN

SAAZVAT

XXXXXX

0.03

0.78

CHK'D

APPV'D

MFG

Q.A

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

LOW VOLTAGE HCMOS SURFACE-MOUNT

CRYSTAL CLOCK OSCILLATOR

MATERIAL:

Bottom view

WEIGHT:

DWG NO.

ASD

SHEET 1 OF 1

A3

SCALE:25:1
