4610T-101-2320BBD datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4610T-101-2320BBD

4610T-101-2320BBD: DescriptionArray/Network Resistor, 1.25W, 232ohm, 0.1% +/-Tol, -50,50ppm/Cel; CategoryPassive components The resistor; File Size154KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4610T-101-2320BBD Overview

Array/Network Resistor, 1.25W, 232ohm, 0.1% +/-Tol, -50,50ppm/Cel

4610T-101-2320BBD Parametric

Parameter Name	Attribute value
Objectid	1193068486
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Thin Film
Lead length	3.43 mm
Manufacturer's serial number	4610(101)
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.08 mm
Package length	25.35 mm
Package form	SIP
Package width	2.49 mm
Rated power dissipation(P)	1.25 W
resistance	232 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4610(101)
Temperature Coefficient	50 ppm/°C
Tolerance	0.1%

Preview

Download Datasheet

View All

Features

Low profile provides compatibility with

DIPs

Also available in medium profile (4600S -

.250”) and high profile (4600K - .350”)

Marking on contrasting background

Custom circuits available per factory

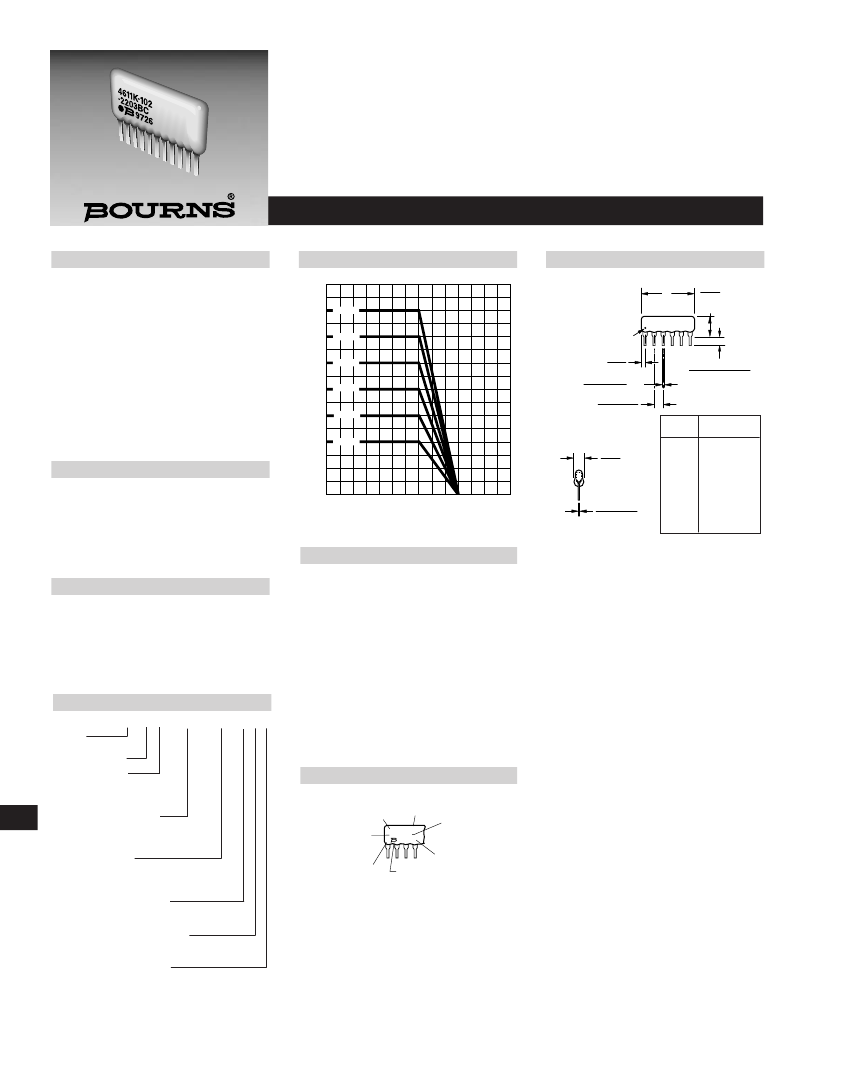

4600T, S, K Series - Thin Film Conformal SIP

Product Characteristics

Resistance Range

Bussed ...................49.9 to 100K ohms

Isolated ......................20 to 200K ohms

Series.........................20 to 100K ohms

Resistance Tolerance

............................±0.1%, ±0.5%, ±1%

Temperature Coefficient

....................±100ppm/°C, ±50ppm/°C,

±25ppm/°C

Temperature Range

...................................-55°C to +125°C

Insulation Resistance

..................10,000 megohms minimum

TCR Tracking ..........................±5ppm/°C

Environmental Characteristics

Thermal Shock and

Power Conditioning ......................0.1%

Short Time Overload ...................... 0.1%

Terminal Strength ........................ 0.25%

Resistance to Soldering Heat ........ 0.1%

Moisture Resistance ...................... 0.1%

Life ................................................ 0.5%

Physical Characteristics

Body Material Flammability

...........................Conforms to UL94V-0

Body Material........................Epoxy resin

Package

POWER TEMPERATURE

PACKAGE

Power Temp. Derating Curve

(Low Profile,

CURVE (Low Profile, 4600T)

DERATING

4600T)

1.75

1.50

1.25

1.00

.75

.50

.25

4614T

4612T

4610T

4608T

4606T

Product Dimensions

4600T

MAXIMUM

5.08

(.200)

MAX.

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

2.49

MAX.

(.098)

WATTS

3.43 + .38/ - .25

(.135 + .015/ - .010)

4604T

125

150

AMBIENT TEMPERATURE (

C )

.254

.050

TYP.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

HOW TO ORDER

46 11 T - 101 - 2222 F A B

Model

(46 = Conformal SIP)

Number of Pins

Physical Config.

•T = Low Profile Thin Film

•S = Medium Profile Thin Film

•K = High Profile Thin Film

Electrical Configuration

•101 = Bussed

•102 = Isolated

•106 = Series

Resistance Code

•First 3 digits are significant

•Fourth digit represents the

number of zeros to follow.

Absolute Tolerance Code

•B = ±0.1%

•F = ±1%

•D = ±0.5%

Temperature Coefficient Code

•A = ±100ppm/°C •C = ±25ppm/°C

•B = ±50ppm/°C

Ratio Tolerance (Optional)

•A = ±0.05% to R1 •D = ±0.5% to R1

•B = ±0.1% to R1

Consult factory for other available options.

Package Power Ratings at 70°C

4604 ...... 0.50.......... 0.60........ 0.8 watts

4605 ...... 0.63.......... 0.75........ 1.0 watts

4606 ...... 0.75.......... 0.90........ 1.2 watts

4607 ...... 0.88.......... 1.05........ 1.4 watts

4608 ...... 1.00.......... 1.20........ 1.6 watts

4609 ...... 1.13.......... 1.35........ 1.8 watts

4610 ...... 1.25.......... 1.50........ 2.0 watts

4611 ...... 1.38.......... 1.65........ 2.2 watts

4612 ...... 1.50.......... 1.80........ 2.4 watts

4613 ...... 1.63.......... 1.95........ 2.6 watts

4614 ...... 1.75.......... 2.10........ 2.8 watts

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

TYPICAL PART MARKING

Represents total content. Layout may vary.

PART

NUMBER

CIRCUIT

4611K-101

2203BC

RESISTANCE

YYWW

CODE (4 DIGIT) •

ABSOLUTE

TOLERANCE

CODE

DATE CODE

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

316

Specifications are subject to change without notice.
