D-Sub
Text Connectors - XM3-L/XM2-L/XM4K/XM4L
The D-sub Connector Series Enters
a New Era with Lead-free Products.
■
Determine anchor screw diameters at a
glance.
■
Greatly simplified anchor combinations.
■
Shielded against EMI.
■
EMI/RFI shielded hoods available.
■

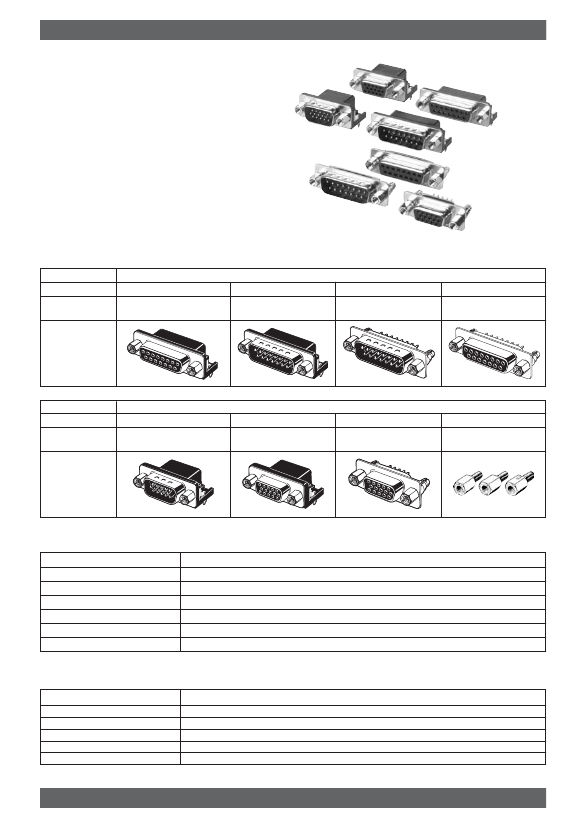

Connectors
D-sub Connectors
XM3B-L
Sockets with Right-angle
DIP Terminals
XM2C-L
Plugs with Right-angle
DIP Terminals
XM2E-L
Plugs with Straight DIP
Terminals
XM2F-L
Sockets with Straight
DIP Terminals
Classification
Model
Type
Appearance
Classification
Model
Type
Appearance
XM4K
Plugs with Right-angle
DIP Terminals
High-density D-sub Connectors
XM4L
XM4L
Sockets with Right-angle Sockets with Straight DIP
DIP Terminals
Terminals
Anchors
XM4Z
Anchor 2 or 3
■
Ratings and Characteristics
3 A (at 20˚C)
300 VAC
20 mΩ max. (at 20 mV, 100 mA max.)
1,000 MΩ min. (at 500 VDC for 1 min)
1,000 VAC for 1 min (leakage current: 1 mA max.)
100 times
- 25 to 105˚C (with no icing at low temperature)
Rated current
Rated voltage
Contact resistance
Insulation resistance
Withstand voltage
Insertion durability
Operating temperature
■
Materials
Fiber-glass reinforced PBT resin (UL94V-0)/black
Phosphor bronze
Brass
Steel
Brass
Brass
Housing
Socket contact
Plug contact
Shell
Anchors
Lock Pin Grounding Fixture
1042
Text Connectors - XM3-L/XM2-L/XM4K/XM4L
D-Sub
■
Finish
Mating end
Terminal
Nickel base, flash gold plated
Nickel base, flash gold plated
Nickel plated
Nickel plated
Nickel plated
Tin plated
Contact
Shell
Anchors
Grounding Fixture
Straight
Right angle
■
Ordering Information
Appearance
D-sub Sockets with Right-angle DIP Terminals
Accessories
No. of contacts
9
15
25
No anchors
XM3B-0942-502L
XM3B-1542-502L
XM3B-2542-502L
Anchor 2 (XM4Z-0011) M2.6 x 0.45
XM3B-0942-112L
XM3B-1542-112L
XM3B-2542-112L
Anchor 2 (XM4Z-0013) #4-40 UNC
XM3B-0942-132L
XM3B-1542-132L
XM3B-2542-132L
D-sub Plugs with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
9
15
25
No anchors
XM2C-0942-502L
XM2C-1542-502L
XM2C-2542-502L
Anchor 2 (XM4Z-0011) M2.6 x 0.45
XM2C-0942-112L
XM2C-1542-112L
XM2C-2542-112L
Anchor 2 (XM4Z-0013) #4-40 UNC
XM2C-0942-132L
XM2C-1542-132L
XM2C-2542-132L
D-sub Plugs with Straight DIP Terminals
Appearance
Accessories
No. of contacts
9
15
25
Without ground pins
XM2E-0940-L
XM2E-1540-L
XM2E-2540-L
No anchors
XM2E-0940-502L
XM2E-1540-502L
XM2E-2540-502L
Anchor 2 (XM4Z-1011)
M2.6 x 0.45
XM2E-0940-112L
XM2E-1540-112L
XM2E-2540-112L
Anchor 2 (XM4Z-1013)
#4-40 UNC
XM2E-0940-132L
XM2E-1540-132L
XM2E-2540-132L
D-sub Plugs with Straight DIP Terminals
Appearance
Accessories
No. of contacts
9
15
25
Without ground pins
XM2E-0940-L
XM2E-1540-L
XM2E-2540-L
No anchors
XM2E-0940-502L
XM2E-1540-502L
XM2E-2540-502L
Anchor 2 (XM4Z-1011)
M2.6 x 0.45
XM2E-0940-112L
XM2E-1540-112L
XM2E-2540-112L
Anchor 2 (XM4Z-1013)
#4-40 UNC
XM2E-0940-132L
XM2E-1540-132L
XM2E-2540-132L
Note:
For other models with Anchors, contact your OMRON representative.
1043
Connectors
D-Sub
Text Connectors - XM3-L/XM2-L/XM4K/XM4L
High-density D-sub Plugs with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
15
No anchors
XM4K-1542-502
Anchor 2 (XM4Z-0011) M2.6 x 0.45
XM4K-1542-112
Anchor 2 (XM4Z-0013) #4-40 UNC
XM4K-1542-132
High-density D-sub Sockets with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
15
No anchors
XM4L-1542-502
Anchor 2 (XM4Z-0011) M2.6 x 0.45
XM4L-1542-112
Anchor 2 (XM4Z-0013) #4-40 UNC
XM4L-1542-132
High-density D-sub Sockets with Right-angle DIP Terminals
Appearance
Accessories
No. of contacts
15
No anchors
XM4L-1541-501
Anchor 2 (XM4Z-0011) M2.6 x 0.45
XM4L-1541-112
Anchor 2 (XM4Z-0013) #4-40 UNC
XM4L-1541-132
Note:
For other models with Anchors, contact your OMRON representative.

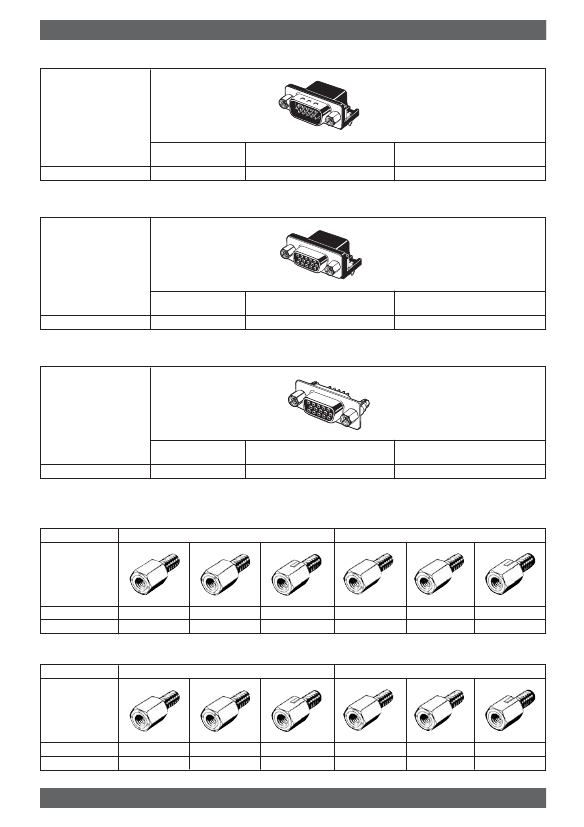

Anchor 2 (Screw Head Length: 5.8 mm)
Type
Appearance
For right-angle DIP terminals
For straight DIP terminals
Lock screw
Model
M2.6 x 0.45
XM4Z-0021
M3 x 0.5
XM4Z-0022
#4-40 UNC
XM4Z-0023
M2.6 x 0.45
XM4Z-1021
M3 x 0.5
XM4Z-1022
#4-40 UNC
XM4Z-1023
Anchor 3 (Screw Head Length: 4.8 mm)
Type
Appearance
For right-angle DIP terminals
For straight DIP terminals
Lock screw
Model
M2.6 x 0.45
XM4Z-0021
M3 x 0.5
XM4Z-0022
#4-40 UNC
XM4Z-0023
M2.6 x 0.45
XM4Z-1021
M3 x 0.5
XM4Z-1022
#4-40 UNC
XM4Z-1023
1044
Text Connectors - XM3-L/XM2-L/XM4K/XM4L
D-Sub
■

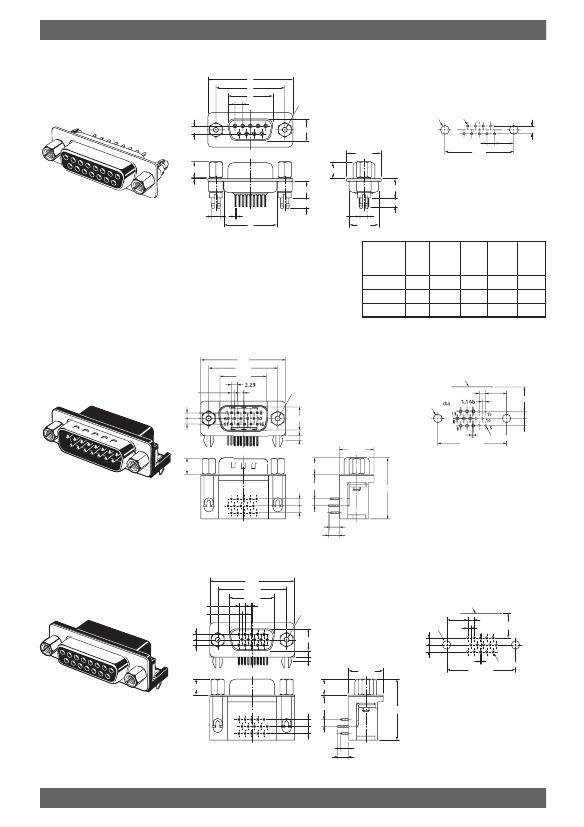

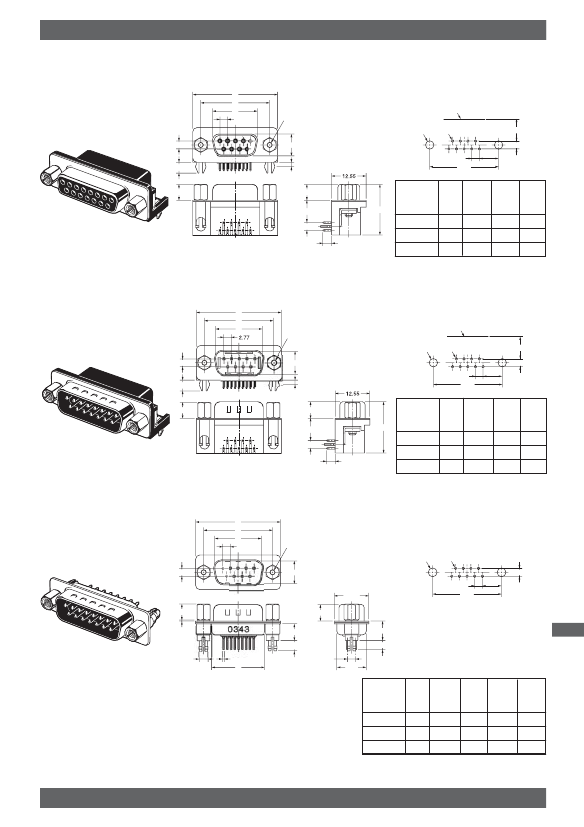

Dimensions
A
D-sub Sockets with Right-angle DIP Terminals
Mounting holes (t = 1.6 mm, bottom view)
Board edge
#4-40 UNC
Two, 3.05±
0.1
dia.
2.84
7.9
2.77±
0.1
(3.9)
1.6
5.8
5.8
18.4
B±
0.1
D±
0.1
N, 1±
0.1
dia.
8.1±
0.1
2.84±
0.1
XM3B-0942-132L
XM3B-1542-132L
XM3B-2542-132L
B
C
2.77
8.1
2.84
3.18
No. of
contacts
(N)
9
15
25
A
B
C
D
30.8 24.99
39.1 33.32
53.0 47.04
16.33 6.96
24.66 6.96
38.38 6.91
D-sub Plugs with Right-angle DIP Terminals
A
Mounting holes (t = 1.6 mm, bottom view)
Board edge
#4-40 UNC
Two, 3.05±
0.1
dia.
N, 1±
0.1
dia.
8.1±
0.1
2.84±
0.1
2.77±
0.1
B±
0.1
1.6
D±
0.1
XM2C-0942-132L
XM2C-1542-132L
XM2C-2542-132L
2.84
B
C
8.3
(3.9)
5.8
6
18.6
8.1
2.84
3.18
No. of
contacts
(N)
9
15
25
A
B
C
D
30.8 24.99
39.1 33.32
53.0 47.04
16.92 6.96
25.25 6.96
38.96 6.91
D-sub Plugs with Straight DIP Terminals
A
XM2E-0940-132L
XM2E-1540-132L
XM2E-2540-132L
2.84
B
C
2.77
#4-40 UNC
Mounting holes (t = 1.6 mm, bottom view)
Two, 3.2 +
0.1
dia. N, 1±
0.1
dia.
−0
8.3
2.77±
0.1
B±
0.1
E±
0.1
2.84±
0.1
12.55
5.8
0.35
6
7
3.4
2.84
10.7
6.2
3.8
3.25
0.6 dia.
D
No. of
contacts
(N)
9
15
25
A
B
C
D
E
30.8 24.99
39.1 33.32
53.0 47.04
16.92 19.23
25.25 27.56
38.96 41.28
6.96
6.96
6.91
1045
Connectors
D-Sub
Text Connectors - XM3-L/XM2-L/XM4K/XM4L
D-sub Sockets with Straight DIP Terminals
XM2F-0940-132L
XM2F-1540-132L
XM2F-2540-132L
2.84
A
B
C
2.77
#4-40 UNC
Mounting holes (t = 1.6 mm, bottom view)
0.1
Two, 3.2 +
0
dia. N, 1±
0.1
dia.
−
7.9
2.77±
0.1
B±
0.1
E±
0.1
2.84±
0.1
12.55
5.8
0.35
5.8
0343
6.2
3.8
7
3.6
2.84
10.7
3.25
0.6 dia.
D
No. of
contacts
(N)
9
15
25
A
B
C
D
E
30.8 24.99
39.1 33.32
53.0 47.04
16.33 19.23
24.66 27.56
38.38 41.28
6.96
6.96
6.91
High-density D-sub Plugs with Right-angle DIP Terminals
30.8
XM4K-1542-132
1.145
1.98
24.99
16.92
0.25
#4-40 UNC
Mounting holes (t = 1.6 mm, bottom view)
Board edge
2.29±
0.1
Two, 3.05±
0.1
8.3
7.67±
0.1
8.89±
0.1
2.54±
0.1
2.54±
0.1
0.25
Fifteen, 1 +
0
dia.
n, 1.0
−
0.1
24.99±
0.1
12.55
6
1.98
1.6
5.8
2.54
8.89
22.2
2.54
2.54
3.5
(3.94)
High-density D-sub Sockets with Right-angle DIP Terminals
XM4L-1542-132
2.29
1.145
1.98
5
10
15
6
11
1
30.8
24.99
16.33
0.25
#4-40 UNC
Mounting holes (t = 1.6 mm, bottom view)
Board edge
7.67±
0.1
Two, 3.05±
0.1
dia.
7.9
2.54±
0.1
2.54±
0.1
15
10
5
1.145
2.29±
0.1
8.89±
0.1
11
6
1
1.98
1.6
5.8
5.8
12.55
0.25
Fifteen, 1.0 +
0.1
dia.
−0
24.99±
0.1
2.54
8.89
22.2
2.54
2.54
3.2
(3.94)
1046
