JS-W-1255-11-RA-GD datasheet, PDF

Datasheet> All Categories > The connector> The connector> JS-W-1255-11-RA-GD

JS-W-1255-11-RA-GD: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

JS-W-1255-11-RA-GD Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle

JS-W-1255-11-RA-GD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1296535709
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.142 inch
subject depth	0.213 inch
body length	0.606 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	JS-W
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.2446 mm
Termination type	SOLDER
Total number of contacts	11

Preview

Download Datasheet

View All

SPECIFICATIONS

Voltage Rating:

Current Rating:

Withstanding:

Insulation Resistance:

Temperature Range:

P.C.B. Thickness:

P.C.B Hole:

Material:

Pitch:

Poles:

100V AC, DC

800V AC/min.

1,000M Ohm min

-25~85ºC

0.8mm

ø0.5mm±0.05

Post: Brass, Tin/Plated

Base: Nylon 66, UL94V-0

1.25mm (.049”)

2~15

Dimensions

1.25

2.50

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

15.00

16.25

17.50

4.15

5.40

6.65

7.90

9.15

10.40

11.65

12.90

14.15

15.40

16.65

17.90

19.15

20.40

Finish

TN=Tin

GD=Gold

RoHS compliant

Rev.

Description

A TBL, PN

Date

6/02/08

Approved

Greg

Series

JS-W

Pluggable

Connector

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Type

1255

1.25mm Pitch

Positions

02-15 See Chart

Circuits

Mounting

ST=Straight

RA=Right Angle

Date

04/16/08

04/16/08 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

JS-W-1255-06-RA-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

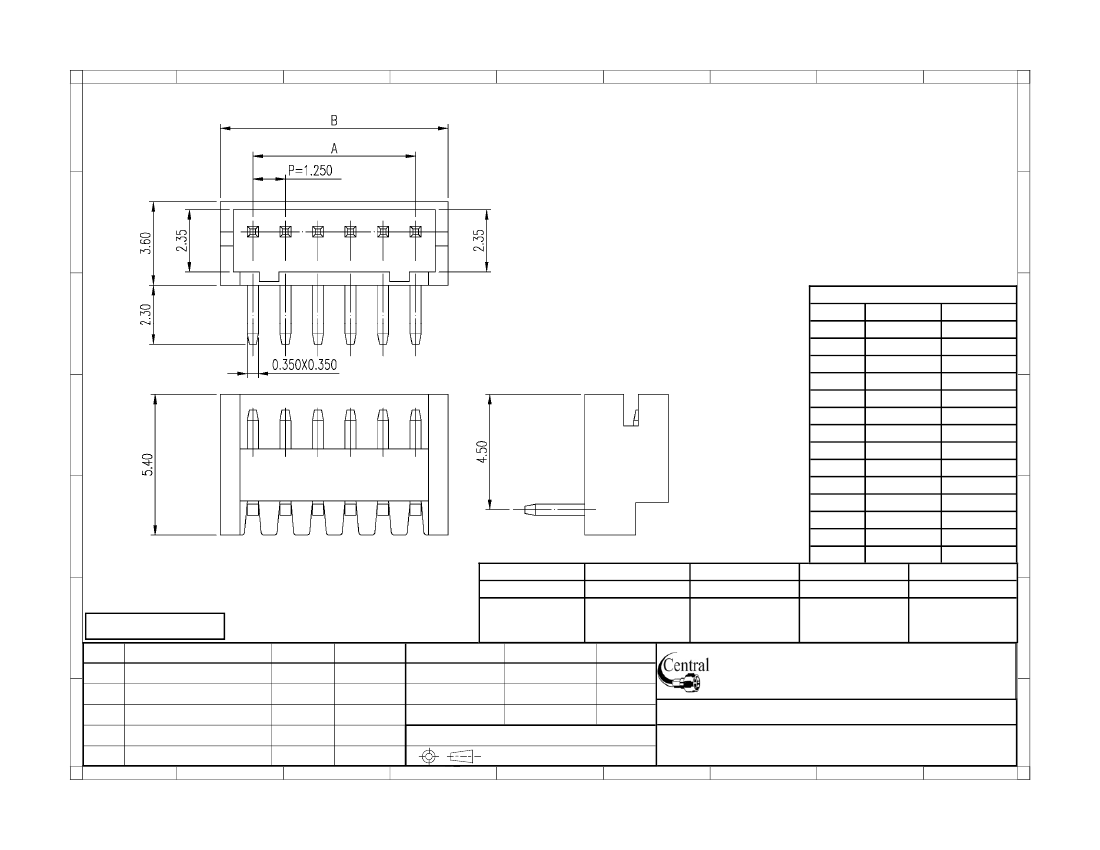

Description: 1.25mm (.049”) Wafer Right Angle
