MWDM2L-9P-6C3-.375B datasheet, PDF

Datasheet> All Categories > The connector> MWDM2L-9P-6C3-.375B

MWDM2L-9P-6C3-.375B: DescriptionD-sub micro-D connectors micr D met SH pgtail 9cnt P#26awg.375"; CategoryThe connector; File Size347KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

MWDM2L-9P-6C3-.375B Overview

D-sub micro-D connectors micr D met SH pgtail 9cnt P#26awg.375"

MWDM2L-9P-6C3-.375B Parametric

Parameter Name	Attribute value
Manufacture	Glenai
Product Category	D-Sub Micro-D Connectors
RoHS	Yes

Preview

Download Datasheet

View All

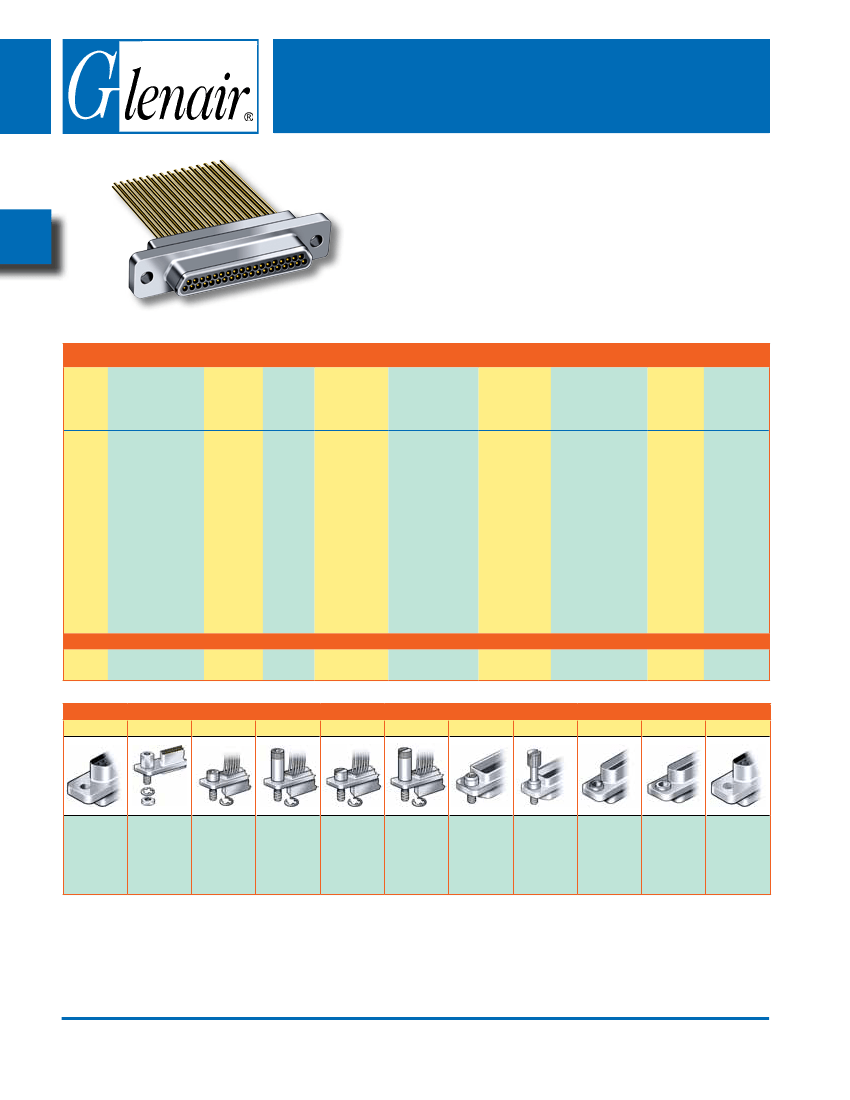

Micro-D

Harness

Micro-D Metal shell

MWDM uninsulated Wire Pigtails

Micro-D Uninsulated Pigtails–These

connectors feature

gold-plated TwistPin contacts and mil spec crimp

termination to gold-plated single strand copper wire.

Suitable for soldering or splicing applications, the wire

leads can be ordered either gold-plated or solder-dipped.

New One-Piece Socket Contact–An

“integral tail” socket

contact is now standard on all socket connectors ordered

with 24 AWG or 25 AWG, up to one inch of wire. This

phos bronze contact eliminates the crimp joint and offers

greater rigidity.

hoW to oRDER MEtAL shELL PIGtAILs, uNINsuLAtED WIRE MICRo-D CoNNECtoRs

shell Material

and Finish

Insulator Contact

Material Layout

– LCP

30%

Glass-

Filled

Liquid

Crystal

Polymer

series

Contact

type

– Pin

– Socket

Wire Gage

(AWG)

– #24 (.020")

– #25 (.018")

– #26 (.016")

Wire type

–

Single

Wire Finish

–

Solder-Dipped

–

Gold

Wire

Length

Inches

.125

.250

.375

.500

.750

1.000

2.000

Wire Length

In Inches.

“.500”

Specifies

Half Inch.

hardware

MWDM

Aluminum shell

– Cadmium

– Nickel

– Black

Anodize

– Gold

– Chem Film

stainless steel

shell

–

Passivated

51-2

100

Strand

Copper

Sample Part Number

P –

4 –

.250

MWDM

L –

MouNtING hARDWARE

Thru-Hole

Jackpost

Hex Head

Jackscrew

Hex Head

Jackscrew,

Extended

Slot Head

Jackscrew

Slot Head

Jackscrew,

Extended

Hex Head

Jackscrew

Non-

Removable

Slot Head

Jackscrew

Non-

Removable

Extended

Float Mount

For Front

Panel

Mounting

Float Mount

For Rear

Panel

Mounting

Threaded

Insert

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-12
