8399-16-72-1: DescriptionBoard Connector, 72 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8399-16-72-1 Overview

Board Connector, 72 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator

8399-16-72-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307760823
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.2 inch
subject depth	0.181 inch
body length	3.616 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8399
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.8006 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	72

Preview

Download Datasheet

View All

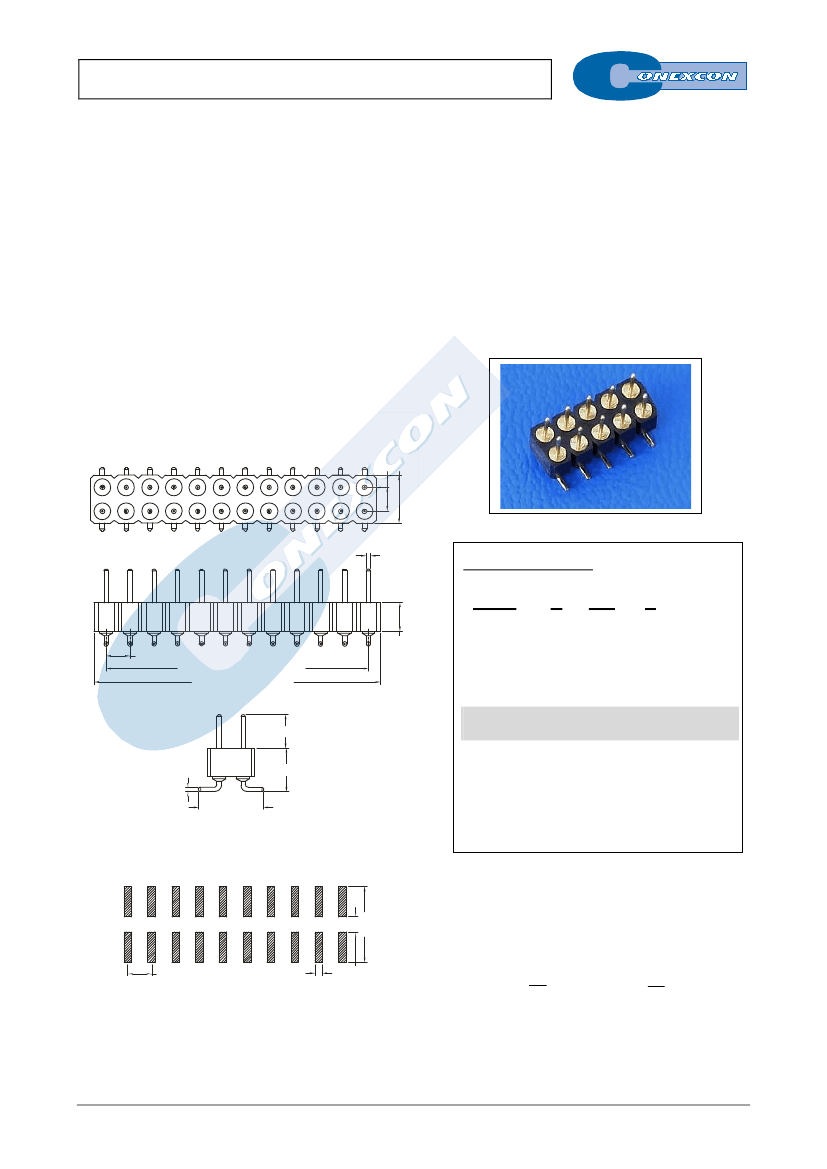

DUAL ROW VERTICAL PIN HEADER

8399 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch. Machined contact.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with sockets 2.54 mm pitch 8401, 8403, 8405,

8407, 8409, 8431, 8433 and 8436 series



0.47 round pin in contact area



Different plating options

Materials



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 0.80 Kgf



Durability: 500 Cycles

Dimension Information

2.54±0.10

2

4

1

3

ø0.47

5.08±0.15

Ordering Information:

8399 -

1

2.54±0.10

2.54 x Nº Cont.-2.54±0.20

2.54 x Nº Pos ±0.40

T-

2

XX-

3

1

4

3.00±0.15

1. Connector Series

2. (T) Contact Plating



T =

3.

gold flash over 30-50µ" Ni overall

3.60±0.25

Recommended Finish

4.60±0.25



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

ø0.47

6.94±0.25



Available in 4 through 80 circuits

MECANIZADO RECOMENDADO

(Tolerancia ±0.05)

8.00

DIMENSIONS:

1.60

2.54

0.80



XX



A

=

2.54



2

−

1







XX

= Number of circuits

B

=

2.54





XX





+

0.40



2







A-XX
