MHD / MDD / MDP
Connectors Series
PCB High Density Connectors
Hypertac Hyperboloid
Technology
®
Smiths Interconnect offers an extensive range of superior contact technologies suitable for standard and custom
solutions. Hypertac® (HYPERboloid conTACt) is the original superior performing hyperboloid contact technology
designed for use in all applications and in harsh and demanding environments where
high reliability and safety are critical. The inherent electrical and mechanical
characteristics of the Hypertac hyperboloid contact ensures unrivalled
performance in terms of reliability, number of mating cycles,
low contact force and minimal contact resistance.

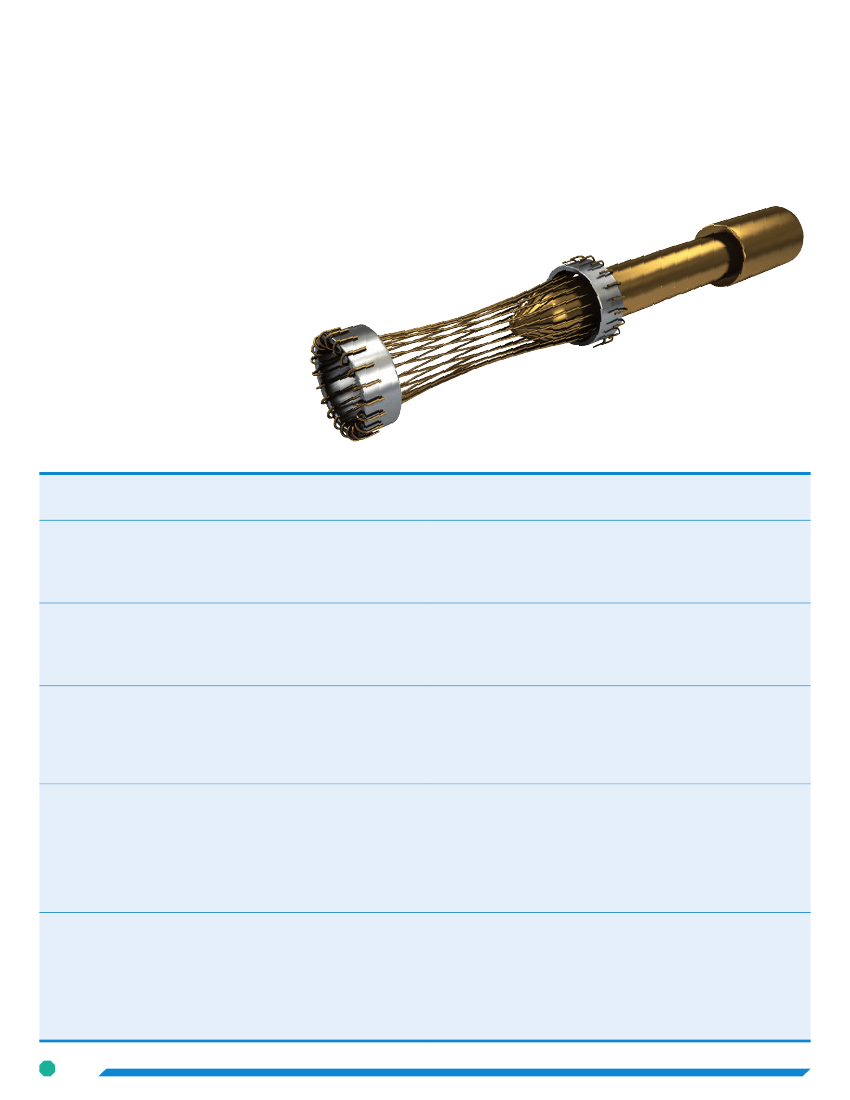

The shape of the contact sleeve is formed
by hyperbolically arranged contact
wires, which align themselves
elastically as contact lines around
the pin, providing a number of linear
contact paths.
Features
Low insertion/extraction forces
The angle of the socket wires allows tight control of the
pin insertion and extraction forces. The spring wires are
smoothly deflected to make line contact with the pin.
Benefits
High density interconnect systems
Significant reductions in size and weight of sub-system designs.
No additional hardware is required to overcome mating and un-
mating forces.
Long contact life
The smooth and light wiping action minimizes wear on the
contact surfaces. Contacts perform up to 100,000 insertion/
extraction cycles with minimal degradation in performance.
Low cost of ownership
The Hypertac contact technology will surpass most product
requirements, thus eliminating the burden and cost of having to
replace the connector or the entire subsystem.
Lower contact resistance
The design provides a far greater contact area and the wiping
action of the wires insures a clean and polished contact surface.
Our contact technology has about half
the resistance of conventional contact designs.
Low power consumption
The lower contact resistance of our technology results in a
lower voltage drop across the connector reducing the power
consumption and heat generation within the system.
Higher current ratings
The design parameters of the contact (e.g., the number,
diameter and angle of the wires) may be modified for any
requirement. The number of wires can be increased so the
contact area is distributed over a larger surface. Thus, the high
current carried by each wire because of its intimate line contact,
can be multiplied many times.
Maximum contact performance
The lower contact resistance of the Hypertac contact reduces
heat build-up; therefore Hypertac contacts are able to handle
far greater current in smaller contact assemblies without the
detrimental effects of high temperature.
Immunity to shock & vibration
The low mass and resultant low inertia of the wires enable
them to follow the most abrupt or extreme excursions of the pin
without loss of contact. The contact area extends 360° around
the pin and is uniform over its entire length.The 3 dimensional
symmetry of the Hypertac contact design guarantees electrical
continuity in all circumstances.
reliability under harsh environments
Harsh environmental conditions require connectors that will
sustain their electrical integrity even under the most demanding
conditions such as shock and vibration. The Hypertac contact
provides unmatched stability in demanding environments when
failure is not an option.
B
MHD/MDD/MDP Series
Contents
MHD Series
Technical characteristics .................................................................................................................................2
How to order................................................................................................................................................3
Modules configuration ....................................................................................................................................4
Standard plugging stages................................................................................................................................5
Termination styles .........................................................................................................................................6
Connector dimensions ...................................................................................................................................7
Guiding devices .......................................................................................................................................... 13
Contact board preparation details .................................................................................................................. 14
Power and high frequency contacts ............................................................................................................... 18
MDD Series
Technical characteristics ................................................................................................................................19
How to order.............................................................................................................................................. 20
Modules configuration .................................................................................................................................. 21
Standard plugging stages.............................................................................................................................. 22
Termination styles ....................................................................................................................................... 23
Connector dimensions ................................................................................................................................. 24
Guiding devices .......................................................................................................................................... 25
Contact board preparation details .................................................................................................................. 26
MDP Series
Technical characteristics ............................................................................................................................... 27
How to order.............................................................................................................................................. 28
Connector dimensions ................................................................................................................................. 29
Guide and termination styles ........................................................................................................................30
Contact board preparation details .................................................................................................................. 31
1
MHD Series
Technical Characteristics
Materials & Platings
Insulator
Frame
Contact
Guide
Contact plating
Diallyl Phtalate UL94V0
Aluminium Alloy
Copper Alloy
Brass + Ni plating or Stainless Steel
Ni + Au
Environmental
Temperature range
Safety of contact from extraction
Mating cycles
Withdrawal forces
Special contacts
- 55° C to +125° C
Statical 2 mm / 0.079”
Dynamical 1.80 mm / 0.071”
5000
≤ 0.5 N
According to NFC 93569
Electrical
Contact resistance
Current rating
Insulation
Voltage rating
Proof voltage
Contact diameter
Impedance
Signal ≤ 12 mΩ
Power ≤ 2 mΩ
Signal 3 A
Power 15 A
>10
4
MΩ
200 V
800 V
Signal 0.50 mm
Power 2.00 mm
Coaxial 50
Ω
2
MHD Series
How To Order
Code ESA
Code HyPErTAC
3401-065 01B
MH D
1
2
3
4
5
1
Series
2
Arrangement
052
100
1 3
1 7
1
1
3
4
4
4
1
1
1
1
1
1
55
57
152
200
252
300
22
26
352
400
44
46
1
3
4
4
4
9
1
1
1
1
1
1
5HA
2XA
1HB
7XB
6XA
3HB
3
Part - Polarity
Plating
Male Plug
Standard plating
Male Plug
Pretinned
Female Receptacle
Standard plating
Female Receptacle
Pretinned
4
Termination
Styles
0
90° termination, PCB thickness 1.60
2)
2
90° termination, PCB thickness 3.20
1
Straight termination, PCB thickness 3.20
2
SMT
3)
- PCB thickness 3.20
4
SMT
3)
- Uncentered PCB thickness 3.80
7
SMT
3)
- Uncentered PCB thickness 2.40
1
2
2
2
3
3
0
1
4
6
1
4
Male polarised, transverse
mount, standard plug
Female polarised, vertical mount
Female polarised, transverse mount
Female unpolarised, vertical mount
Female polarised, vertical mount
Female polarised, transverse mount
Male power or mass contact,
transverse mount
1
0
1
3
5
1
1
2
2
3
3
9
1)
90° termination, PCB thickness 2.40
Straight termination, PCB thickness 2.40
SMT
3)
- PCB thickness 1.60
SMT
3)
- PCB thickness 2.40
SMT
3)
- Uncentered PCB thickness 1.60
Female / male saver
4)
5
Guide Styles
1
2
5
0
3
0
Male polarised, vertical mount
Female polarised, vertical mount
Male unpolarised, transverse mount
Female polarised, vertical mount
Female all polarised, transverse mount
Female power or mass
contact, vertical mount
¼
turn, free connector
1 9 1
1) Available for receptacle connector
2) Available for plug connector
3) Surface Mount Termination
4) Consult us – PCB thickness is in mm
201
3
RF/Wirelessly
