2211R-27T: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

2211R-27T Overview

Board Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

2211R-27T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8084269919
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2211
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	27
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

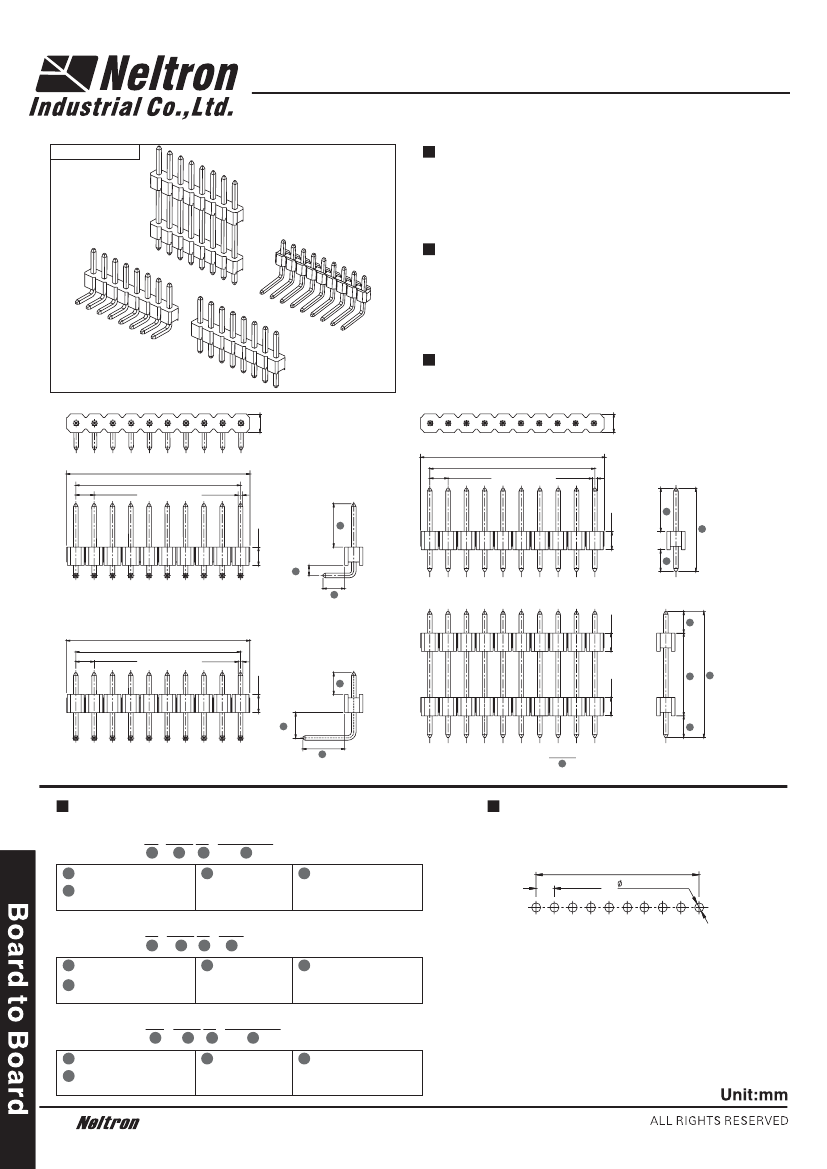

2.54mm Pin Header Single Row Straight & R/A Type

2211 Series

RoHS Compliant

Specifications

1. Current Rating: 3.0A AC/DC.

2. Voltage Rating: 250V AC/DC.

3. Contact Resistance: 20m ohm. max.

4. Insulation Resistance: 1000M ohm. Min.

5. Withstanding Voltage: 600V AC for one minute.

6. Operating Temperature Range: -40°C to +105°C.

Material and Finish

11 D

I-X

-23

221

R-X

-XX

-LP

221

1. Insulator:

Standard: PBT (F1) ( UL94V-0 );

High Temp Plastic : Nylon 6T (F2)( UL94V-0 ).

2. Insulator Height: 1.50/1.70/2.00/2.54/3.00mm,(Detail

Spec, Consult to Sales dept).

3. Contact: Copper Alloy.

4 . Plating: Gold Plated .

Feature

-XX

1. Design for Home Appliances, Aviation Electronics,

Automobile Electronics and Computer(PC) Peripherals.

2.54

2.54X(No. Of Contacts)±0.35

2.54X(No. Of Contacts-1)±0.15

2.54±0.05

0.64 SQ

2.54X(No. Of Contacts)±0.35

2.54X(No. Of Contacts-1)±0.15

2.54±0.05

0.64 SQ

6.00

6.0

2.54

11.54 ± 0.20

3.0

17.54

3.00

3.0

1.5

P/N: 2211R-XXG-LP

P/N: 2211S-XXG

2.54

23.54±0.20

2.54X(No. Of Contacts)±0.35

2.54X(No. Of Contacts-1)±0.15

2.54±0.05

0.64 SQ

2.54

3.00

3.50

2.54

3.0

6.0

P/N: 2211R-XXG

P/N: 2211DI-XXG-2354

A/B/C/D Dimension To Be Advised By Value Customers

Ordering Information

Recommended PCB Layout

2211S-XXG-XXXX

No. Of Contacts

(2 To 40 Ways)

Blank: Standard Type

XXXX: Special Length

C Dimension

2.54X(No. Of Contacts-1)±0.10

2.54±0.05

1.10±0.05 HOLE

S: Straight Single Row

G: Gold Plated

T: Tin Plated

2211R-XXG-LP

R: Right Angle Single

Row

No. Of Contacts

(2 To 40 Ways)

Blank: Standard Type

LP: Low Profile Type

XXXX: Special Length

A/B/C Dimension

T: Tin Plated

G: Gold Plated

2211DI-XXG-XXXX

DI: Double Insulator

No. Of Contacts

(2 To 40 Ways)

XXXX: Special Length

D Dimension

T: Tin Plated
