11S251S9A-06-XLY-60: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size155KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric View All

11S251S9A-06-XLY-60 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Plug

11S251S9A-06-XLY-60 Parametric

Parameter Name	Attribute value
Objectid	304408313
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.335 inch
body length	0.62 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	11S251S9A
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

Total Process Quality

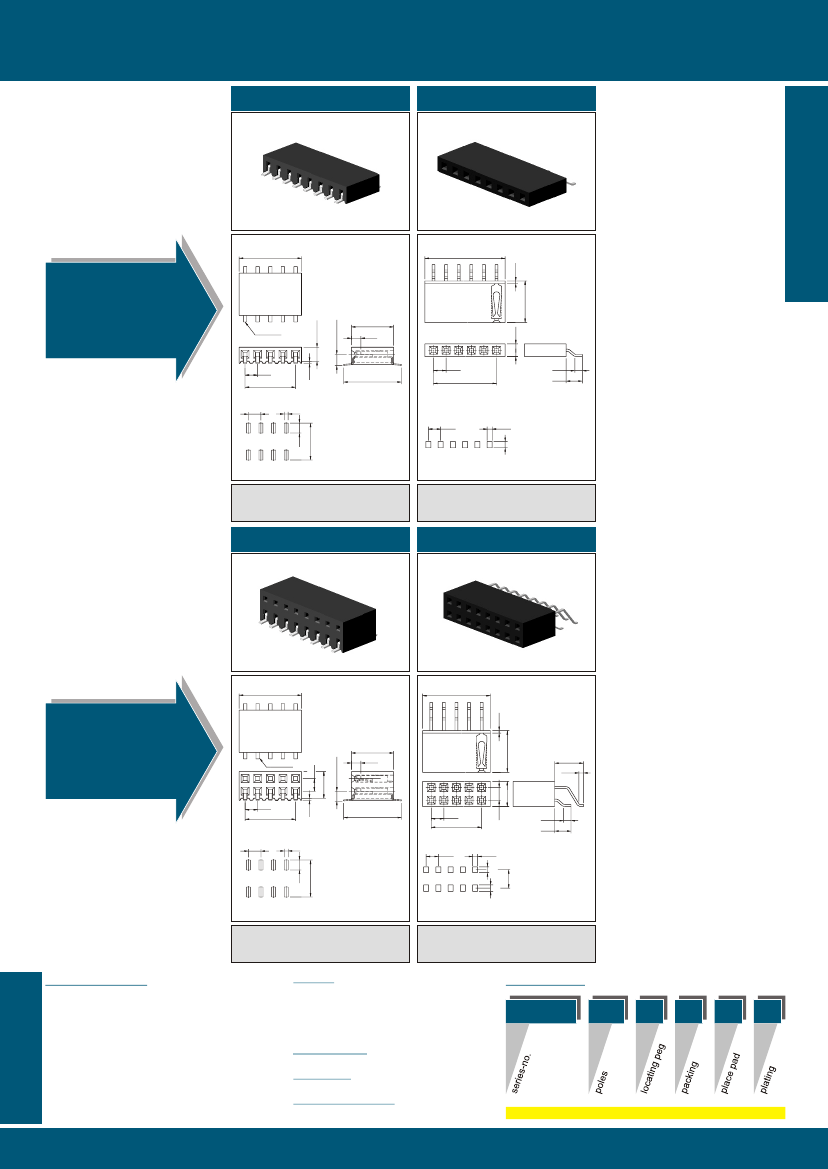

11S251S9

11S251S9A

female header horizontal SMT 2.54

board to board

8.50

0.81

3.43

GSN

2.54 x n ±0.15

(2.54 x n)+0.5 ±0.20

0.50

single row

3.2±0.1

1.78±0.15

8.10±0.15

1.90

2.54

2.54 x (n -1) ±0.10

2.54

1.04

1.32

0.7x0.25

2.54

2.54x(n-1)±0.10

0.40

11.70±0.2

2.54±0.05

0.8

12.70

2.50

available pole no.:

02 to 40

available pole no.:

02 to 40

mates with male header:

0.635x0.635

mates with male header:

0.635x0.635

11S252S9

11S252S9B

2.54 x n/2 ±0.15

(2.54 x n)+0.5 ±0.20

2.54

0.7x0.25

1.78±0.15

double row

5.8

0.40

2.54

2.54x(n/2-1)±0.10

0.50

8.10±0.15

1.90

8.50

7.42

0.71

11.70±0.2

2.54

2.54 x (n -1) ±0.10

2.54

5.00

0.81

3.43

2.54±0.05

0.8

2.54

1.04

1.32 1.22

3.81

available pole no.:

12.70

2.50

06 to 80

available pole no.:

02 to 40

mates with male header:

0.635x0.635

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

mates with male header:

0.635x0.635

technical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

contact resistance

operating temperature

soldering temperature

: phosphor bronze

: thermoplastic

: UL 94V-0

:

500V AC for 1 minute

3A

1000 Meg Ohm min

20 milli Ohm max

plating

00=

30=

50=

60=

flash gold

selective gold 0.75µm

tin

selective flash gold

X=without

Y=without, P=with

order code

11S251S9-

06 -

X

L

Y-

60

locating peg

place pad

: -40°C to +105°C

: 260°C max / 10 sec

possible packing

L=loose,

P=tray,

T=tube,

R=reel

other dimensions / materials are available, please contact us

support@gsn.sg

A52
