TECHNICAL CHARACTERISTICS
5
MATERIAL
INSULATOR: LCP
FLAMABILITY RATING: UL94-V0
COLOR: BLUE
CONTACT MATERIAL: PHOSPHORE BRONZE
CONTACT TYPE: STAMPED
CONTACT PLATING: UNDERPLATE 1.27 to 2.54 µm Ni
CONTACT AREA 0.76 µm Gold
SOLDER TAIL AREA 2.54 to 5.08 µm Matt Tin
SHIELDING: STEEL BRIGHT TIN PLATED
ENVIRONMENTAL
OPERATING TEMPERATURE: -20 up to +85°C
COMPLIANCE: RoHS & LEAD FREE AS PER DIRECTIVE 2002/95/EC
HALOGEN FREE COMPLIANT AS PER IEC 61249-2-21
ELECTRICAL
CURRENT RATING:
- PIN 1 & PIN 4 (Vbus & corresponding ground PIN) 1.8A Max
- OTHER PINS 0.25 A Max
WORKING VOLTAGE: 30Vac
DIELECTRIC WITHSTANDING VOLTAGE: 100Vac/min
INSULATION RESISTANCE: > 100MΩ
CONTACT RESISTANCE:
- PIN 1 & PIN 4: 30mΩ Max
- OTHER PINS: 50mΩ Max
STANDARD
CERTIFIED: E323964 / MODEL NUMBER 692112030100
MECHANICAL
INSERTION FORCE: 35.0N Max
EXTRACTION FORCE: 10.0N min
QUALITY CLASS: 5000 MATING CYCLES
SOLDERING
REFLOW PROCESS ONLY AS PER JEDEC J-STD-020D

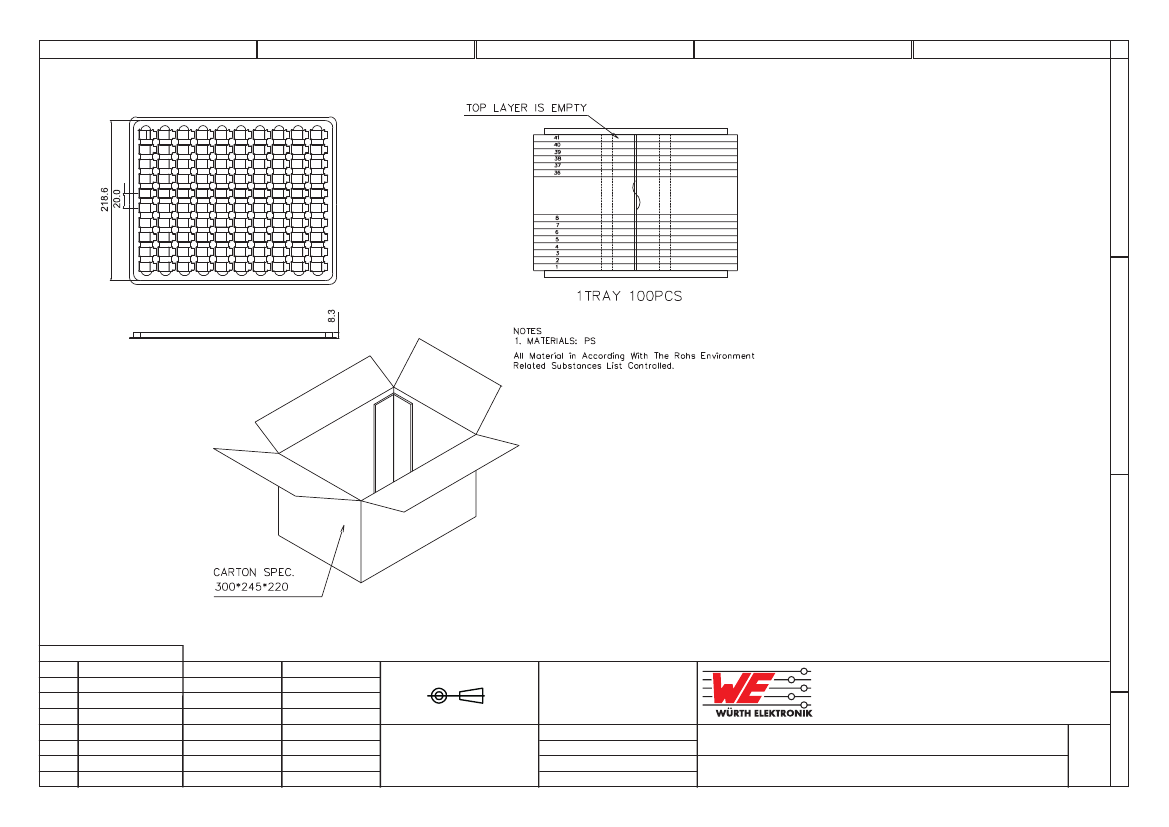

PACKAGING
TRAY

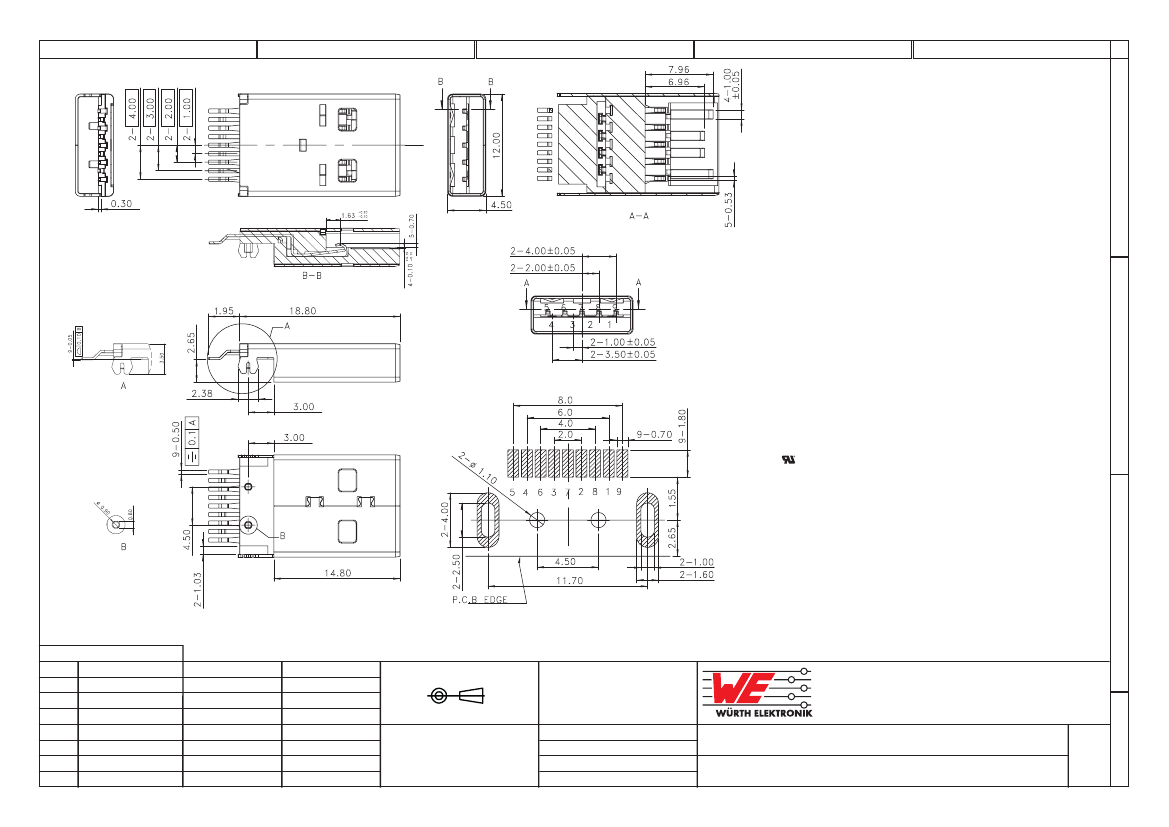

PCB LAYOUT * - COMPONENT VIEW
*
NOTE: THE RECOMMENDED PCB LAYOUT IS FOR AN OPTIMIZED RETENTION FORCE OF CONNECTOR ON PCB BUT IT IMPLIES INSERTION FORCE THAT A LOT OF PICK AND PLACE MACHINES ARE NOT ABLE TO HANDLE. THEREFORE IT MIGHT BE NECESSARY TO
DRILL BIGGER HOLES FOR THE CLIPS. PLEASE CHECK THIS CARFULLY.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-13
09-NOV-11
21-SEP-11
10-MAY-11
16-SEP-10
DATE
PROJECTION:
DIM & CHARAC
STENCIL
NOTE
UL
PDF
FILE
QL
GG
GG
GG
JP
BY
APPROVAL: RJ
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
SCALE:
SHEET: 1/3
DRAW: JOE
WERI PART NO: 692 112 030 100
DESCRIPTION: USB 3.0 SMT PLUG WITH CLIP TYPE A
SIZE
A4
D
1
2
3
4
5
Stencil information for Through Hole Reflow soldering
PCB cross section
A
Hole
Volume
Pin Volume
0,67
1,68
1,8
2,65
Free volume for solder paste
1,39
R
84
0,
6,65
B
STENCIL LAYOUT * - COMPONENT VIEW
Theoritical Formula for Through Hole pins
Volume of the stencil aperture = (Hole volume - Pin volume) x 2
or
Volume of solder paste = (Hole volume - Pin volume) x 2
Stencil
Stencil Thickness: 150 µm
PCB
PCB thickness: 1.6mm
C
RoHS Compliant
G
F
E
D
C
B
A
REV
DATE
* NOTE: SEE PCB LAYOUT PAGE 1/3 FOR MISSING DIMENSIONS
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
APPROVAL: RJ
UNIT: MM
SCALE:
SHEET: 3/3
FILE
BY
DRAW: JOE
WERI PART NO: 692 112 030 100
DESCRIPTION: USB 3.0 SMT PLUG WITH CLIP TYPE A
SIZE
A4
D
