WALL MOUNT
MASS NOTIFICATION STROBE/HORN
• 3 settings at 12 VDC
• 6 settings at 24 VDC
• Strobe output selection view window
• Pre-wire back plate
• Universal back plate mounting (single gang, double gang,
octagon, or 4” square)
• Single screw mounting
• 33 sound output settings
• Indoor or outdoor
• Anodized reflector for true light output
• UL and cUL listed
Patents pending
Call for additional listings
The CSH-1224W Strobe/Horn Series provides a wide range of
candela light output options in a single device. The candela settings
include a 12 or 24 volt DC operation for the 1-3 settings candela
settings and 24 volt DC operation for the 1-6 candela settings.
The candela setting is displayed through the front window and is
selectable using a drum wheel.
The horn settings include Temporal, Non-Temporal, March Time
and a Chime sound. The horn also has Low, Mid and High volume
settings for each pattern and tone. The tones include 2400 Hz, Electro-
Mechanical, Broadband and Chime.
The voltage input can be either regulated DC or full wave rectified
(FWR) 12 volt or 24 volt operation with an operating range of 8 to

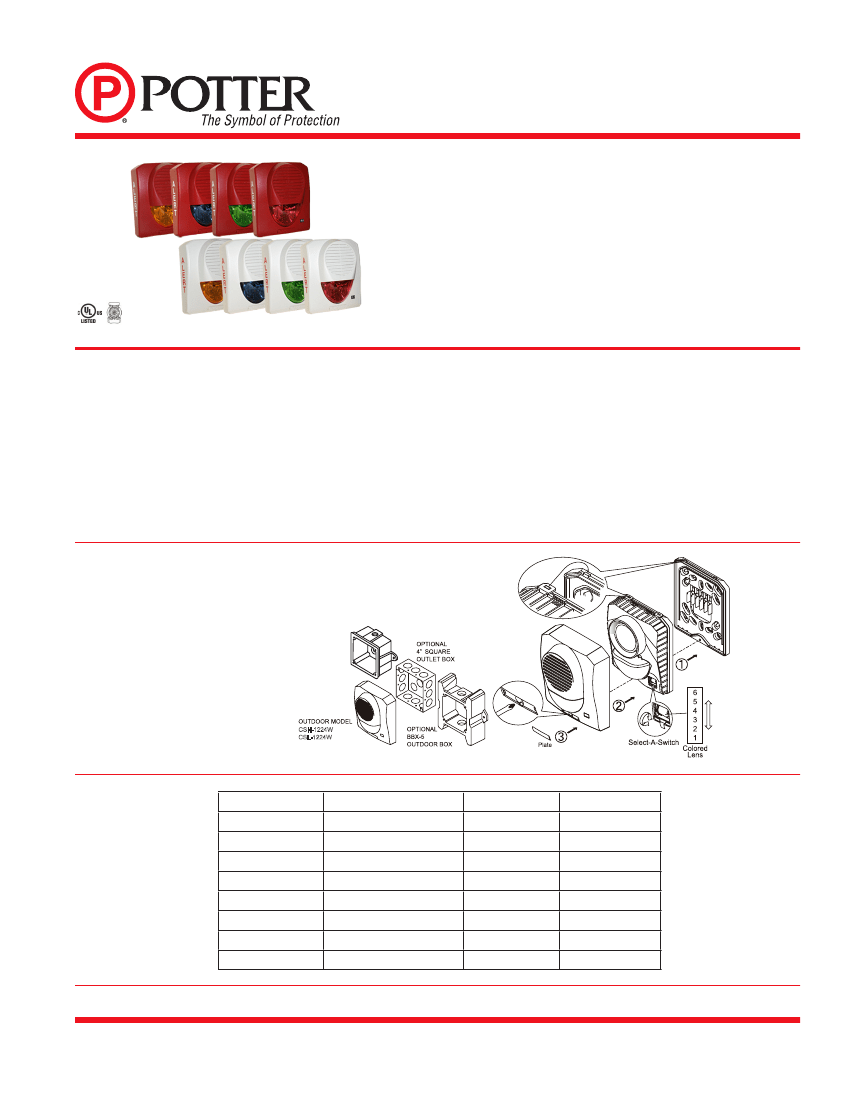

Installation
* Outdoor installation requires the BBK-1 #1500001, BBX-5R
#4270048, or BBX-5W #4270049
33V DC. The strobes can by synchronized using a control panel with
the Potter (Amseco) sync protocol or SMD10-3A sync module.
The CSH-1224W utilizes a universal mounting plate that will mount on
a single gang, double gang, octagon and 4” square electrical boxes. The
back plate allows the installer to mount the plate and terminate the wire
connections. The strobe/horn attaches in a hinge fashion from the top
and is secured by a single mounting screw. The strobe/horn completely
covers the mounting back plate, therefore it can be mounted before
other trades work is completed and not affect the final look.
The Potter mass notification strobe/horn is listed for indoor and
outdoor installations. For outdoor installations, the device must be
mounted on a matching BBX-5 or BBK-1 outdoor bell back box.
CSH-1224W SERIES
Note:
Installation must comply in accordance
with applicable standards.
OPTIONAL
BBK-1
OUTDOOR BOX
CSH-1224W
CSL-1224W
Ordering Information
Stock Number
4800051
4800052
4800053
4800054
4800055
4800056
4800057
4800058
Model Number
CSH-1224W-AR
CSH-1224W-AW
CSH-1224W-BR
CSH-1224W-BW
CSH-1224W-GR
CSH-1224W-GW
CSH-1224W-RR
CSH-1224W-RW
Body Color
Red
White
Red
White
Red
White
Red
White
Lens Color
Amber
Amber
Blue
Blue
Green
Green
Red
Red
Potter Electric Signal Co., LLC • St. Louis, MO • Cust Service: 866-240-1870 • Tech Support:866-956-1211• Canada 888-882-1833 • www.pottersignal.com
PRINTED IN USA
MKT. #8910012 - REV E
6/10
PAGE 1 OF 4
WALL MOUNT
MASS NOTIFICATION STROBE/HORN

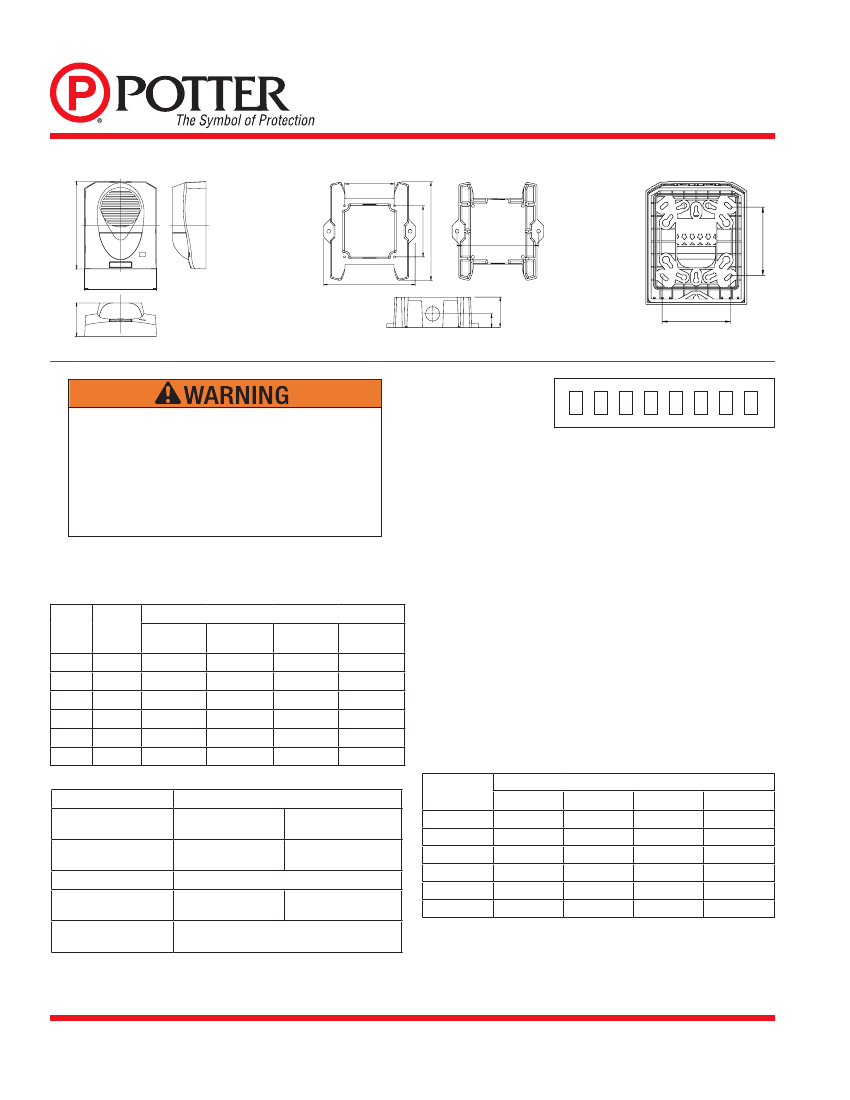

Dimensions: inches (mm)
OPTIONAL BBX-5 OUTDOOR BACK BOX
3.374 (85.7)
CSH-1224W SERIES
6 5/64 (154.4)
6.515 (165.5)
3.374 (85.7)
5.5 (139.7)
Back View
5 (127)
Front View
6.208 (157.7)
2 5/16 (59)
2 (50.8)
0.905
(23)
3.374 (85.7)
Back View
DWG# 891-1
Bottom View
DWG# 891-2
ON
Horn Dipswitch
High voltage may be present inside the light assembly
even though power is not connected. If access to the
component board is required (removal or replacement),
the capacitor must be discarged by touching a wire to
both ends of the flashtube.
DO NOT attempt to touch or move the assembly until the
capacitor has been discharged.
Pattern
1 ON - Non-temporal
1 OFF - Temporal
Both 2 = OFF
1 and 2 ON = March Time
1
2
3
4
5
6
7
8
Specifications
Strobe Current
Set-
ting
1
2
3
4
5
6
Light
Output
15cd
35cd
60/75cd
75cd
95cd
110cd
Voltage
UL Designation
Operating Voltage
Range
Flash Rate
Sync Module (SMD10-
3A)
Operating Temperature
Range
NA
Regulated 12 DC/
FWR
8 - 17.5V
60 times/min.
Available
Max. RMS Operating Current (mA RMS)
Reg. 12
VDC
129
160
193
NA
NA
NA
Reg. 12
FWR
185
214
239
NA
NA
NA
Reg. 24
VDC
100
135
171
190
211
225
12/24V
Regulated 24 DC/FWR
16 - 33V
Reg. 24
FWR
102
161
202
228
255
284
Tone
3 and 4 ON = 2400Hz
3 ON and 4 OFF = Electromechanical
3 and 4 OFF = Chime
3 OFF and 4 ON = Broadband
Volume
5 and 6 ON = High
5 ON and 6 OFF = Mid
5 and 6 OFF = Low
7 and 8 ON = Horn/strobe on 2 wires
7 and 8 OFF = Horn/strobe on 4 wires
Candela Output
Select-A-
Switch
1
2
3
4
5
6
Light Output on Axis (cd)
Amber
14
37
49
69
83
99
Blue
10
20
28
41
51
58
Green
13
39
50
77
94
109
Red
7
17
18
28
35
38
Indoor model: 32°F to 120°F (0°C to 49°C)
Outdoor model: -40°F to 151°F (-40°C to 66°C)
Note:
To determine total current draw, add desired strobe setting and horn
selection. Refer to the installation instructions for further information.
PRINTED IN USA
MKT. #8910012 - REV E
6/10
PAGE 2 OF 4
3.374 (85.7)
WALL MOUNT
MASS NOTIFICATION STROBE/HORN
Non-Temporal Horn Current
Pattern
Volume
Max. RMS Current
(mA RMS Current)
Reg 12 VDC
2400 Hz
High
Mid
Low
High
Electro-Mechanical
Mid
Low
High
Broadband
Mid
Low
High
Chime
Mid
Low
119
44
30
118
43
27
146
41
28
27
11
9
Reg 24 VDC
87
28
18
81
26
16
78
26
16
21
8
7
dBA Reverberant Ratings per
UL464 (dBA @ 10 ft.)
Reg 12 VDC
87
82
79
86
82
79
86
81
77
70
62
58
Reg 24 VDC
87
82
80
87
84
80
86
82
79
70
62
57
dBA Anechoic Ratings per
CAN/ULC S525 (dBA @ 10 ft.)
Reg 12 VDC
99
94
92
100
96
93
101
96
94
86
79
75
Reg 24 VDC
100
96
92
100
97
93
102
98
95
86
80
75
CSH-1224W SERIES
Temporal Horn Current
Pattern
Volume
Max. RMS Current
(mA RMS Current)
Reg 12 VDC
2400 Hz
High
Mid
Low
High
Electro-Mechanical
Mid
Low
High
Broadband
Mid
Low
High
Chime
Mid
Low
124
46
30
114
42
28
151
45
30
29
10
9
Reg 24 VDC
87
30
18
80
27
16
80
26
16
21
9
8
dBA Reverberant Ratings per
UL464 (dBA @ 10 ft.)
Reg 12 VDC
82
77
74
83
78
75
82
77
75
68
61
55
Reg 24 VDC
82
79
75
82
80
76
82
78
76
70
61
55
dBA Anechoic Ratings per
CAN/ULC S525 (dBA @ 10 ft.)
Reg 12 VDC
100
95
92
100
95
93
101
97
94
86
79
75
Reg 24 VDC
100
96
92
101
96
93
102
98
95
86
79
76
March Time Horn Current
Pattern
Volume
Max. RMS Current
(mA RMS Current)
Reg 12 VDC
2400 Hz
High
Mid
Low
High
Electro-Mechanical
Mid
Low
High
Broadband
Mid
Low
121
47
36
114
42
30
153
42
29
Reg 24 VDC
92
31
19
86
27
19
77
28
16
dBA Reverberant Ratings per
UL464 (dBA @ 10 ft.)
Reg 12 VDC
83
79
76
83
80
77
83
79
76
Reg 24 VDC
84
81
77
83
81
77
84
80
77
dBA Anechoic Ratings per
CAN/ULC S525 (dBA @ 10 ft.)
Reg 12 VDC
99
95
92
100
95
92
101
97
94
Reg 24 VDC
100
96
92
100
96
93
102
98
95
PRINTED IN USA
MKT. #8910012 - REV E
6/10
PAGE 3 OF 4
WALL MOUNT
MASS NOTIFICATION STROBE/HORN

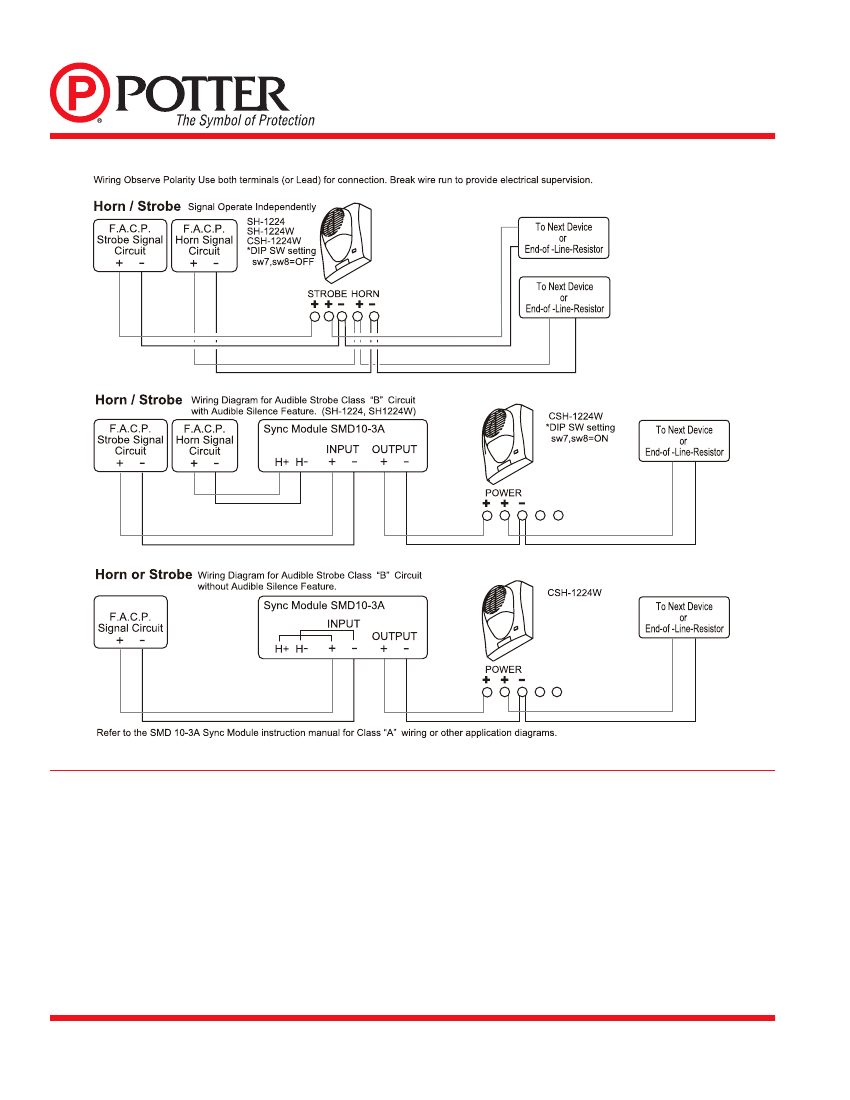

Wiring Diagram
CSH-1224W SERIES
DWG# 8910012-1
Engineering Specifications
The installer shall provide and install the Potter CSH-1224W
selectable strobe/horn. The strobe shall have six (6) selectable
settings. The selectable settings shall be selectable using a drum roller
and shall display the setting on the front of the device. The strobe
shall have a colored lens and anodized reflector. A colored lens on
a standard reflector shall not be acceptable. The horn shall have 33
selectable settings configurable by dip switches. The sounder shall be
capable of ANSI Temporal Code 3, March Time and produce a chime
output. The horn shall have three distinct volume levels. The strobe/
horn shall operate at 12 or 24 VDC regulated or full wave rectified.
The strobe/horn shall have an operating range between 8 and 33
VDC. The strobe/horn shall utilize a mounting plate that allows the
installer to pre-wire the mounting plate. The mounting plate shall be
PRINTED IN USA
universal and mount on a single gang, double gang, octagon or 4 inch
square box. The mounting plate shall be completely covered by the
strobe/horn and shall be secured by a single screw. The device shall
be listed for indoor and outdoor applications. Outdoor installations
shall require a matching BBX-5 or BBK-1 weatherproof bell back
box. The operating range shall be 32°F to 120°F (0°C to 49°C) for
the indoor installations and -40°F to 151°F (-40°C to 66°C) for the
outdoor installations. The strobe/horn shall be UL listed to standard
1638, General Signaling, and standard 1971, Signaling Devices for
the Hearing Impaired. In addition, the strobe/horns shall be cUL listed
to CAN-ULC S526. The horn shall be UL listed to standard 464,
Audible Signaling Devices.
MKT. #8910012 - REV E
6/10
PAGE 4 OF 4
