M100A THRU M100M
GENERAL PURPOSE PLASTIC RECTIFIER
Reverse Voltage -
50 to 1000 Volts
DO-204AL
Forward Current -
1.0 Ampere
FEATURES
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
0.205 (5.2)
0.160 (4.1)
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
Construction utilizes void-free molded plastic
technique
♦
Low reverse leakage
♦
High surge current capability
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
MECHANICAL DATA
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
DIA.
Dimensions in inches and (millimeters)
Case:
JEDEC DO-204AL, molded plastic body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.012 ounce, 0.3 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
M100
A
M100
B
M100
D
M100
G
M100
J
M100
K
M100
M
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
=100°C
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method) at T
A
=75°C
Maximum instantaneous forward voltage at 1.0A
Maximum full load reverse current full cycle average
0.375" (9.5mm) lead length at T
A
=55°C
Maximum DC reverse current
at rated DC blocking voltage
Typical reverse recovery time
(NOTE 1)
Typical junction capacitance
(NOTE 2
)
Typical thermal resistance
(NOTE 3)
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
400
280
400
1.0
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amp
I
FSM
V
F
I
R(AV)
I
R
t
rr
C
J
R
ΘJA
R
ΘJL
T
J
, T
STG
50.0
1.0
100.0
1.0
50.0
2.0
15.0
50.0
25.0
-50 to +150
1.1
Amps
Volts
µA
µA
µs
pF
°C/W
°C
T
A
=25°C
T
A
=100°C
Operating junction and storage temperature range
NOTES:
(1) Measured with I
F
=0.5A, I
R
=0.1A, I
rr
=0.25A
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5mm) lead length, P.C.B. mounted
4/98

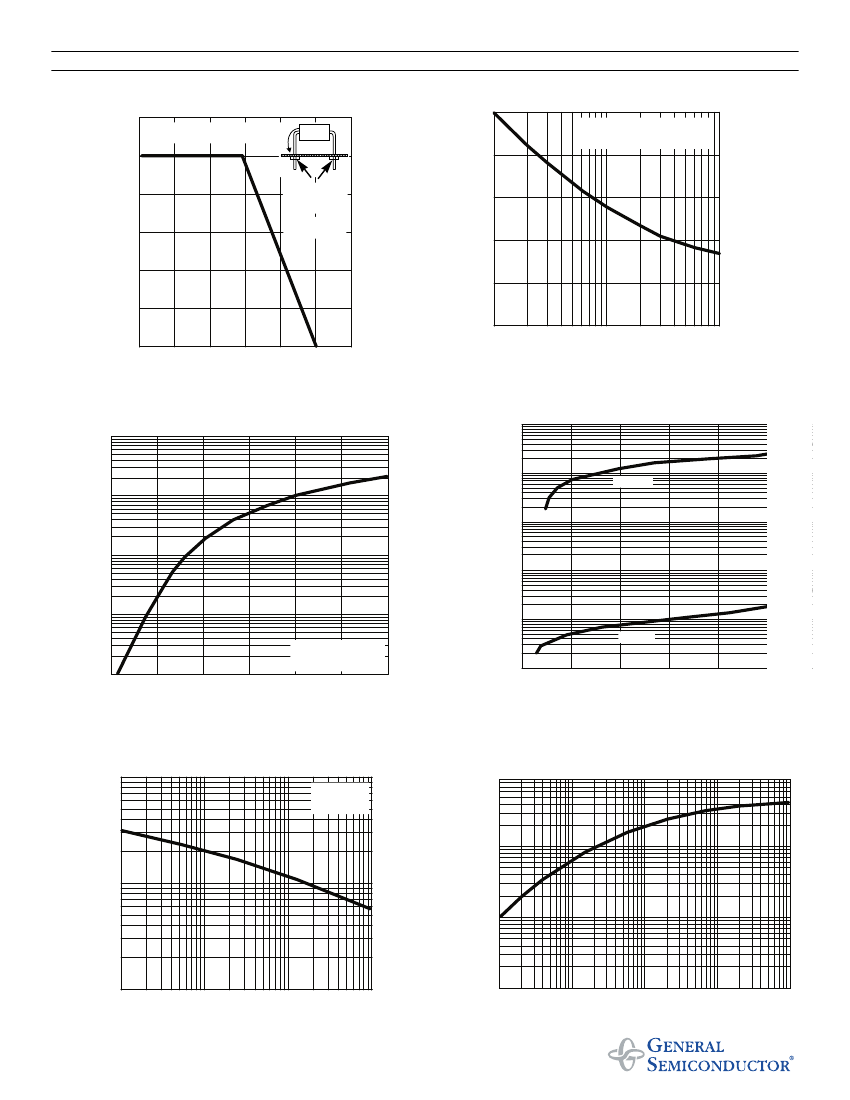

RATINGS AND CHARACTERISTIC CURVES M100A THRU M100M
FIG. 1 - FORWARD CURRENT DERATING CURVE
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
1.2
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
50
PEAK FORWARD SURGE CURRENT,
AMPERES
60 H
Z
RESISTIVE OR INDUCTIVE LOAD
8.3ms SINGLE HALF SINE WAVE
(JEDEC Method)
T
A
= 75°C
1.0
0.8
0.2 x 0.2”
(5.0 x 5.0mm)
COPPER PADS
0.375” (9.5mm)
LEAD LENGTH
40
30
0.6
0.4
0.2
20
10
0
0
25
50
75
100
125
150
175
1
10
NUMBER OF CYCLES AT 60 H
Z
100
AMBIENT TEMPERATURE, °C
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
FIG. 3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
1,000
INSTANTANEOUS REVERSE CURRENT,
µA
100
INSTANTANEOUS FORWARD CURRENT,
AMPERES
100
T
J
=150°C
10
10
1
1
0.1
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
0.1
T
J
=25°C
0.01
0.6
0.01
1.8
0.8
1.0
1.2
1.4
1.6
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
PERCENTAGE OF PEAK REVERSE
VOLTAGE, %
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
100
100
TRANSIENT THERMAL IMPEDANCE,
°C/W
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
JUNCTION CAPACITANCE, pF
10
10
1
1
0.1
1
10
100
0.1
0.01
0.1
1
t, PULSE DURATION, sec.
10
100
REVERSE VOLTAGE, VOLTS
