208457032003051 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 208457032003051

208457032003051: DescriptionBoard Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

208457032003051 Overview

Board Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,

208457032003051 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2
body width	0.315 inch
body length	2.162 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	8457
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

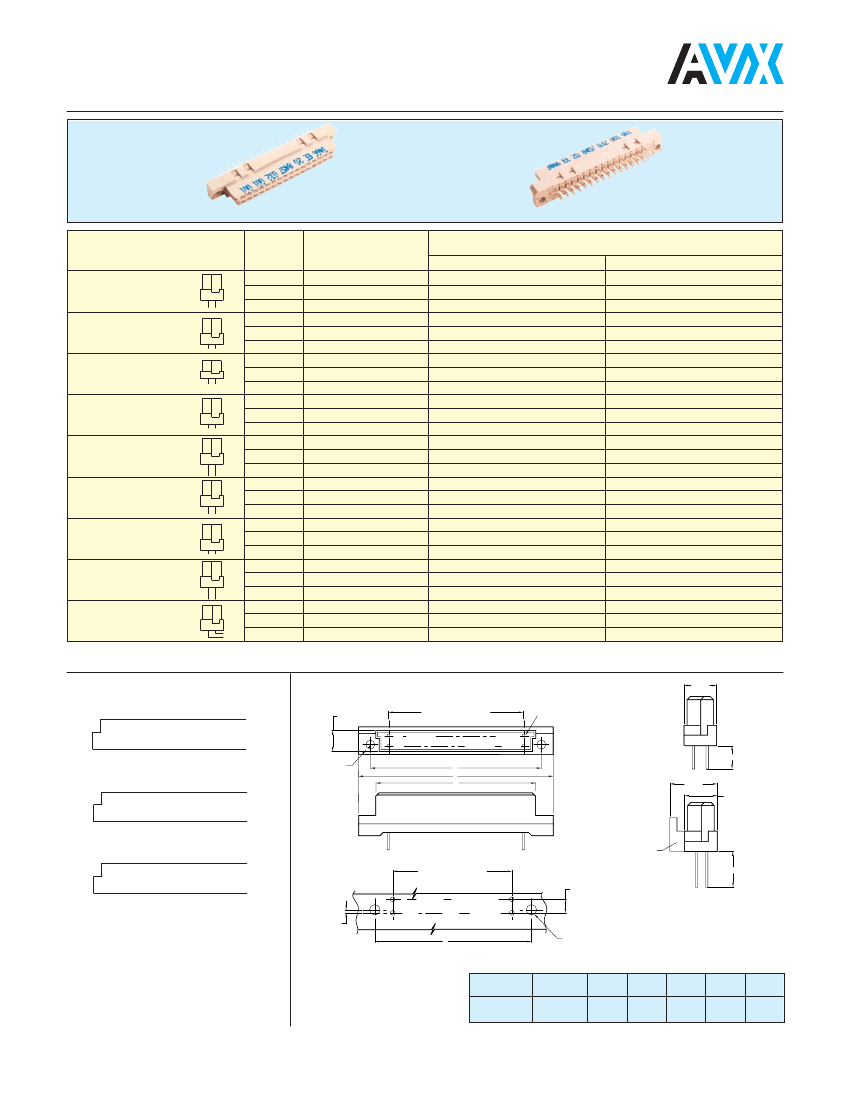

Female Style 1/2 B

Series 8457 – 2 rows (2 x 16)

Contact Design

and

Termination Length

0.6 x 0.6 mm post profile

4.5 mm (Y) Straight

0.6 x 0.6 mm post profile

2.9 mm (Y) Straight

0.3 x 0.79 mm post profile

4.5 mm (Y) Straight

0.3 x 0.79 mm post profile

2.9 mm (Y) Straight

0.6 x 0.6 mm post profile

13.0 mm (Y) Straight

0.6 x 0.6 mm post profile

7.0 mm (Y) Straight

0.6 x 0.6 mm post profile

3.5 mm (Y) Straight

0.6 x 0.6 mm post profile

19.4 mm (Y) Straight

0.6 x 0.6 mm post profile

4.5 mm (Y) Right Angled

Number of

Contacts

Loading Description

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b even loading

+ b fully loaded

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

Part Number

Performance classes according to DIN 41612

8457

032

001

002

003

004

005

010

011

012

013

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

8457

032

001

002

003

004

005

010

011

012

013

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

NB: Alternative Prefix Variations Available: 22, 24, 25, 26 & 27, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

5.94

[0.234]

A EQ SP @ 2.54 [0.100] = B

ROW A

ROW B

2.84

[0.110] DIA.

8.00

[0.315]

32 contacts, rows a + b fully loaded

●

Y For Y dimension

see contact design

10.9

[0.429]

8.00

[0.315]

16 contacts, rows a + b even loading

KEYING

For Y dimension

Y see contact design

2.54

[0.100]

ROW A

●

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

16 contacts, row a loading only

0.30

[0.012]

HOLE PATTERN

ROW B

2.84

[0.112] DIA.

Unit: millimeters (inches)

No. Contact

Positions

Contact

Rows

2 (2 x 16)

38.10

(1.500)

44.30

(1.744)

49.99

(1.968)

54.91

(2.162)
