2540-Z00048 datasheet, PDF - EEWORLD Datasheet

2540-Z00048: Description17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size119KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

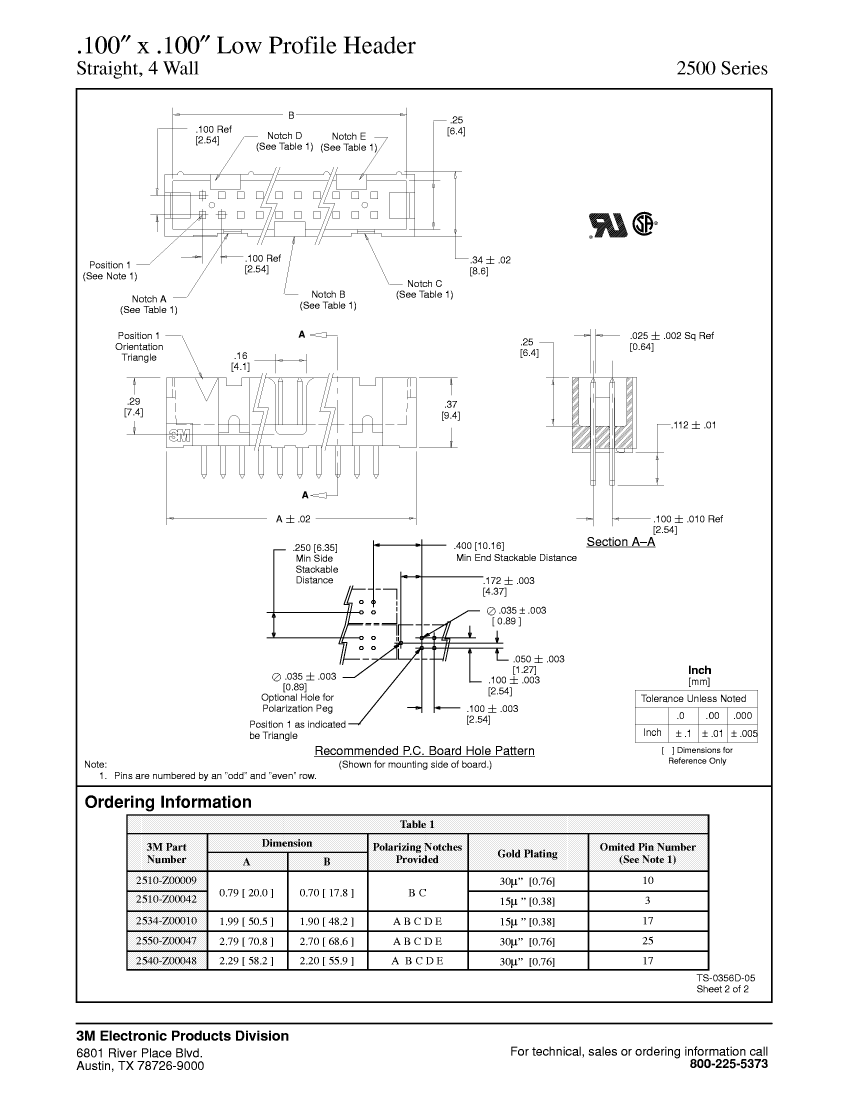

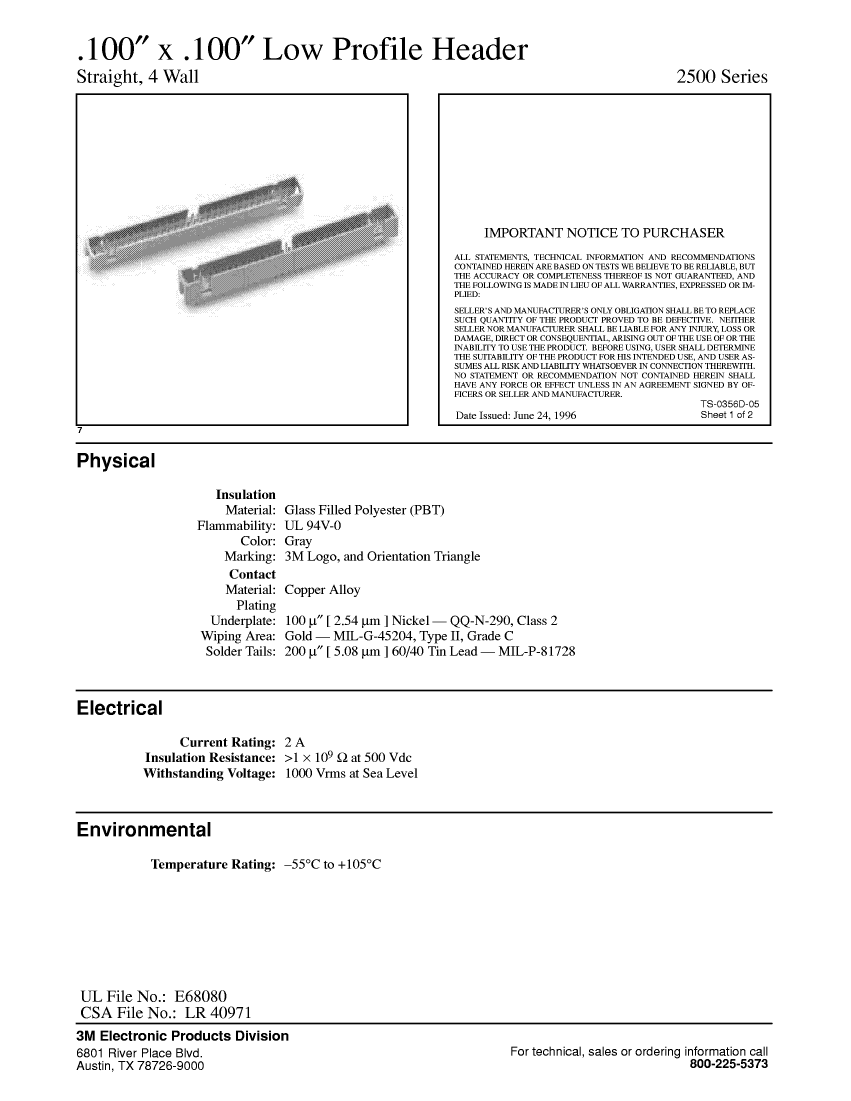

2540-Z00048 Overview

17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	17
UL Flammability Code	94V-0
Base Number Matches	1

	2540-Z00048	2510-Z00009	2510-Z00042	2534-Z00010	2550-Z00047
Description	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	25 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknow	unknow	unknow	unknown	unknow
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	17	10	3	17	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	-	1
Manufacturer's serial number	-	2500	2500	2500	2500
