MP0045/1E1GN012 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> MP0045/1E1GN012

Preview

MP0045/1E1GN012: Descriptionilluminated Pushbutton switches dpco flush button; CategoryTopical application Mechanical and electrical/engineering/automation; File Size92KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

MP0045/1E1GN012 Overview

illuminated Pushbutton switches dpco flush button

MP0045/1E1GN012 Parametric

Parameter Name	Attribute value
Manufacture	Bulgi
Product Category	Illuminated Pushbutton Switches
RoHS	Yes
Contact Form	DPST
Switch Functi	ON - OFF
Current Rating	3 A
Voltage Rating AC	250 V
Mounting Style	Through Hole
Illuminati	LED
Illumination Col	Gree
Termination Style	Solder Pi
Actu	Round
Housing Material	Stainless Steel
Factory Pack Quantity	40

Preview

Download Datasheet

View All

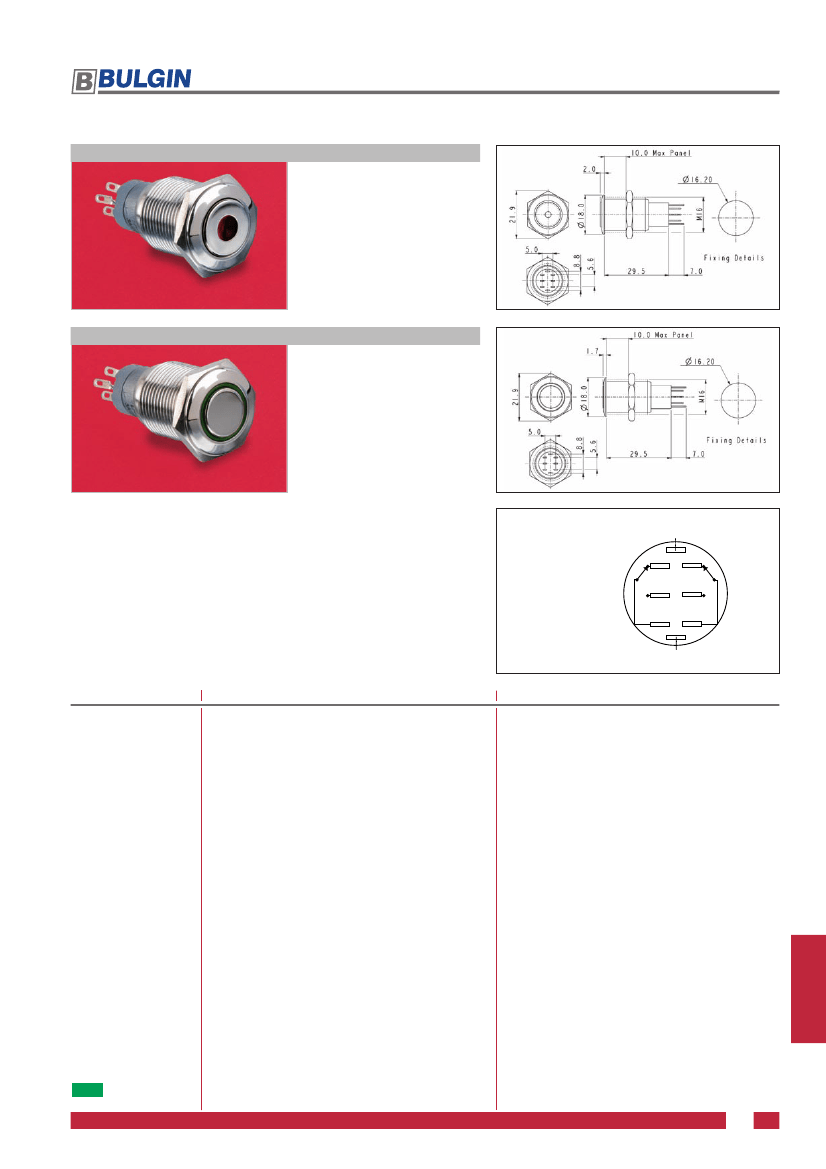

SWITCHES

Stainless Steel Illuminated Latching

FRONT PANEL MOUNTING

Dot Illuminated

18mm bezel diameter

D.P.C.O.

3A, 250V ac

Red, Green, Amber or Blue

Illumination

Separate LED Terminals

MP0045/1E1

FRONT PANEL MOUNTING

Ring Illuminated

18mm bezel diameter

D.P.C.O.

3A, 250V ac

Red, Green, Amber or Blue

Illumination

Separate LED Terminals

MP0045/1E2

Contact Layout

LED terminal

+

NC1

NC2

+

NO1

NO2

C1

-

C2

LED terminal

-

Specification

Terminations:

Illumination:

Switching:

Max. Switch Rating:

LEDs

Colours

Part No.

Voltage

Part No.

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Operating Temp. Range:

Operations

Mechanical:

Electrical:

Rear Nut Fixing Torque:

Materials

Mouldings:

Tags:

Switch Body & Button:

Variants

MP0045/1E1/Colour/Voltage

Solder Tags

Dot

D.P

.C.O. Latching Action

3A, 250Vac

Red

/RD

12Vdc

/012

Green

/GN

220Vdc

/220

Amber

/AM

Blue

/BL

MP0045/1E2/Colour/Voltage

Solder Tags

Ring

D.P

.C.O. Latching Action

3A, 250Vac

Red

/RD

12Vdc

/012

Green

/GN

220Vdc

/220

Amber

/AM

Blue

/BL

50mΩ max. @ 1A, 2Vdc

>10

3

MΩ @ 500Vac

>2.0kVac

–20˚C to +55˚C

200,000 (min)

30,000 (min)

12Nm

Nylon

Brass, Silver Plated

Stainless Steel (Polished)

Prominent Button, details on request

Compliant

50mΩ max. @ 1A, 2Vdc

>10

3

MΩ @ 500Vac

>2.0kVac

–20˚C to +55˚C

12Nm

Nylon

Brass, Silver Plated

Stainless Steel (Polished)

Prominent Button, details on request

Complaint

193

RoHS

www.elektron-bulgin.com

SWITCHES

200,000 (min)

30,000 (min)

MP0045/1E1GN012 Related Products

	MP0045/1E1GN012	MP0045/1E2GN012	MP0045/1E1RD012	MP0045/1E1BL012
Description	illuminated Pushbutton switches dpco flush button	illuminated Pushbutton switches dpco flush button	illuminated Pushbutton switches dpco flush button	illuminated Pushbutton switches dpco flush button
Manufacture	Bulgi	Bulgi	Bulgi	Bulgi
Product Category	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches
RoHS	Yes	Yes	Yes	Yes
Contact Form	DPST	DPST	DPST	DPST
Switch Functi	ON - OFF	ON - OFF	ON - OFF	ON - OFF
Current Rating	3 A	3 A	3 A	3 A
Voltage Rating AC	250 V	250 V	250 V	250 V
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole
Illuminati	LED	LED	LED	LED
Illumination Col	Gree	Gree	Red	Blue
Termination Style	Solder Pi	Solder Pi	Solder Pi	Solder Pi
Actu	Round	Round	Round	Round
Factory Pack Quantity	40	40	40	40
Housing Material	Stainless Steel	-	Stainless Steel	Stainless Steel
