SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516
SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS
Voltage Range 50 to 1600 Volts
FEATU R E S
◆Diffused
Junction
◆Low
Forward Voltage Drop
◆High
Current Capability
◆High
Reliability
◆High
Surge Current Capability
◆Ideal
for Printed Circuit Boards:
Current 25 Amperes
SKBPC
Mechanical Data
◆Case:Epoxy
Case with Heat Sink lnterally
Mounted in the Bridge Encapsulation
◆Terminals:Plated
Leads Soiderable per
MIL-STD-202,Method 208
◆Polarity:As
Marked on Body
◆Weight:20
grams(approx.)
◆Mounting
Position: Bolt Down on Heatsink With Silicone
Thermal Compound Between Bridge and Mounting Surface
for Maximum Heat Transfer Efficiency
◆Mounting
Torque:20 in lbs. Max
◆Marking:Type
Number
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.For capacitive load, derate current by 20%
SKBPC
SKBPC
/SBR
2501
SKBPC
/SBR
2502
SKBPC
/SBR
2504
SKBPC
/SBR
2506
SKBPC
/SBR
2508
SKBPC
/SBR
2510
SKBPC
/SBR
2512
SKBPC
/SBR
2514
SKBPC
/SBR
2516
UNITS
Type Number
/SBR
25005
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified Current
@T
C
= 100℃
Non-Repetitive Peak Forward Surge Current
(No Voltage Reapplied t=8.3ms at 60HZ)
(No Voltage Reapplied t=10ms at 50HZ)
(100% VRRM Reapplied t=8.3ms at 60HZ)
(100% VRRM Reapplied t=10ms at 50HZ)
V
RRM
V
RMS
V
DC
I(AV)
50
35
50
100
70
100
200
140
200
400
280
400
600
420
600
25
800
560
800
1000
700
1000
1200
840
1200
1400
980
1400
1600
1120
1600
V
V
V
A
375
I
FSM
360
410
450
A
Suntan Su
®
®
SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516
SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS
Voltage Range 50 to 1600 Volts
Current 25 Amperes
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.For capacitive load, derate current by 20%
SKBPC
SKBPC
/SBR
2501
SKBPC
/SBR
2502
SKBPC
/SBR
2504
SKBPC
/SBR
2506
SKBPC
/SBR
2508
SKBPC
/SBR
2510
SKBPC
/SBR
2512
SKBPC
/SBR
2514
SKBPC
/SBR
25005
UNITS
Type Number
/SBR
25005
I2t Rating for fusing
(No Voltage Reapplied t=8.3ms at 60HZ)
(No Voltage Reapplied t=10ms at 50HZ)
(100% VRRM Reapplied t=8.3ms at 60HZ)
(100% VRRM Reapplied t=10ms at 50HZ)
Forward Voltage (per element)
@TJ=25℃,@IFM=40APK per single junction
Peak Reverse Current (per leg) @TJ=25℃
uA At Rated DC Blocking Voltage @TJ=125℃
RMS lsolation Voltage from Case to Lead
Thermal Resistance Junction to Case at
DC Operation per Bridge
Thermal Resistance Case to Heatsink
Mounting Surface, Smooth, Flat and Greased
Operating Temperature Range
Storage Temperature Range
580
I
2
t
635
410
450
A
2
S
V
F
I
R
V
ISO
R
θJC
R
θCS
T
J
T
STG
1.26
10
5.0
2500
1.42
V
μA
mA
V
K/W
0.2
-55 to +150
-55 to +150
K/W
℃
℃
Suntan Su
®
®
SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516
SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS
Voltage Range 50 to 1600 Volts
Current 25 Amperes

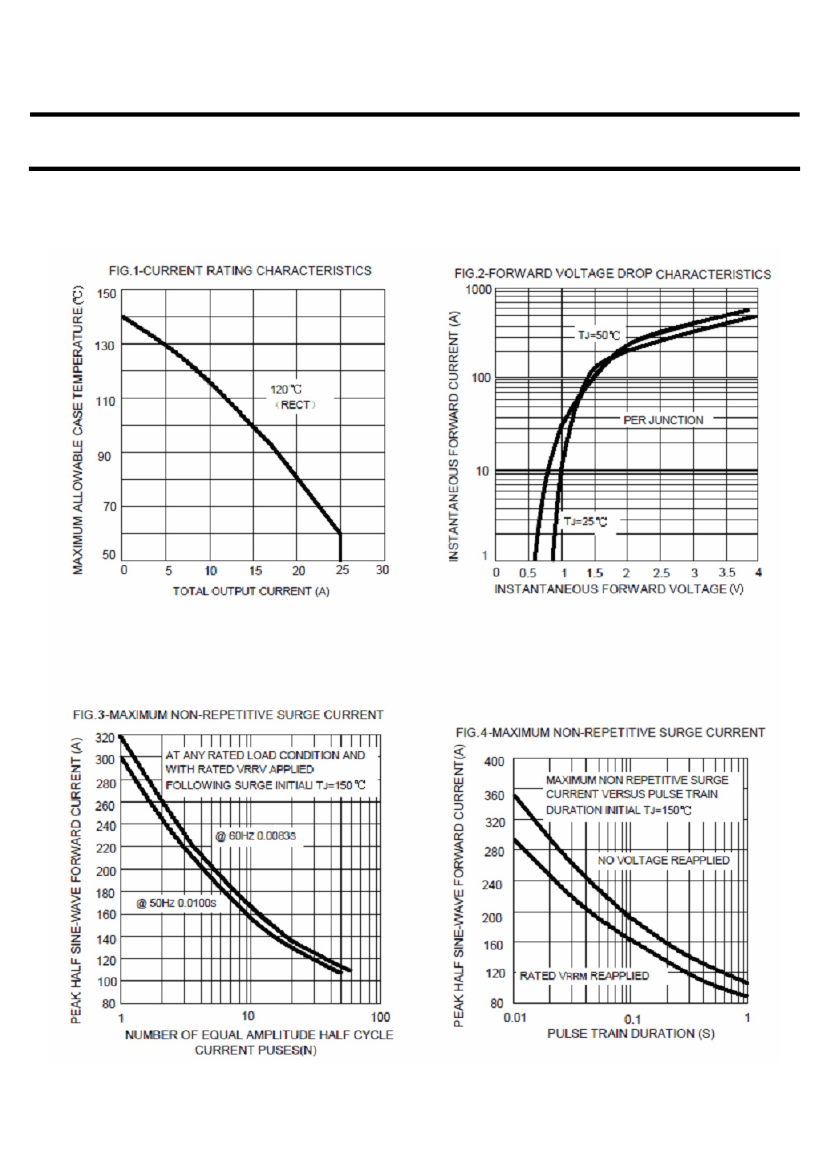

RATING AND CHARACTERISTIC CURVES SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516
RATING AND CHARACTERISTIC CURVES KBPC35005 THRU KBPC3510
Suntan Su
®
®
SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516
SILICON/GLASS PASSIVATED THREE PHASE BRIDGE RECTIFIERS
Voltage Range 50 to 1600 Volts
Current 25 Amperes

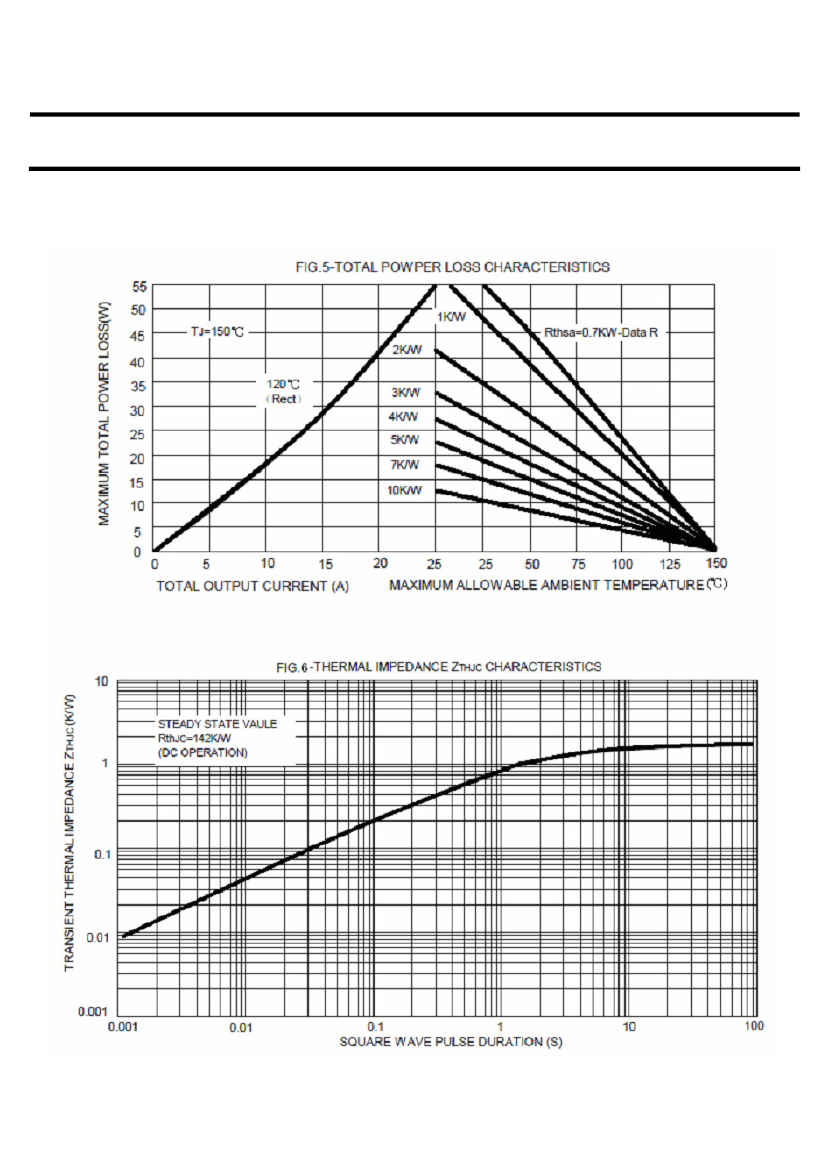

RATING AND CHARACTERISTIC CURVES SKBPC25005/SBR25005 THRU SKBPC2516/SBR2516
