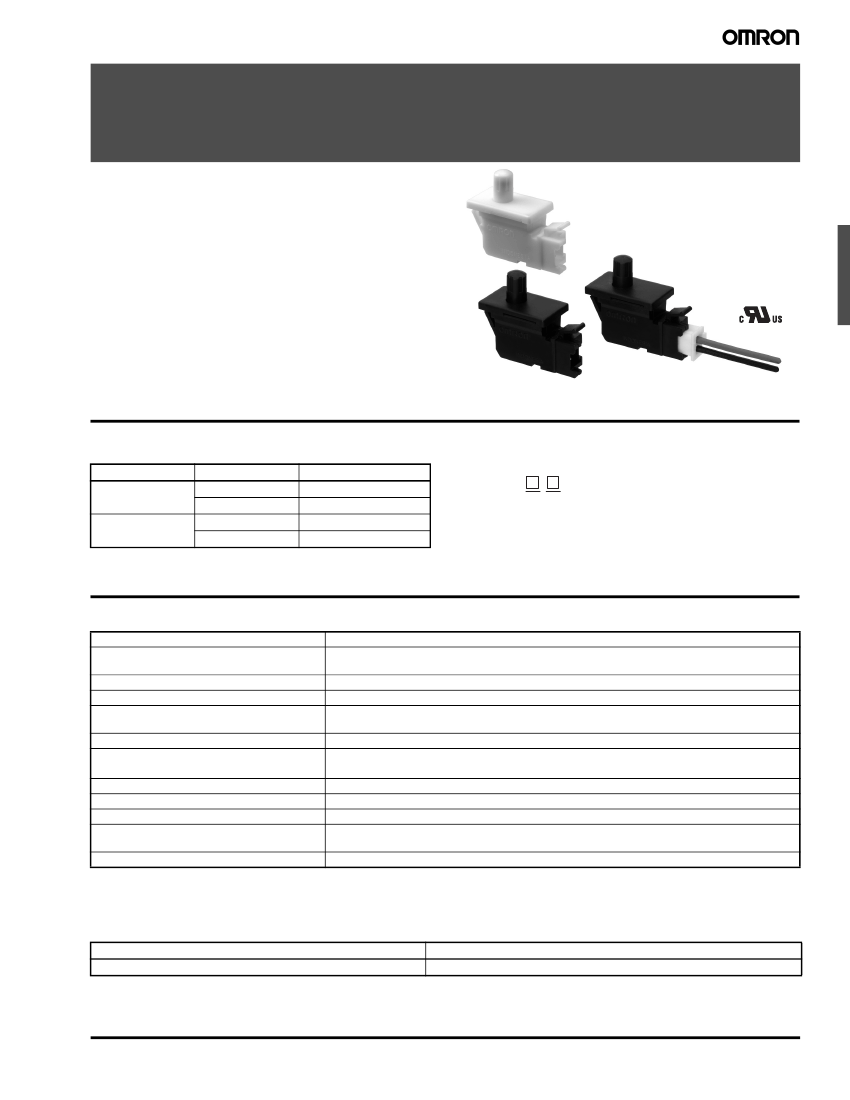

Miniature Door Switch
D3DC
Long Stroke Actuator with Operating
Position Marks
• Long stroke (7 mm) in a small package.
• Operating position marks make stroke settings easier.
• Easy assembly with a snap-fit panel mount design.
• Quick-connection terminals facilitate wiring.
• Available in a variety of colors.
• RoHS Compliant.
Ordering Information
List of Models
Contact Form
SPST-NC
SPST-NO
Black
White
Black
White
Model Name
D3DC-2
D3DC-2-W
D3DC-3N
D3DC-3N-W
Model Number Legend
D3DC -
1 2
1.
Contact Form
2: SPST-NC
3N: SPST-NO
2.
Housing Color
Blank: Black
-W:
White
Specifications
■
Characteristics
Permissible Operating speed
Permissible Operating frequency
Insulation resistance
Contact resistance
Dielectric strength
Vibration resistance (See note 2)
Shock resistance (See note 2)
Degree of protection
Ambient operating temperature
Ambient operating humidity
Life expectancy
Weight
0.5 to 1 mm/s
Mechanical: 30 operations/minute, max.
Electrical: 20 operations/minute, max.
100 MΩ min. (at 500 VDC with insulation tester)
300 mΩ max.
600 VAC. 50/60 Hz for 1 min between terminals of the same polarity
1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 500 m/s
2
(approx. 50G) max.
Malfunction: 100 m/s
2
(approx. 10G) max.
IEC IP00
-25°C to 85°C (at 60% RH max.) with no icing or condensation
85% max. (for 5°C to 35°C)
Mechanical: 100,000 operations min. (30 operations per minute)
Electrical: 100,000 operations min. (20 operations per minute)
Approx. 2 g
Note: 1.
Data shown are of initial value.
2.
The given values are for Free Position and Total Travel Position. The contacts do not open or close for more than 1 ms.
■
Ratings
Rated voltage
30 VDC
Resistive load
0.1 A
Note:
The electrical rating applies under the following test conditions:
Ambient Temperature = 20±2°C, Ambient Humidity = 65±5%, Operating frequency = 20 operations/min.
Miniature Door Switch
D3DC
53
■
Contact Specifications
Item
Specification
Material
Gap (standard value_
Minimum applicable load
(see note)
Rivet
Silver
0.3 mm
1 mA at 5 VDC
Specification
■
Approved Standards
UL Recognized
CSA Certified (UL approval)
Rated voltage
30 VDC
0.1 A
Rated Load
Note:
Minimum applicable loads are indicated by L-level standard ref-
erence values. This value represents the failure rate at a 60%
(λ
60
) reliability level (JIS C5003).
The equation
λ
60
=0.5 x 10
-6
/ operations indicates that the es-
timated failure rate of less than 1/2,000,000 operations can be
expected at a reliability level of 60%
Engineering Data
■

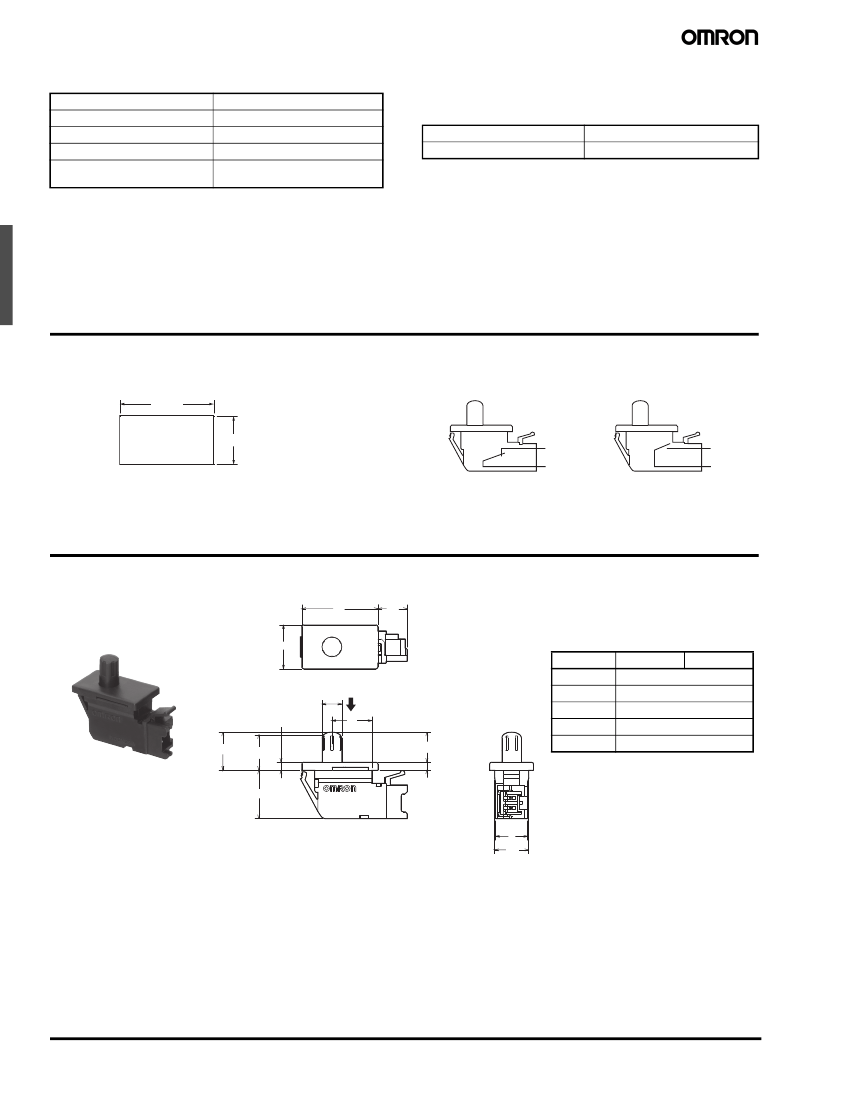

Panel Cutout Dimensions
16.9
±0.1
■
Contact Form
SPST-NC
SPST-NO
8.7
+
0.1
0
NC
COM
NO
COM
Note:
Mounting plate thickness: 0.75 mm to 1.50 mm.
Dimensions and Operating Characteristics
Note: 1.
Unless otherwise specified, all units are in millimeters and a tolerance of
±0.4
mm applies to all dimensions
2.
The operating characteristics are for operation in the A direction (indicated by the arrow))
D3DC-2@
D3DC-3@
11
19
7.3
Model
OF max.
φ
4.9
(TTP)
(FP)
A
D3DC-2@
D3DC-3@
102 gf
7.0 mm (reference value)
9.5 (reference value)
6.7 mm
2.0 mm (reference value)
TT
FP
OP min.
(TT)
10
TTP
(OP)
2
2
12.1
8
8.5
54
Miniature Door Switch
D3DC
Precautions
Be sure to read the precautions and information common to all Snap Action and Detection Switches, contained in the Technical User’s Guide,
“Snap Action Switches, Technical Information” for correct use.
■
Correct Use
Mounting
This product does not have waterproof or drip-proof construction.
Ensure that water does not enter the switch interior. In particular, do
not use the switch in locations where water may be spilled or flow
over the switch. Doing so may result in deterioration of the insulation.
Also, if the contact is kept open for long periods of time, it is recom-
mended to use a sealed switch to prevent sulfuration of the contacts.
Pay attention to the creepage distance and clearance distance for
insulation after wiring onto the terminals, when the mounting frame is
made of metal.
■
Cautions
Handling
Do not expose the switch to shocks, such as by dropping it. Doing so
may damage or deform the switch.
Do not apply lubrication to the sliding parts, such as pushbuttons or
actuators. Doing so may result in faulty operation or contact failure.
In order to ensure stable contact force for contacts, actuate beyond
the recommended operating point (NO contact) and release to free
position (NC contact).
Wiring
Do not use the switch with a large force applied to the connector or
lead wire. Doing so may result in rattling or contact failure.
Recommended Operating Position
(3)
Storage Environment
Storing the switch in a plastic bag will help prevent discoloration due
to sulfuration of the (silver-plated) terminals.
Do not use the switch in locations subject to harmful gases or to high
temperatures or humidity levels. Depending on the location, it is rec-
ommended that switches be inspected between 3 and 6 months after
the date of manufacture.
Micro Loads
Using a model for ordinary loads to switch microloads may result in
faulty operation. Instead, use the models that are designed for
microloads and that operate in the following range;
Voltage
(V)
30
0.16mA
100mA
24
Operating Range, D3DC
12
5
0
0.1
1mA
1
10
100mA
100
1,000
Current (mA)
However, even when using microload models within the operating
range shown above, if inrush current or inductive voltage spikes
occur when the contact is opened or closed, then contact wear may
increase and so decrease the service life. Therefore, insert a contact
protection circuit where necessary.
Connectors
The terminals connect to JST’s XA Connector.
The XA Connector consists of the following components.
Contact: SXA-001T-P0.6
Housing: XAP-02V-1
Omron does not sell the XA Connector.
Contact J.S.T. Manufacturing Co. for these connectors.
Miniature Door Switch
D3DC
55
All sales are subject to Omron Electronic Components LLC standard terms and conditions of sale, which
can be found at
http://www.components.omron.com/components/web/webfiles.nsf/sales_terms.html
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ELECTRONIC
COMPONENTS LLC
55 E. Commerce Drive, Suite B
Schaumburg, IL 60173
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.components.omron.com
847-882-2288
Cat. No. X303-E-1a
09/12
Specifications subject to change without notice
Printed in USA
