ABS5610408 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> ABS5610408

ABS5610408: Descriptionbasic / snap action switches spdt pin plunger wire; CategoryMechanical and electronic products switch; File Size435KB，11 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ABS5610408 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ABS5610408	-	-	View	Buy Now

ABS5610408 Overview

basic / snap action switches spdt pin plunger wire

ABS5610408 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
Reach Compliance Code	compli
ECCN code	EAR99
Actuator angle
Actuator stroke	1 mm
Actuator type	PIN PLUNGER
Other features	PIN PLUNGER ACTUATOR
body width	6.4 mm
body height	21.2 mm
Body length or diameter	16.9 mm
Contact (AC) maximum rated load I	2A@250VAC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@30VDC
Contact resistance	0.1 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VRMS V
Electrical life	50000 Cycle(s)
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	ABS5
Installation features	PANEL MOUNT
Maximum operating force	0.98 N
work location	0.331 inch
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum pre-travel	0.6 mm
seal	ENVIRONMENTALLY SEALED; IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver/Nickel (Ag/Ni)
Termination type	WIRE

Preview

Download Datasheet

View All

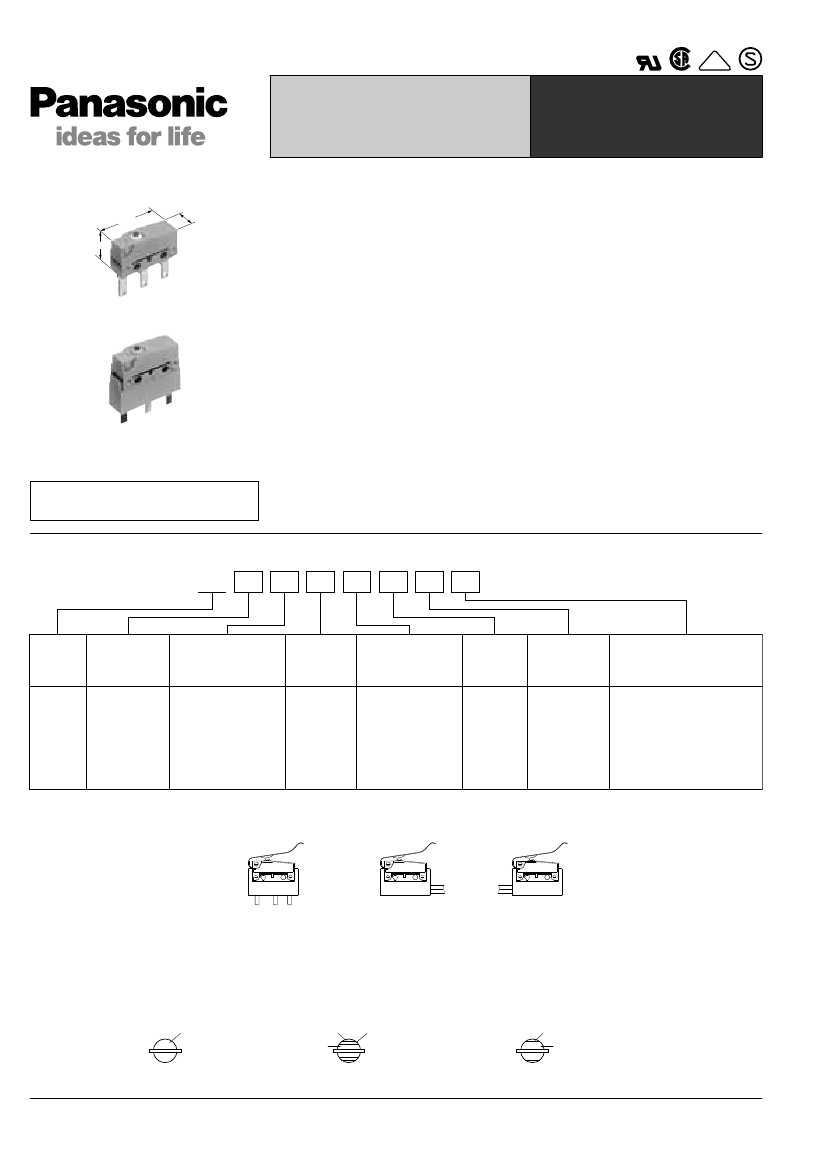

ABS1,4,5

HIGH ENVIRONMENTAL

RESISTANCE

VDE

TURQUOISE SWITCHES

ABS TYPE

FEATURES

19.3

11.1

6.4

• Subminiature size (19.8×11.1×6.4 mm)

• Sealed construction for use in adverse environment-Sealed construction by

epoxy resin and rubber cap greatly reduces possible miscontact due to

contaminants such as dust. Conforming to IP67* of IEC protective construction

classiﬁcation

• Elastomer double molding technology, an industry ﬁrst and ultrasonic swaging

technology contribute to uniform sealing in high production quantities

• Expansion of low-level circuit type

• We offer a Au clad 2-ply contact type (for small loads) that we developed

speciﬁcally for small current and voltage loads in the range of 1 mA to 100 mA

and 5 V to 30 V.

• UL/CSA/VDE/SEMKO approved

(AS for Au-clad twin layer, VDE and SEMKO are not approved.)

* Based on the protective construction classiﬁcation of IEC, items which satisfy the test

requirements are denoted with an IP designation.

TYPICAL APPLICATIONS

http://panasonic-denko.co.jp/

ac/e/service/environment

• Automotive

• Home appliances (vacuum cleaner, air puriﬁer)

• Others (gas cooking range)

ORDERING INFORMATION

Ex. ABS

Type of

switch

Wire

and

terminal

position

Terminal

Contact

arrangement

ABS:

Straight

type 1: .110

quick-connect

Turquoise 4: Right

angle

terminal

switch

5: Left

angle

Solder

terminal

type

5: PC

board

terminal

6: Wire leads

Operating

force

Actuator

Contact*

Agency

standard

pin plunger

(max.)

SPDT

0: Pin plunger

4: 0.98 N

0: AgNi

alloy

UL/CSA/VDE/SEMKO

SPST-NC

Short

hinge lever 5: 1.47 N

1: Au-clad

(AgNi

alloy

contact,

3: SPST-NO

2: Hinge lever

triple layer

Au-clad triple layer type)

Long hinge lever

4: Au-clad

9: UL/CSA

Simulated

roller

double layer

(Au-clad double layer type)

lever

6: Roller lever

Leaf lever

Remarks: 1.

Standard

packing: Dust protected type 100 pcs./carton, 1,000 pcs./case; Immersion protected type 50 pcs./case.

SPST-NC and SPST-NO are

only

available

for wire leads type.

Leaf lever is only

available

for wire leads type

As for wire position:

Straight

type

Wire opposite to the

actuator side

type

(Right

angle)

Wire

actuator side

type

(Left

angle)

5. Not every combination is

available.

Please refer to the following table,

“PRODUCT

TYPES”.

Contact

0: AgNi

alloy

AgNi

alloy

1: Au-clad triple layer

Au-clad

CuNi

alloy

AgNi

alloy

4: Au-clad double layer

Au-clad

CuNi

alloy

06/2009
