SURFACE MOUNT LED LAMP
POWER PLCC-4
QTLP673C-O
Yellow-Orange
QTLP673C-R
Red
QTLP673C-IG
True Green

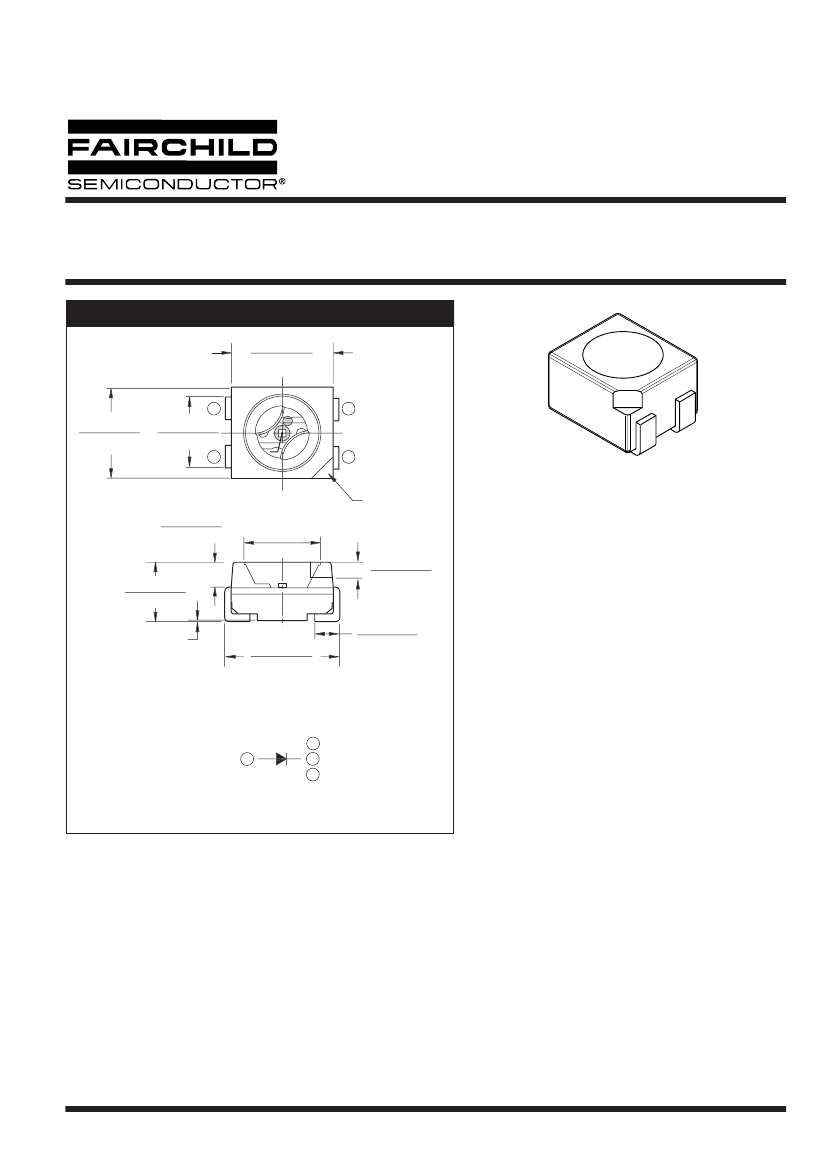

PACKAGE DIMENSIONS
0.134 (3.4)
0.118 (3.0)
QTLP673C
QTLP673C-E
Orange
QTLP673C-IC
Cyan
QTLP673C-Y
Yellow
QTLP673C-IB
Blue
1
3
0.118 (3.0)
0.102 (2.6)
0.094 (2.4)
0.078 (2.0)
2
4
0.035 (0.9)
0.028 (0.7)
TOP
0.094 (2.4)
Polarity
Marking
0.083 (2.1)
0.067 (1.7)
0.004 (0.10)
0.024 (0.6)
0.016 (0.4)
0.149 (3.8)
0.134 (3.4)
0.043 (1.1)
0.020 (0.5)
SIDE
APPLICATIONS
• Automotive interior lighting
• Status indication for consumer electronics and office
equipment
• Information display lighting
2
1
3
4
NOTE:
Dimensions fo all drawings are in
POLARITY
DESCRIPTION
This ultra bright high current surface mount LED is designed with flat top and sides for the ease of pick-and-place by automatic
placement equipment. It is compatible with both IR reflow and TTW (Through-the-Wave) soldering. These LEDs are ideal for back-
lighting and optical coupling into light pipes.
FEATURES
• Small package dimensions of 3.2(L) x 2.8(W) x 1.8(H) mm
• AllnGaP technology for -Y, -O, -R, and -E
• InGaN technology for -IB, -IC, and -IG
• Wide viewing angle of 120°
• Water clear optics
• Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel
Page 1 of 9
8/21/03
SURFACE MOUNT LED LAMP
POWER PLCC-4
QTLP673C-O
Yellow-Orange
QTLP673C-R
Red
QTLP673C-IG
True Green
QTLP673C-Y
Yellow
QTLP673C-IB
Blue
QTLP673C
QTLP673C-E
Orange
QTLP673C-IC
Cyan
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C Unless otherwise specified)
Parameter
Continuous Forward Current
Peak Forward Current
(f = 100 KHz, Duty Factor = 1/10)
Reverse Voltage
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Lead Soldering Time
Symbol
I
F
I
FM
V
R
P
D
T
J
T
OPR
T
STG
T
SOL
QTLP673C-Y/-E/-O/-R
70
100
5
180
125
-40 to +100
-40 to +100
260 for 5 sec
Units
mA
mA
V
mW
°C
°C
°C
°C
ELECTRICAL / OPTICAL CHARACTERISTICS
(T
A
=25°C)
QTLP673C
Part Number
Luminous Intensity (mcd)
T1: 285-355
I
V
T2: 355-450
U1: 450-560
U2: 560-715
Forward Voltage (V)
51
52
Dominant Wavelength (nm)
W: 582-585
X: 585-588
λ
D
Y: 588-591
Z: 591-594
—
Viewing Angle (°)
2
Θ
1
/
2
120
W: 610-615
X: 615-621
—
—
—
120
W: 600-603
X: 603-606
Y: 606-609
Z: 609-612
—
120
—
—
—
—
Full: 620-630
120
I
F
= 50mA
I
F
= 50mA
V
F
2.0-2.3
2.3-2.6
2.0-2.3
2.3-2.6
2.0-2.3
2.3-2.6
2.0-2.3
2.3-2.6
I
F
= 50mA
T1: 285-355
T2: 355-450
U1: 450-560
U2: 560-715
T1: 285-355
T2: 355-450
U1: 450-560
U2: 560-715
T1: 285-355
T2: 355-450
U1: 450-560
U2: 560-715
I
F
= 50mA
Symbol
-Y
-E
-O
-R
Condition
Page 2 of 9
8/21/03
SURFACE MOUNT LED LAMP
POWER PLCC-4
QTLP673C-O
Yellow-Orange
QTLP673C-R
Red
QTLP673C-IG
True Green
QTLP673C-Y
Yellow
QTLP673C-IB
Blue
QTLP673C
QTLP673C-E
Orange
QTLP673C-IC
Cyan
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C Unless otherwise specified)
Parameter
Continuous Forward Current
Peak Forward Current
(f = 100 KHz, Duty Factor = 1/10)
Reverse Voltage
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Lead Soldering Time
Symbol
I
F
I
FM
V
R
P
D
T
J
T
OPR
T
STG
T
SOL
QTLP673C-IG/IC/IB
30
200
5
135
125
-40 to +100
-40 to +100
260 for 5 sec
Units
mA
mA
V
mW
°C
°C
°C
°C
ELECTRICAL / OPTICAL CHARACTERISTICS
(T
A
=25°C)
QTLP673C
Part Number
Luminous Intensity (mcd)
T1: 285-355
T2: 355-450
I
V
U1: 450-560
U2: 560-715
V1: 715-900
V2: 900-1125
Forward Voltage (V)
Typ
Max
Dominant Wavelength (nm)
W: 520-524
X: 524-528
λ
D
Y: 528-532
Z: 532-536
—
Viewing Angle (°)
Tolerance for Luminous Intesity (I
V
): ±11%
Tolerance for V
F
: ±0.1V
Tolerance for
λ
D
: ±1nm
Symbol
-IG
-IB
-IC
Condition
Q2: 90-112.5
R1: 112.5-140
R2: 140-180
S1: 180-224
S2: 280-355
T1: 285-355
T2: 355-450
U1: 450-560
U2: 560-715
V1: 715-900
V2: 900-1125
I
F
= 30mA
V
F
3.9
4.55
3.9
4.55
W: 464-468
X: 468-472
Y: 472-476
Z: 476-480
—
120
3.9
4.55
W: 499-503
X: 503-507
Y: 507-511
—
—
120
I
F
= 30mA
I
F
= 30mA
2
Θ
1
/
2
120
I
F
= 30mA
Page 3 of 9
8/21/03
SURFACE MOUNT LED LAMP
POWER PLCC-4
QTLP673C-O
Yellow-Orange
QTLP673C-R
Red
QTLP673C-IG
True Green
QTLP673C-Y
Yellow
QTLP673C-IB
Blue
QTLP673C
QTLP673C-E
Orange
QTLP673C-IC
Cyan

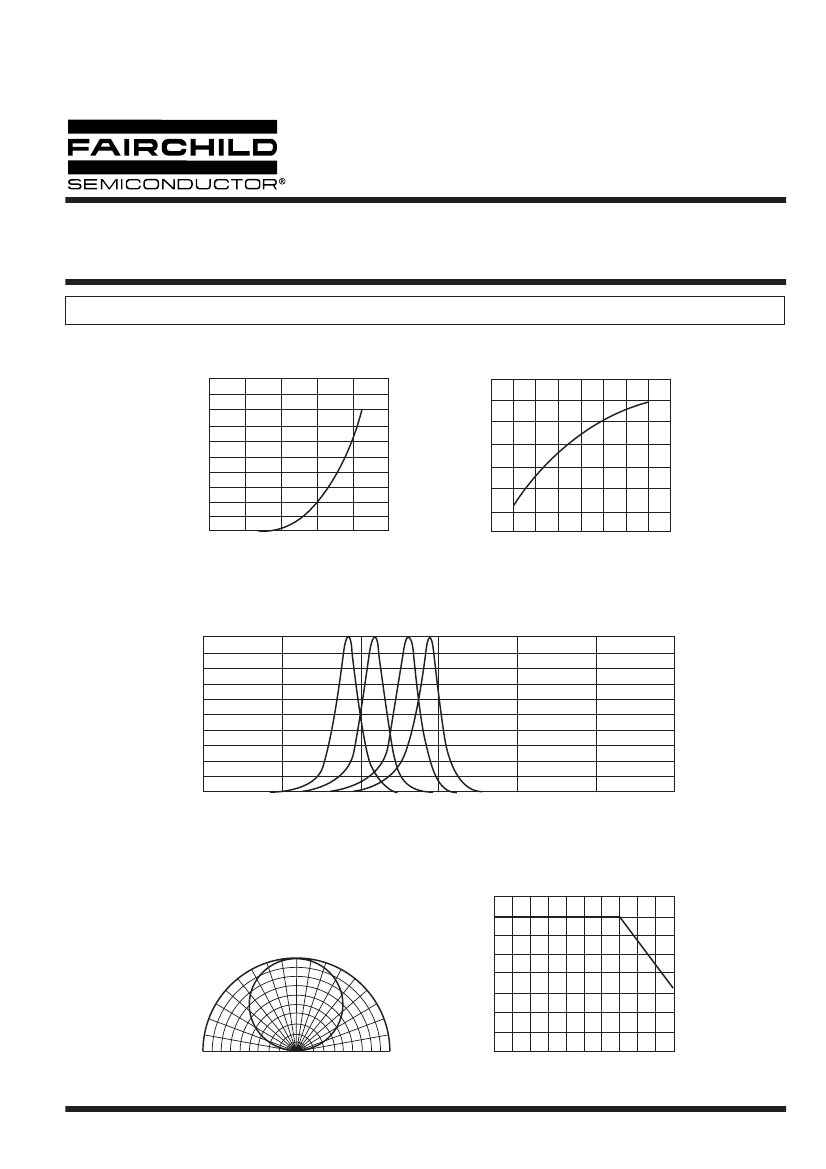

TYPICAL PERFORMANCE CURVES QTLP673C-O/-R/-Y/-E
Fig. 1 Forward Current (mA)
vs. Forward Voltage
100
90
Fig. 2 Relative Luminuous Intensity
vs. Forward Current
Relative Intensity, Normalized at 50mA.
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
70
80
Forward Current (mA)
80
70
60
50
40
30
20
10
0
1.4
1.6
1.8
2.0
2.2
2.4
FORWARD VOLTAGE (V)
FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
1.0
0.9
Y
O
E
R
RELATIVE INTENSITY
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
500
550
600
650
700
750
800
WAVELENGTH (nm)
Fig. 4 Radiation Diagram
80
Fig. 5 Maximum Forward Current
vs. Ambient Temperature
I
F
- FORWARD CURRENT (mA)
70
60
50
40
30
20
10
0
0
10 20 30 40 50 60 70 80 90 100
-30°
-40°
-50°
-60°
-70°
-80°
-90°
0° 10°
-20° -10°
20°
30°
40°
50°
60°
70°
80°
1.0 0.8 0.6 0.4
0.2 0
0.2
90°
0.4 0.6 0.8 1.0
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE T
A
(°C)
Page 4 of 9
8/21/03
SURFACE MOUNT LED LAMP
POWER PLCC-4
QTLP673C-O
Yellow-Orange
QTLP673C-R
Red
QTLP673C-IG
True Green
QTLP673C-Y
Yellow
QTLP673C-IB
Blue
QTLP673C
QTLP673C-E
Orange
QTLP673C-IC
Cyan

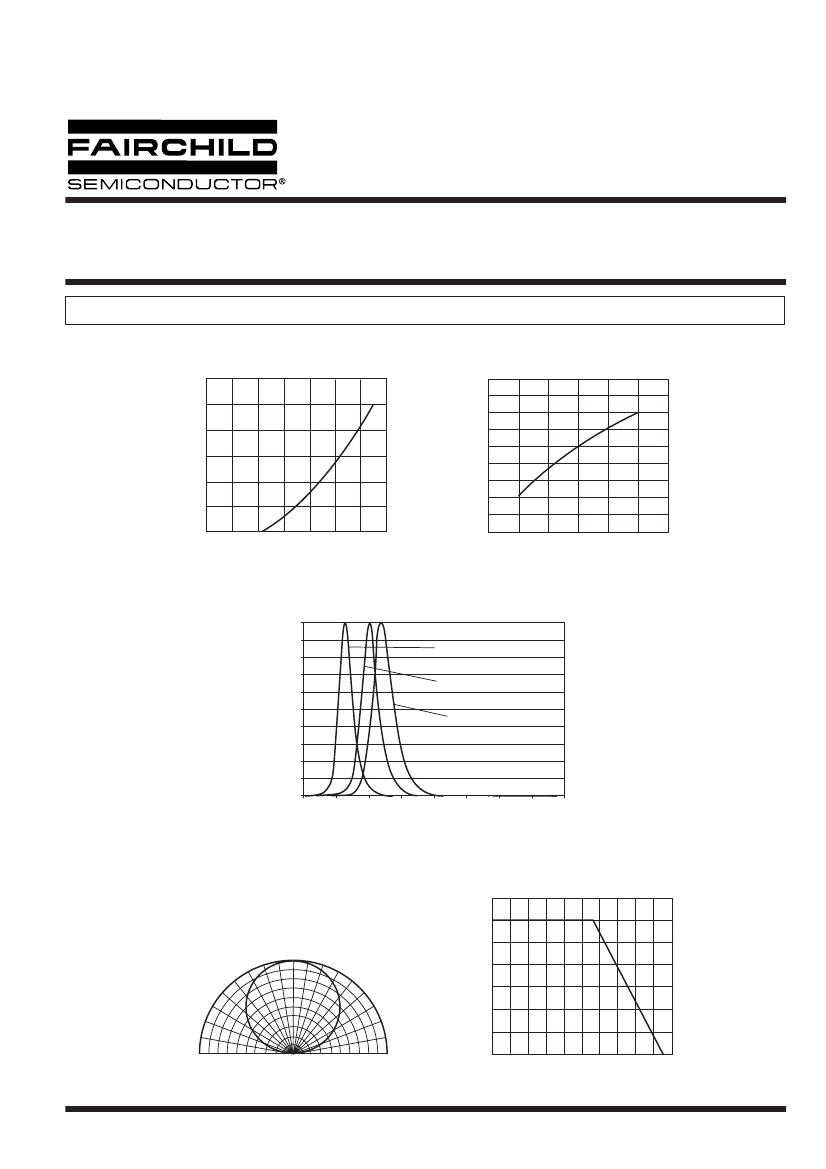

TYPICAL PERFORMANCE CURVES QTLP673C-IC/-IB/-IG
Fig. 1 Forward Current (mA)
vs. Forward Voltage
60
50
40
30
20
10
0
1.5
Fig. 2 Relative Luminuous Intensity
vs. Forward Current
Relative Intensity, Normalized at 30mA.
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
Forward Current (mA)
2.0
2.5
3.0
3.5
4.0
4.5
5.0
FORWARD VOLTAGE (V)
FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
1.0
0.9
Blue
0.8
0.7
Relative Intensity
Cyan
0.6
0.5
True Green
0.4
0.3
0.2
0.1
0.0
400
450
500
550
600
650
700
750
800
Wavelength (nm)
Fig. 4 Radiation Diagram
35
Fig. 5 Maximum Forward Current
vs. Ambient Temperature
I
F
- FORWARD CURRENT (mA)
30
25
20
15
10
5
0
0
10 20 30 40 50 60 70 80 90 100
-30°
-40°
-50°
-60°
-70°
-80°
-90°
-20° -10°
0° 10°
20°
30°
40°
50°
60°
70°
80°
1.0 0.8 0.6 0.4
0.2 0
0.2
90°
0.4 0.6 0.8 1.0
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE T
A
(°C)
Page 5 of 9
8/21/03
