2691-1005: Description2000MHz - 8000MHz RF/MICROWAVE LIMITER; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2691-1005 Overview

2000MHz - 8000MHz RF/MICROWAVE LIMITER

2691-1005 Parametric

Parameter Name	Attribute value
Objectid	1439762516
Reach Compliance Code	unknown
Other features	SMA-F
Adjustability	FIXED
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum operating frequency	8000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Maximum output power	7 dBm
RF/Microwave Device Types	LIMITER
Maximum voltage standing wave ratio	1.6

Preview

Download Datasheet

View All

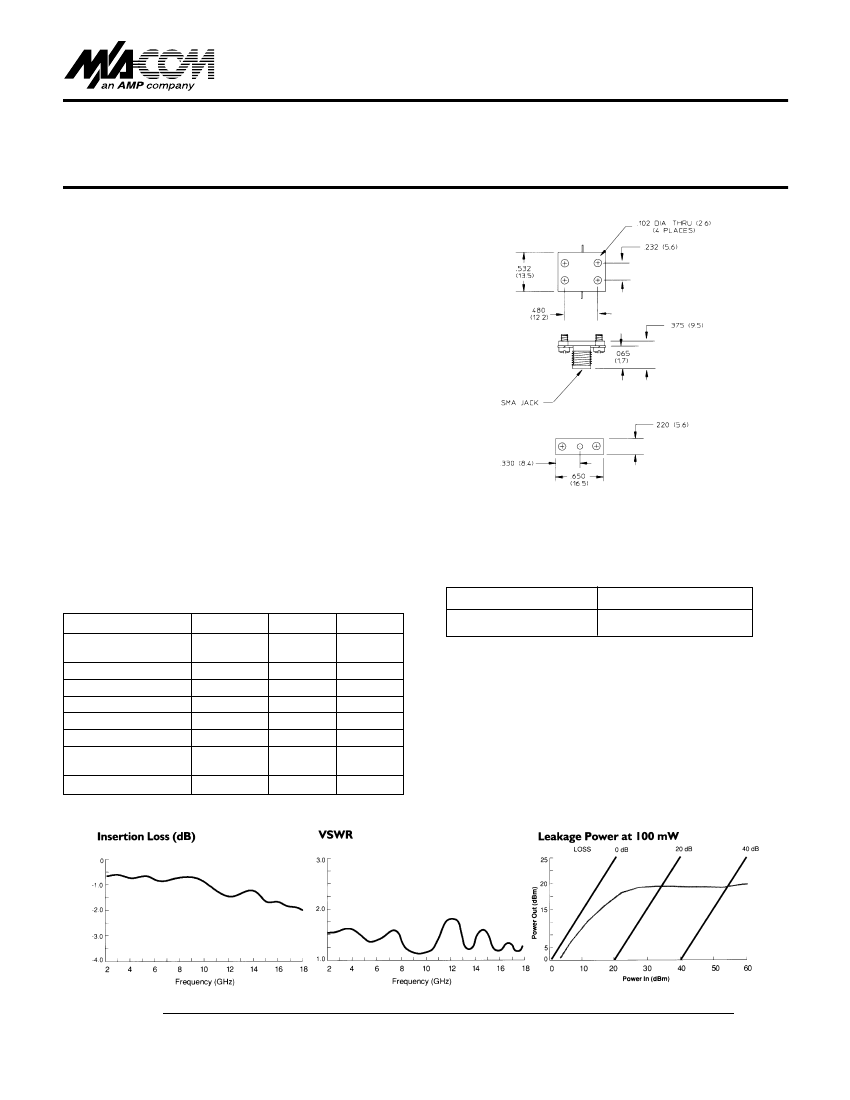

Coaxial Limiters

With Removable Connectors

2691-Series

Features

q

2691 Series

V2.00

Broadband Frequency Ranges

Environmentally Sealed

Feedback Leveling

Small Size

Supplied with RF Connectors (SMA female)

Description

M/A-COM’s 2691 series is a line of completely passive

solid state receiver protectors. They exhibit octave and

multi-octave performance using a unique construction

technique involving PIN diodes in broadband microstrip

circuits. These limiters may be used as drop-ins in

stripline assemblies. In addition, the field-replaceable

connectors allow replacement of a damaged connector

without violating the hermetic seal. Typical insertion loss

and VSWR curves are shown below.

Environmental

These devices are designed to meet the following screen-

ing conditions:

Test

Non-Destructive

Bond Pull

Internal Visual

Stabilization Bake

Thermal Cycle

Constant Acceleration

Burn-in

Seal

Fine

Gross

External Visual

MIL-STD

883

Method

2023

2017

1008

1010

2001

1015

1014

2009

Cond

Maximum Ratings

Storage Temp.

Operating Temp.

-65°C to +125°C

-55°C to +85°C

B

A(YI Axis)

125°C

AI

Cl

Typical Performance Data 2691-1015

Speciﬁcations Subject to Change Without Notice.

M/A-COM, Inc.

North America:

Tel. (800) 366-2266

Fax (800) 618-8883

s

1

Asia/Paciﬁc: Tel. +81 (03) 3226-1671

Fax +81 (03) 3226-1451

s

Europe: Tel. +44 (1344) 869 595

Fax +44 (1344) 300 020

2691-1005 Related Products

	2691-1005	2691-1015	2691-1013	2691-1009	2691-1007
Description	2000MHz - 8000MHz RF/MICROWAVE LIMITER	2000MHz - 18000MHz RF/MICROWAVE LIMITER	2000MHz - 18000MHz RF/MICROWAVE LIMITER	8000MHz - 18000MHz RF/MICROWAVE LIMITER	2000MHz - 8000MHz RF/MICROWAVE LIMITER
Objectid	1439762516	1439762534	1439762529	1439762525	1439762521
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F	SMA-F	SMA-F	SMA-F	SMA-F
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	34.77 dBm	30 dBm	30 dBm	34.77 dBm
Maximum operating frequency	8000 MHz	18000 MHz	18000 MHz	18000 MHz	8000 MHz
Minimum operating frequency	2000 MHz	2000 MHz	2000 MHz	8000 MHz	2000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output power	7 dBm	7 dBm	7 dBm	7 dBm	7 dBm
RF/Microwave Device Types	LIMITER	LIMITER	LIMITER	LIMITER	LIMITER
Maximum voltage standing wave ratio	1.6	2	2	2	1.6
