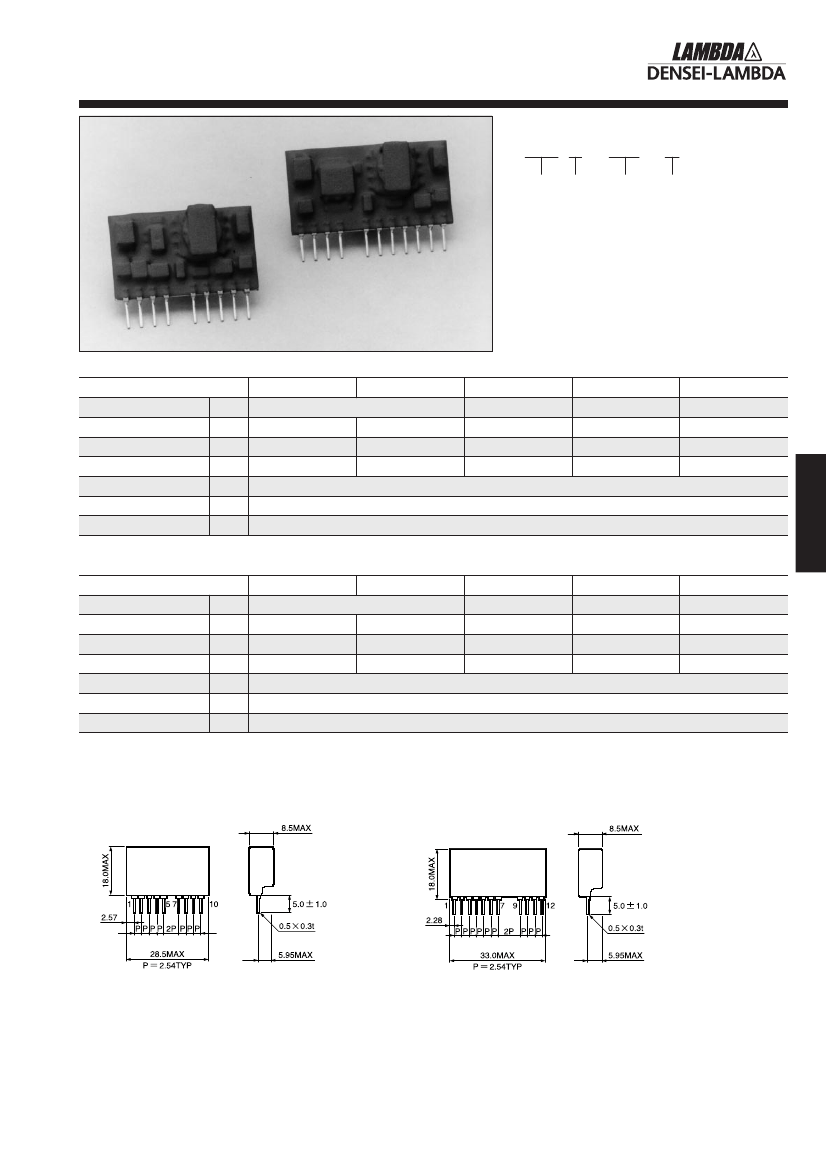

PV
-SERIES
Single in-line DC-DC converter
Single output 1.5W/3W
Model name
PV 3 - 24 - 5
Series
name
Output
power
Input
voltage
Output
voltage
Features
Input/Output isolation
Single in-line type
Over current protection
Adjustable output voltage
PV1R5 (1.5W type) Specifications
Model
Input Voltage
Output Voltage (*1)
Output Current (max)
Output Power (max)
Withstand Voltage
Cooling
Operating Temperature
Vdc
Vdc
mA
W
—
—
—
PV1R5-5-5
PV1R5-5-12
PV1R5-12-5
12VDC (9 ~ 18V)
5V±5% (6V)
0 ~ 300 (250)
1.5
PV1R5-24-5
24VDC (18 ~ 36V)
5V±5% (6V)
0 ~ 300 (250)
1.5
PV1R5-48-5
48VDC (36 ~ 72V)
5V±5% (6V)
0 ~ 300 (250)
5VDC (4.5 ~ 9.0V)
5V±5% (6V)
0 ~ 300 (250)
1.5
12V±5% (15V)
0 ~ 125 (100)
1.5
On-Board Type Power Supply
1.5
Input to Output : 500VAC for 1 minute
Convection cooling
–20 ~ +70°C (–20 ~ +50°C: 100%, +60°C: 70%, +70°C: 40%)
PV3 (3W type) Specifications
Model
Input Voltage
Output Voltage (*1)
Output Current (max)
Output Power (max)
Withstand Voltage
Cooling
Operating Temperature
Vdc
Vdc
mA
W
—
—
—
PV3-5-5
PV3-5-12
PV3-12-5
12VDC (9 ~ 18V)
5V±5%
0 ~ 600 (500)
3.0
PV3-24-5
24VDC (18 ~ 36V)
5V±5%
0 ~ 600 (500)
3.0
PV3-48-5
48VDC (36 ~ 72V)
5V±5%
0 ~ 600 (500)
3.0
5VDC (4.5 ~ 9.0V)
5V±5%
0 ~ 600 (500)
3.0
12V±5% (15V)
0 ~ 250 (200)
3.0
Input to Output : 500VAC for 1 minute
Convection cooling
–20 ~ +70°C (–20 ~ +50°C: 100%, +60°C: 70%, +70°C: 40%)
(*1) Refer to Terminal connection
(*2) External capacitors are required at both input and output.
(*3) Over current protection: Output current limiting automatic recovery. Avoid to operate overload or dead short for more than 30 seconds.
Outline drawing
PV1R5 (1.5W type)
PV3 (3W type)
1 : +V Output pin
2,3: NC No connect
4 : –V Output pin
5 : TRM Output voltage setting pin
7,8 : –V Input pin
9,10 : +V Input pin
1,2: +V Output pin
3,4: NC No connect
5,6: –V Output pin
7 : TRM Output voltage setting pin
9,10 : –V Input pin
11,12: +V Input pin
Terminal connection
Output voltage can be adjusted by TRM terminal.
Output power must be within the rating, when increasing the output voltage.
PP1R5 (1.5W type)
12V output: 5pin open 15V output: 5pin to 4pin connected
PP3 (3W type)
12V output: 7pin open 15V output: 7pin to 5pin (6pin) connected
(5V type adjustable to 6V)
123

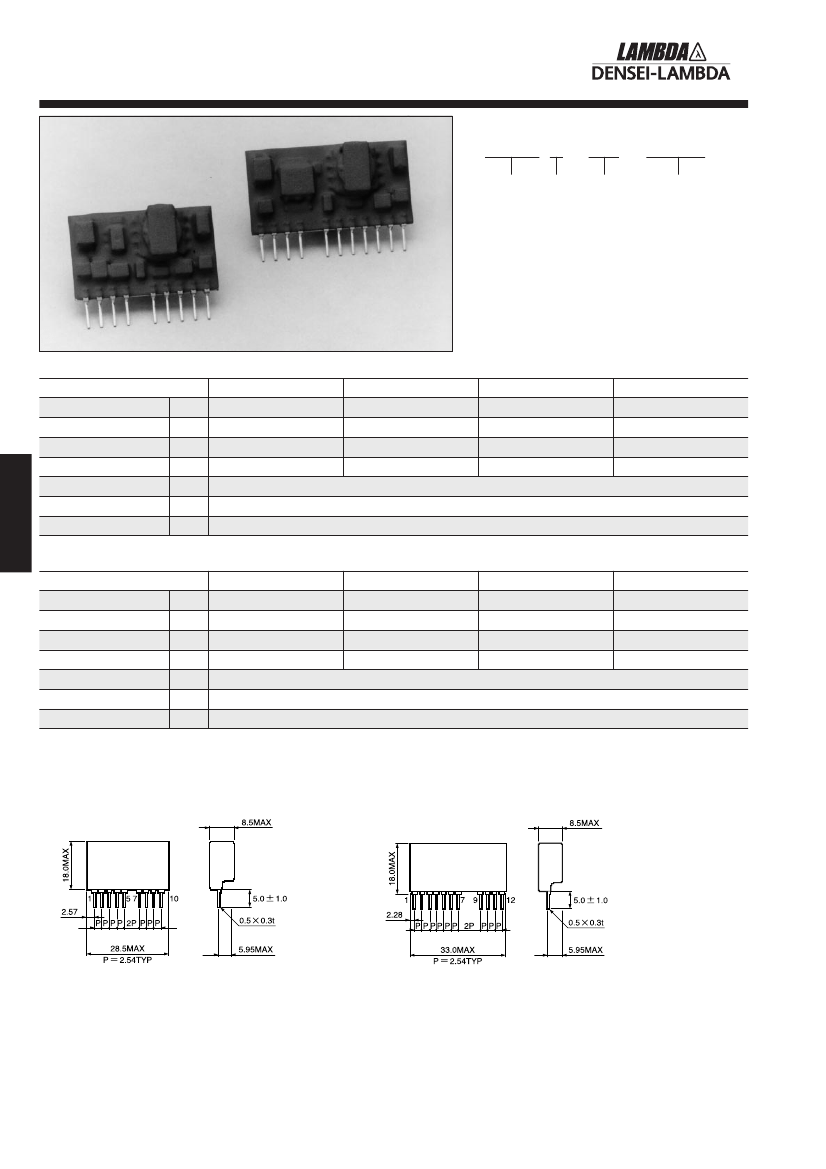

PVD
-SERIES
Single in-line DC-DC converter
Dual output 1.5W/3W
Model name
PVD 3 - 24 - 1212
Series
name
Output
power
Input
voltage
Output
voltage
Features
Input/Output isolation
Single in-line type
Over current protection
Adjustable output voltage
PVD1R5 (1.5W type) Specifications
Model
Input Voltage
Output Voltage (*1)
Output Current (max)
Vdc
Vdc
mA
W
—
—
—
PVD1R5-5-1212
5VDC (4.5~9.0V)
±12V±5%
0 ~ ±60
1.44
(±15V±5%)
(0 ~ ±50)
(1.5)
PVD1R5-12-1212
12VDC (9~18V)
±12V±5%
0 ~ ±60
1.44
(±15V±5%)
(0 ~ ±50)
(1.5)
PVD1R5-24-1212
24VDC (18~36V)
±12V±5%
0 ~ ±60
1.44
(±15V±5%)
(0 ~ ±50)
(1.5)
PVD1R5-48-1212
48VDC (36~72V)
±12V±5%
0 ~ ±60
1.44
(±15V±5%)
(0 ~ ±50)
(1.5)
On-Board Type Power Supply
Output Power (max)
Withstand Voltage
Cooling
Operating Temperature
Input to Output : 500VAC for 1 minute
Convection cooling
–20 ~ +70°C (–20 ~ +50°C: 100%, +70°C: 50%)
PVD3 (3W type) Specifications
Model
Input Voltage
Output Voltage (*1)
Output Current (max)
Output Power (max)
Withstand Voltage
Cooling
Operating Temperature
Vdc
Vdc
mA
W
—
—
—
PVD3-5-1212
5VDC (4.5~9.0V)
±12V±5%
0 ~ ±125
3.0
Input to Output : 500VAC for 1 minute
Convection cooling
–20 ~ +70°C (–20 ~ +50°C: 100%, +70°C: 50%)
(±15V±5%)
(0 ~ ±100)
PVD3-12-1212
12VDC (9~18V)
±12V±5%
0 ~ ±125
3.0
(±15V±5%)
(0 ~ ±100)
PVD3-24-1212
24VDC (18~36V)
±12V±5%
0 ~ ±125
3.0
(±15V±5%)
(0 ~ ±100)
PVD3-48-1212
48VDC (36~72V)
±12V±5%
0 ~ ±125
3.0
(±15V±5%)
(0 ~ ±100)
(*1) Refer to Terminal connection
(*2) External capacitors are required at both input and output.
(*3) Over current protection: Output current limiting automatic recovery. Avoid to operate overload or dead short for more than 30 seconds.
Outline drawing
PVD1R5 (1.5W type)
PVD3 (3W type)
1 : +V Output pin
2,3: Common ground pin
4 : –V Output pin
5 : TRM Output voltage setting pin
7,8 : –V Input pin
9,10 : +V Input pin
1,2: +V Output pin
7 : TRM Output voltage setting pin
3,4: Common ground pin 9,10 : –V Input pin
5,6: –V Output pin
11,12: +V Input pin
Terminal connection
Output voltage can be adjusted by TRM terminal.
Output power must be within the rating, when increasing the output voltage.
PPD1R5 (1.5W type) ±12V output: 5pin open ±15V output: 5pin to 4pin connected
PPD3 (3W type)
±12V output: 7pin open ±15V output: 7pin to 5pin (6pin) connected
124
