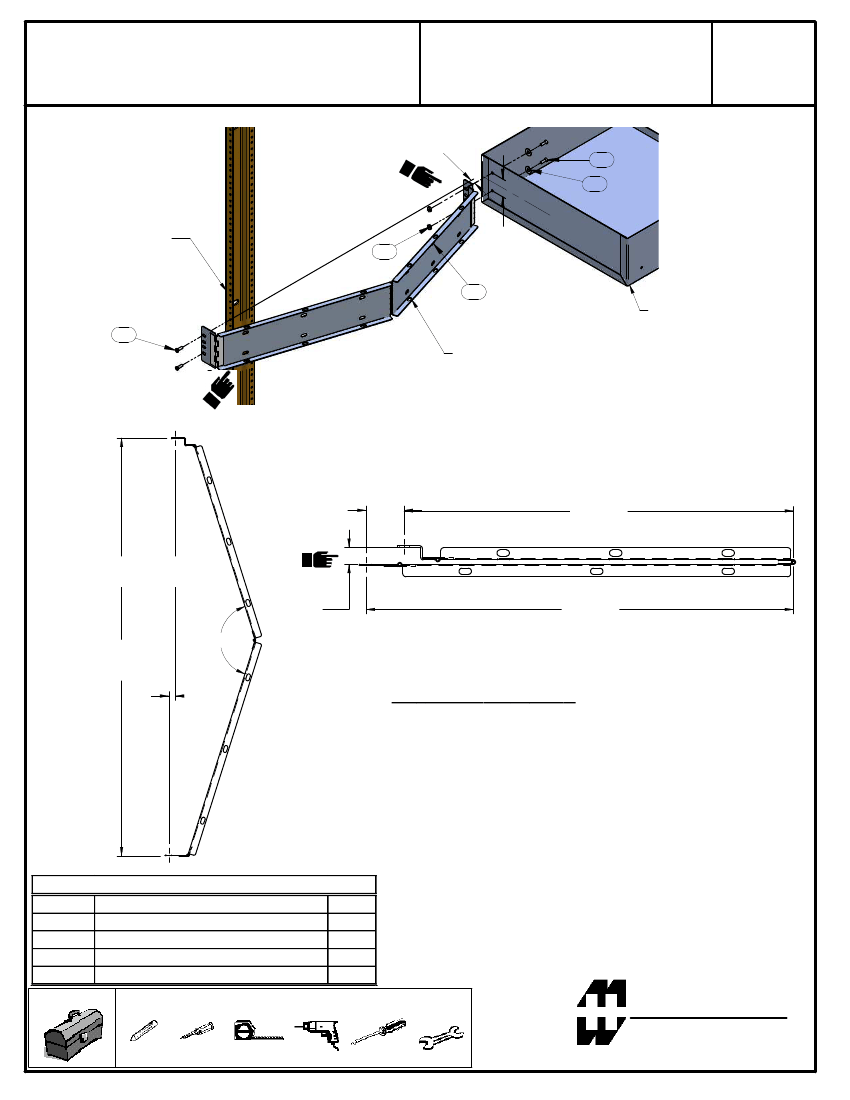

C-GUIDE CABLE EXTENSION
ASSEMBLY VIEW OF
CABLE EXTENSION
SEE
STEP C
ASSEMBLY INSTRUCTIONS FOR
RIBBION CABLE EXTENSION
1.52"
38.6mm
BUL10240
REV.
A
PAGE 1 OF 1
2
3
C
L
1.75"
44.5mm
REAR TAPPED
COMBINATION RAIL
REFERRED TO IN
STEP A AND B.
4
1
2
NOTE: KEEP RIBBON CA-
BLE TO THIS SIDE OF
CABLE EXTENSION.
REFERRED TO IN
STEP E.
PULLOUT DRAWER
OR SHELF
SEE
STEP A
1.52
38.6mm
15.58
401.3mm
FIG. 2 CABLE EXTENSION AT
MAXIMUM OPEN POSITION
SEE
STEP B
.67
17.0mm
17.10
443.3mm
29.2 "/742 mm
MAXIMUM
EXTENSION
145°
FIG. 1 CABLE EXTENSION
IN CLOSED POSITION
1.52"
38.6mm
ASSEMBLY INSTRUCTIONS:
A) Mount cable extension (item 1) t o rear tapped combination rail centered
to drawer or shelf. Use 10-32 screws (item 2) thru oblong slots on flat
hinge bracket as shown in assembly view.
B) Check extension in closed position by pushing drawer/shelf fully closed.
Min distance of .67”(17mm) allowed. See Fig. 1. If extension is binding
adjust rear combination rail towards rear until .67”(17mm) or greater is
achieved.
C) Mark hole centers on drawer/shelf thru oblong slots, center punch and
drill 13/64 (.203)/5.2mm dia. ho le as shown in assembly view. Mount
extension to drawer or shelf using 10-32 screw, flat washer and hex nut
(items 2, 3 & 4).
D) With cable extension mounted to the corner vertical and drawer/shelf,
pull drawer/shelf out and check that the e xtension does not exceed the
29.2”/ 742mm MAX EXTENSION shown in fig. 2.
E) Fasten ribbon cable to extension using cable ties provided thru desired
slots on extension.
PARTS LIST
ITEM No.
DESCRIPTION
CABLE EXTENSION
1
10-32 SCREW
2
#10 FLAT WASHER
3
10-32 HEX NUT
4
TOOL BOX
Pencil
QTY
1
4
2
2
Electirc Drill
.203/5.2mm bit
Centre
Punch
Tape
Measure
Phillips
Screw Driver
3/8 Open End
Wrench
