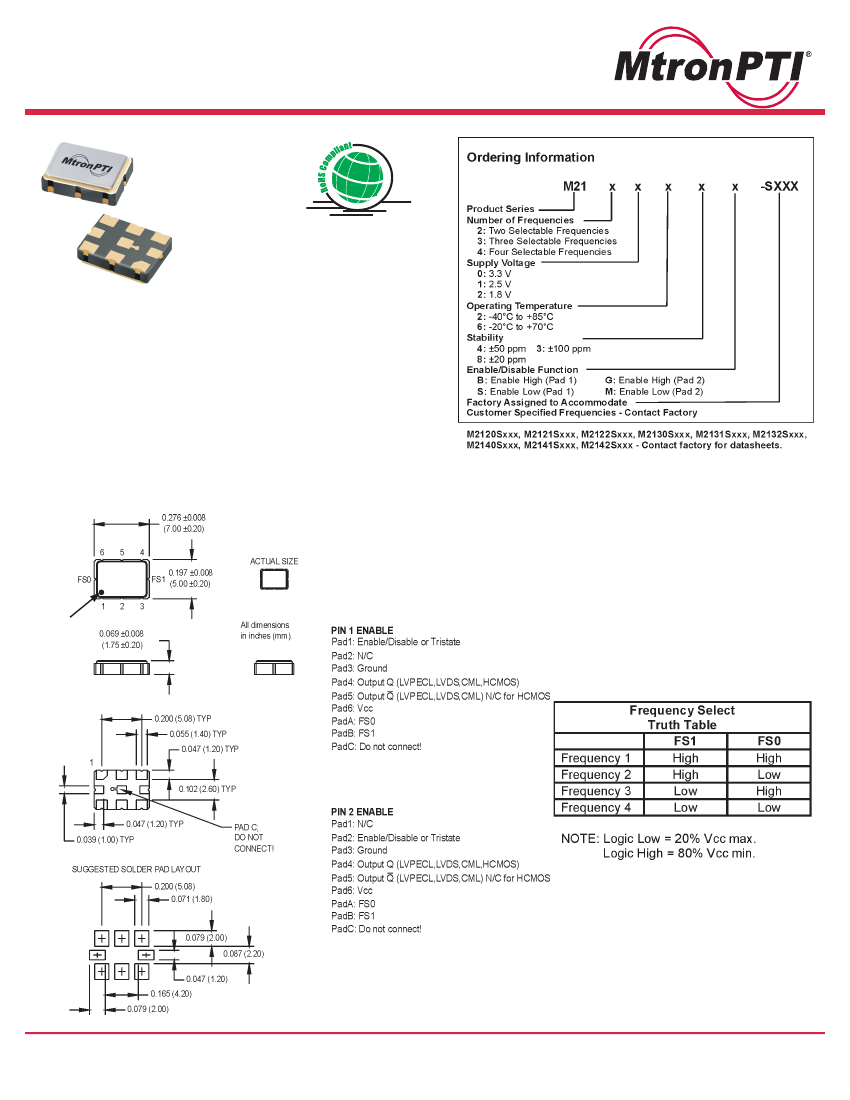

M21x Series Multiple Frequency Clock Oscillator
5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output
QiK Chip™
Features:
•
Multiple Output Frequencies (2, 3, or 4) - Selectable
•
QiK Chip
TM
Technology
•
Superior Jitter Performance (comparable to SAW based)
•
Frequencies from 50 MHz - 1.4 GHz (LVDS/LVPECL/CML) and
10 - 150 MHz (CMOS)
Phase Lock Loop Applications:
•
Where more than one selectable frequency is required for differ-
ent global regions, FEC (Forward Error Correction) or selectable
funcionality are required.
•
Telecommunications such as SONET / SDH / DWDM / FEC /
SERDES / OC-3 thru OC-192
•
Wireless base stations / WLAN / Gigabit Ethernet
• Avionic flight controls and military communications
DENOTES PIN 1
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
Revision: 2-12-08

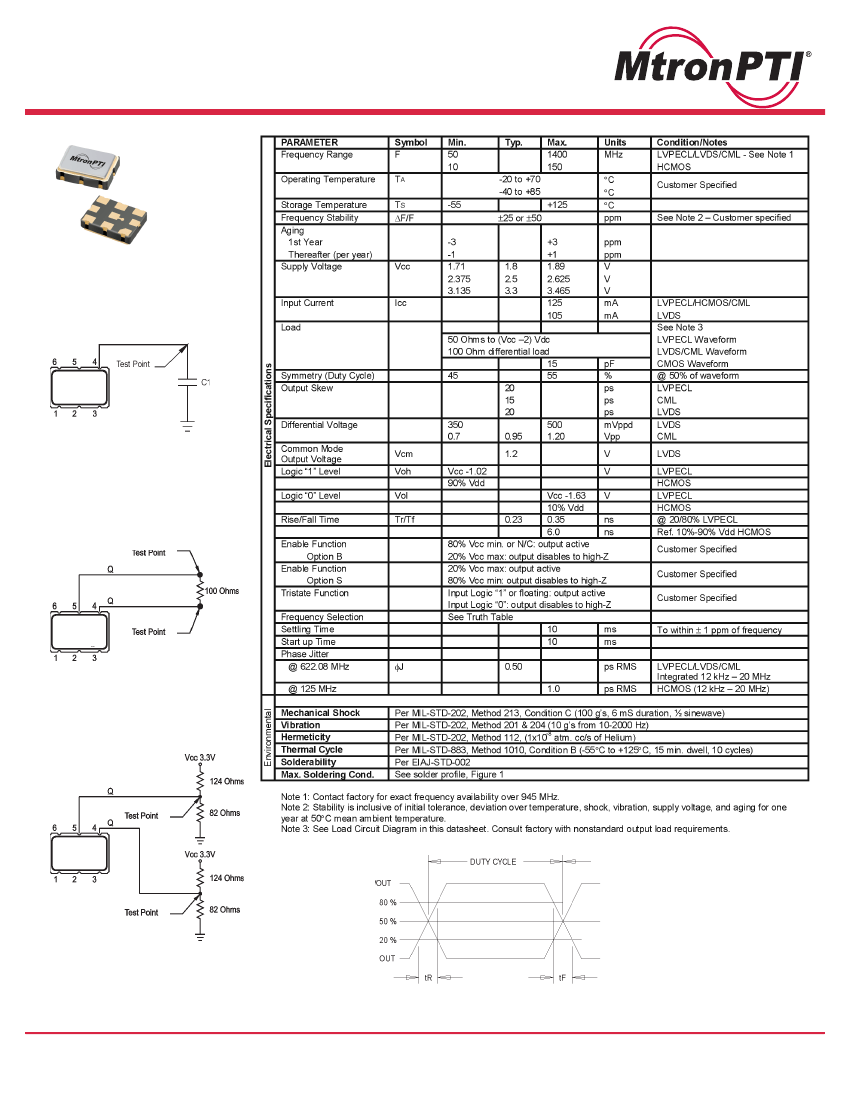

M21x Series Multiple Frequency Clock Oscillator
5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output
HCMOS Load Circuit
LVDS Load Circuit
3.3V LVPECL Load Circuit
Output Waveform: LVDS/CML/LVPECL
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
MtronPTI Lead Free Solder Profile
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
