MEAS STATOR RTD
Variety of Configurations
Single and Dual Elements
Custom Designs Available with:
» Specific Dimensions
» Side Exit
» Paddle Style
» High Accuracy
» Special Cable or Leadwires
Temperature Sensor
The Stator RTD Sensor is a rectangular, flat, laminated sensors
commonly called “Stator Sticks” because they are inserted between the
coils in the stator of a motor. These averaging type sensors are used in
electric motors and generators for continuous sensing of the
temperature and provide for consistent thermal monitoring without false
alarms. Many sizes are in stock or we can customize for your
application. Our Stator RTD sensors are built to meet the specifications
of ANSI C50.10-1990, general requirements for synchronous motors.
We can build to your specifications!
Features
Rear Exit, Epoxy Glass Laminated
Elements, Single and Dual:
» Platinum, Copper, Nickel
Custom Body Thickness: .030” to .375”
»
Standard: .030”, .050”, .078”, .093”, .125”
Custom Body
Widths: .250” to 2.50”
»
Standard: .260”, .305”, .344”, .455”, .500”, .625”
Leadwire/Cable Options
Applications
Industrial
Electric Motors
Generators
TESS-ANDO-408-0000052
REV A
SENSOR SOLUTIONS
/// MEAS STATOR RTD
Page 1
MEAS STATOR RTD
Temperature Sensor
Performance Specifications
Dielectric Strength:
Class F: 3,000 volts RMS @ 60 Hz for 1 minute,
between leads and external body surface
Class H: 2,000 volts RMS @ 60 Hz for 1 minute,
between leads and external body surface
Temperature Limits:
Class F: 155°C (311°F)
Class H: 180°C (356°F)
RTD Leadwires:
Two Wire, Three Wire or Four Wire
Standard: Stranded Copper plated wire with PTFE insulation
Other leadwire coverings available

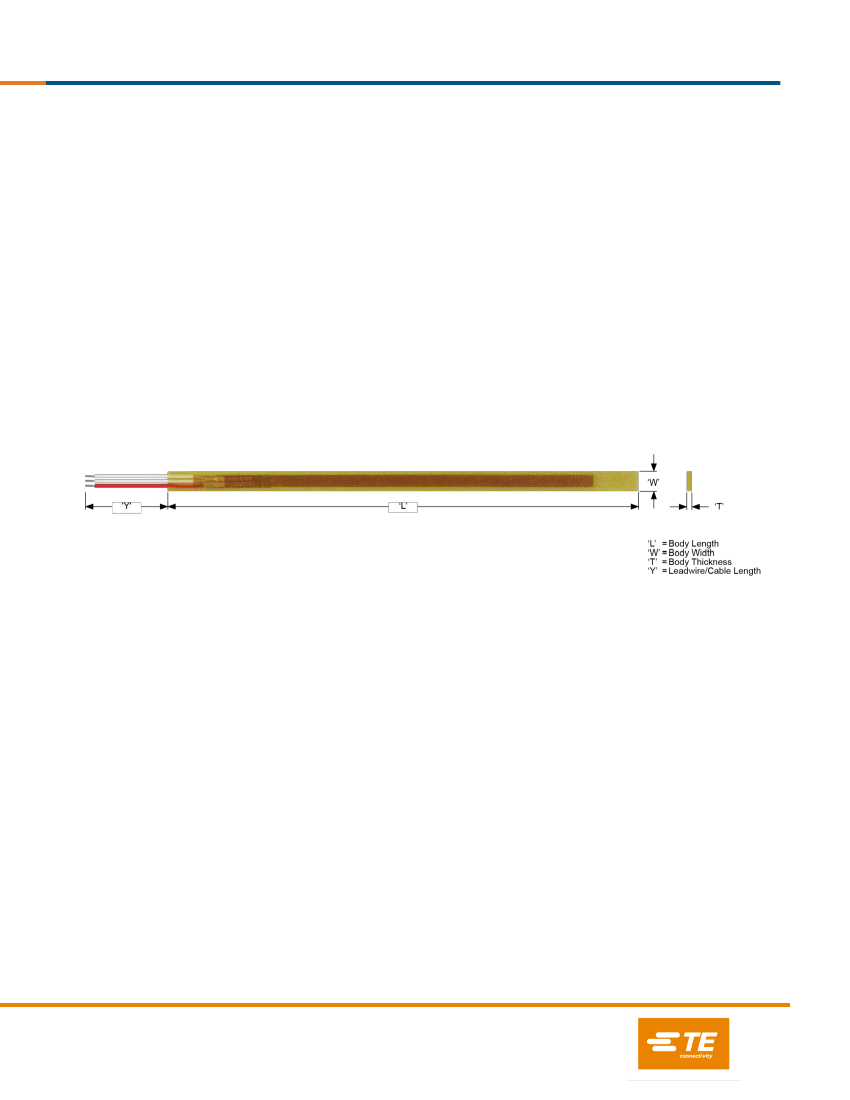

Dimensions
TESS-ANDO-408-0000052
REV A
SENSOR SOLUTIONS
/// MEAS STATOR RTD
Page 2
MEAS STATOR RTD
Temperature Sensor
Ordering Information
STATOR RTD SENSOR, REAR EXIT
Model Classification Temperature Limit
300F Class F
300H Class H
Model Element
P2B
P2C
P2D
G2C
C1D
N3C
Model
----
155°C
180°C
Accuracy
Material
Dielectric Strength
Epoxy Glass 3,000 Volts
Epoxy Glass 2,000 Volts
Temperature Coefficient
.00385
.00385
.00385
.00392
.00427
.00672
STOCKED PART NUMBERS*
Part Number
R-8203
R-8204
R-8205
R-7119
R-1802
R-8949-34
R-5156
R-7124
R-7123
R-10256-23
Model Number
300H C1D 10.00 3S H 180 A
300H P2C 10.00 3S H 180 A
300H N3C 10.00 3S H 180 A
300H P2C 10.00 3S C 180 B
300H C1D 10.00 3S C 036 B
300F G2C 11.00 3S B 096 C
300F G2C 12.00 3S B 096 C
300H C1D 6.00 3S H 180 A
300H N3C 6.00 3S H 180 A
300H P2C 10.00 3D A 096 E
Platinum
100 Ohm ±.12% at 0°C
Platinum
100 Ohm ±.5% at 0°C
Platinum
100 Ohm ±.2% at 0°C
Platinum
100 Ohm ±.5% at 0°C
Copper
10 Ohm ±.2% at 25°C
Nickel
120 Ohm ±.5% at 0°C
'L' Body Length
Define 'L' Length in Inches
Example: 10.00 = 10.00”; 6.25 = 6.25”
Model Leadwires, Element Configuration
2S
3S
4S
3D
Model
A
B
C
D
E
F
G
H
Model
Two Wire, Single
Three Wire, Single
Four Wire, Single
Three Wire, Dual
'T' Body Thickness
* Please consult factory for availability.
Color Code
Red/White
Red/White/White
Red/Red/White/White
Red/White/White // Blue/Yellow/Yellow
Standard Leadwires
.030"
30 AWG
.050"
26 AWG
.078"
22 AWG
.093"
22 AWG
.125"
22 AWG
.093"
22 AWG, Jacketed Cable
.125"
22 AWG, Jacketed Cable
.030”
26 AWG (0.050” Thick at Lead Exit)
'Y' Leadwire/Cable Options
----
Define 'Y' Length in Whole Inches (120 = 120.0"; 036 = 36.0”)
Model 'W' Body Width
A
B
C
D
E
F
.260" (Single Element Only)
.305" (Single Element Only)
.344" (Single Element Only)
.455" (Single Element Only)
.500"
.625"
NORTH AMERICA
Measurement Specialties, Inc.,
a TE Connectivity Company
Tel: 800-522-6752
customercare.ando@te.com
EUROPE
Measurement Specialties (Europe), Ltd.,
a TE Connectivity Company
Tel: 800-440-5100
customercare.tlse@te.com
ASIA
Measurement Specialties (China), Ltd.,
a TE Connectivity Company
Tel: 0400-820-6015
customercare.chdu@te.com
te.com/sensorsolutions
Measurement Specialties, Inc., a TE Connectivity company.
Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to
herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or
misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2016
TE Connectivity Ltd. family of companies
All Rights Reserved.
TESS-ANDO-408-0000052
REV A
SENSOR SOLUTIONS
/// MEAS STATOR RTD
Page 3
