Proto Board
Proto board
is an additional board used to develop a device prototype. The
proto board
includes mutually isolated pads used for
placing and connecting components necessary for prototype devlopment. The
proto board
features female 2x5 connectors that are
connected to male 2x5 connectors provided on the development system. Figure 1-1 shows how to connect the
proto board
to the
development system correctly.
Proto boards
are not universal, which means that different
proto boards
suit different development
systems.
Components placed on
the proto board
Female 2x5 connector

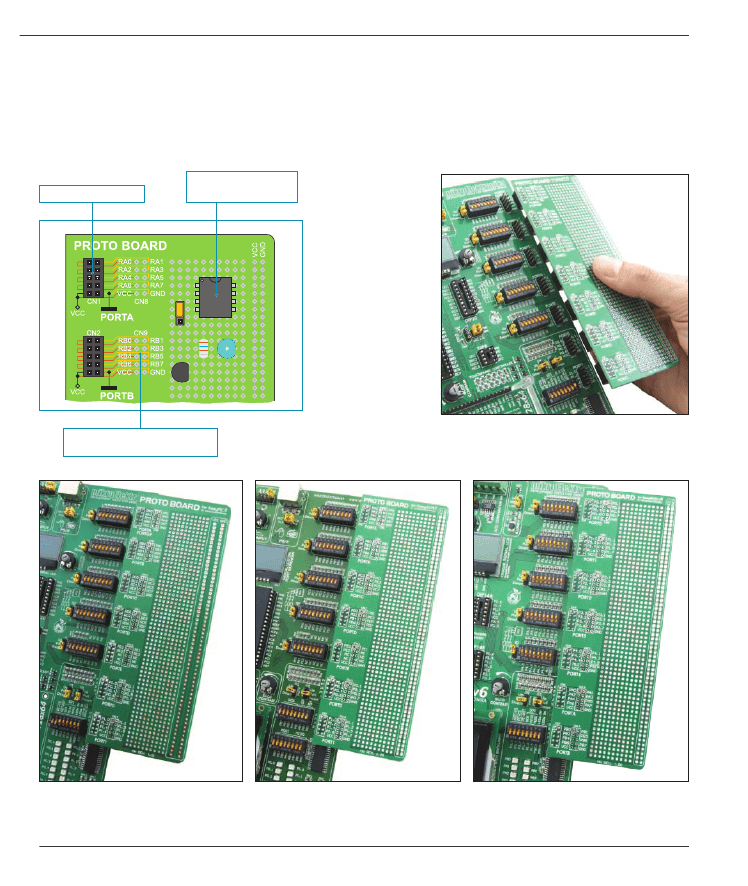

Figure 1-1:
Proto board placing
Pads connected to I/O ports of the
development system
Figure 1-2:
Proto board connected to EasyPIC6
Figure 1-3:
Proto board connected to EasyAVR6
Figure 1-4:
Proto board connected to Easy8051 v6
NOTE:
In addition to the above mentioned proto boards, there are also proto boards that match EasyPIC5 and BIGPIC6
development systems.
