Data sheet

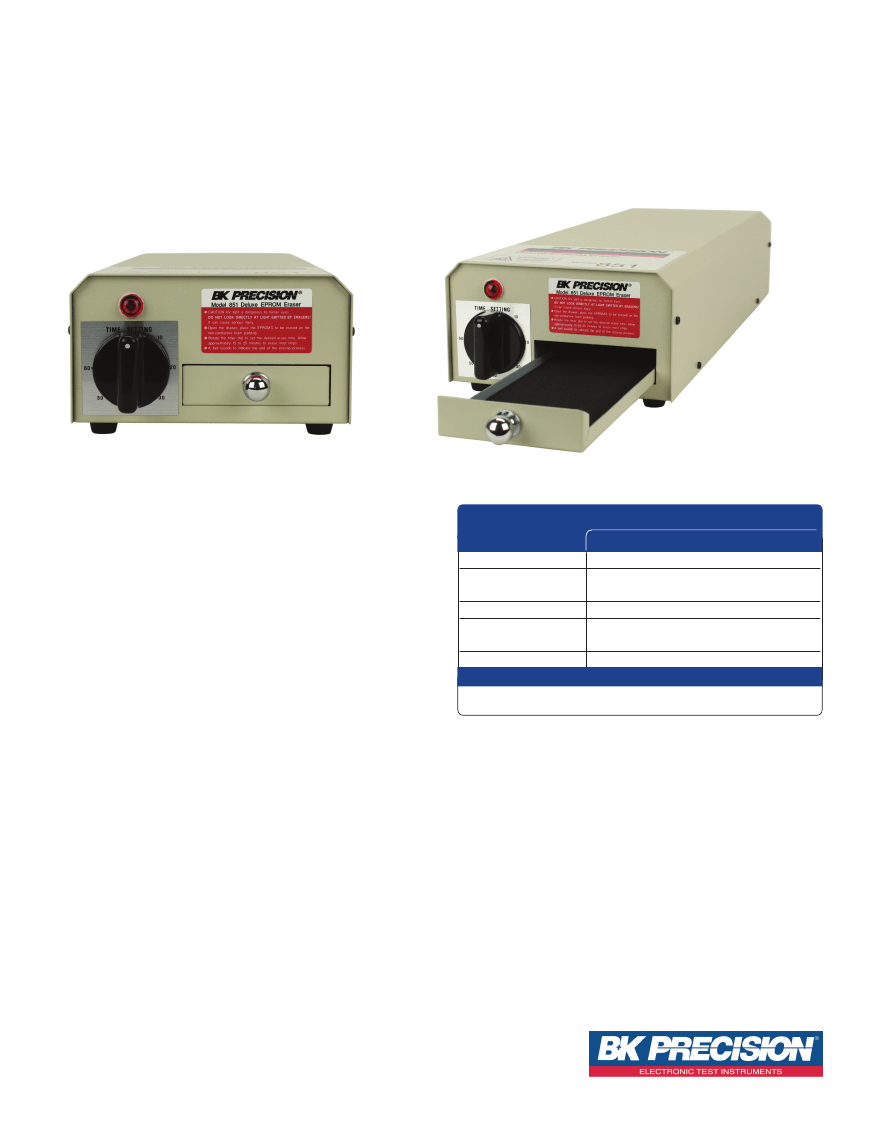

Deluxe EPROM Eraser

Model 851

The model 851 is a heavy duty EPROM eraser that can simultaneously erase

up to 40 twenty-four pin EPROM’s. It is constructed of an all-metal case

plus an advanced designed chip drawer that prevents UV radiation from

being a hazard to the user. The chip drawer is lined with

conductive foam to prevent electrostatic damage to the chips.

Features:

Specifications

851

Timer Setting

UV bulb wattage

Dimensions

Weight

Accessories

Supplied: User Manual, Power Cord

30 min.

100-120VAC 50/60Hz

10W

15.5 x 6 x 3.25"

(394 x 150 x 80mm)

8.8 lbs. (4kg)

model

Indicator light when erasing

safety switch inside the drawer shuts off unit

capacity

whenever the drawer is opened

Power

Large

One

One Year Warranty

year warranty

Technical data subject to change

v022609

w w w.bk prec ision.c om

Tel.: 714.921.9095
