U2S-Xscale

Description
jtag debuggers usb2sprite for xscale 20p jtag hdr
CategoryDevelopment board/suite/development tools
File Size663KB,1 Pages
ManufacturerMacraigor Systems LLC
Websitehttp://www.macraigor.com/default.htm
Environmental Compliance
Download Datasheet Parametric Compare View All

U2S-Xscale Online Shopping

Suppliers Part Number Price MOQ In stock
U2S-Xscale - - View Buy Now

U2S-Xscale Overview

jtag debuggers usb2sprite for xscale 20p jtag hdr

U2S-Xscale Parametric

Parameter NameAttribute value
ManufactureMacraigor Systems
Product CategoryJTAG Debuggers
RoHSYes
ProducJTAG In-Circuit Debuggers
Tool Is For Evaluation OfXscale MCUs
For Use WithOCD Debugger, GNU Tool Ki
CoreARM
Interface TypeEthernet, JTAG, Parallel, Serial, USB
Operating Supply Voltage2.2 V to 5 V
PackagingBulk

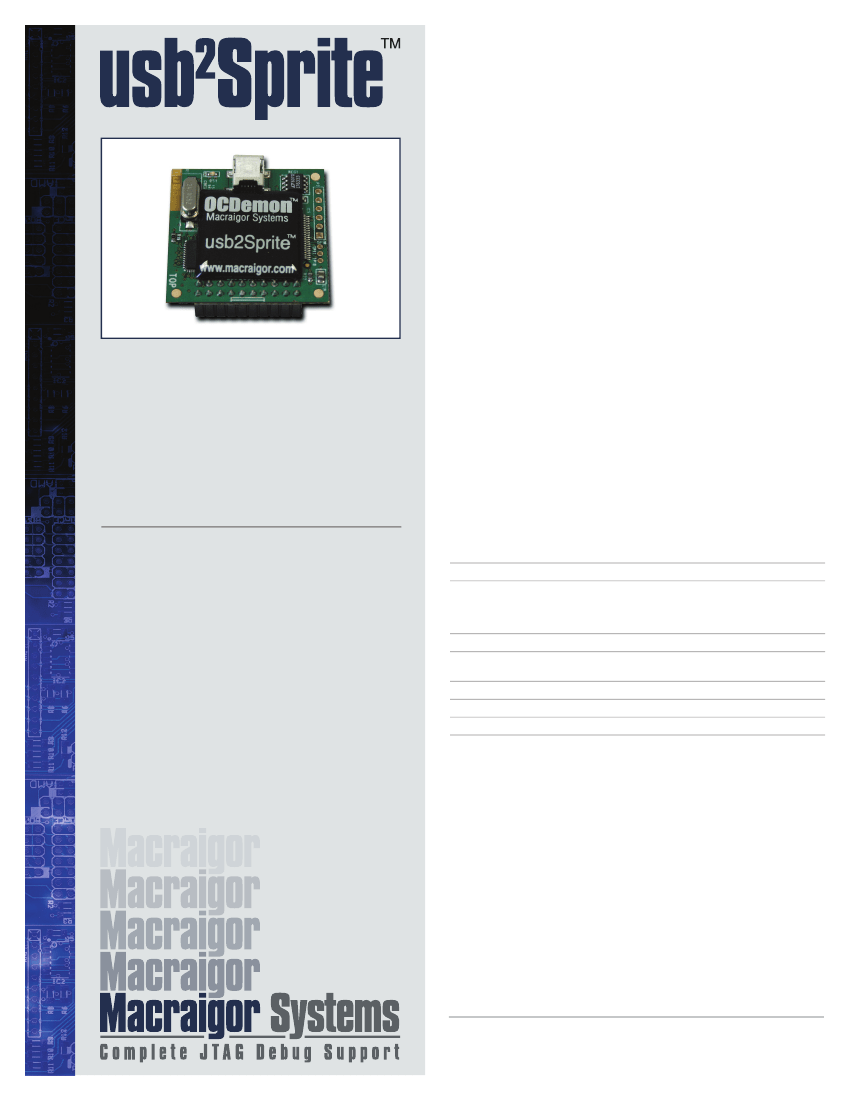

Features
Low cost on-chip debugging interface
Provides a simple, self powered, host USB to target mini USB debug interface
Very small footprint means boards can be shipped with the usb
2
Sprite
TM
already installed
Small size and USB’s 5 meter (16 ft) maximum cable length mean a usb
2
Sprite
TM
can go in
hard to reach places
High speed downloads
Flash memory programming
Multi-core/multi-processor debugging
Interoperability with major 3rd party software debuggers
Free GNU tools suite
Free OCD Commander assembly-level debugger
Support for Windows and Linux (Red Hat 7.2 – 9, Fedora Core 2) hosts
Supported Debuggers and Tools
The usb
2
Sprite is fully compatible with all of Macraigor’s software tools, including our free OCD
Commander debugger, free GNU toolkit distributions, OCD Flash Programmer application, and our
production line test tools.
In addition, several commercial third-party debuggers can interface to the usb
2
Sprite. A partial list of
our debugger partners includes:
Accelerated Technology/ Mentor Graphics
Allant (ARM)
Arc (Metaware)
Altium
DDC-I
Green Hills Software
IAR Systems
Metrowerks
Microcross
Microsoft
Paradigm Systems
Red Hat
Viosoft
The usb
2
Sprite is a self-powered, cable-less,
miniaturized (2.25 in
2
) version of our usb
2
Demon
that plugs directly into a board’s JTAG/BDM header
providing “built-in” debug connectivity. To the
user the usb
2
Sprite looks like a USB mini connector
sitting on top of the board’s JTAG/BDM header.
Problems caused by customer installation errors,
JTAG cable noise, parallel port incompatibility,
and the need for an external power supply are
eliminated.
For a complete list of compatible debuggers, please visit our web site.
Supported Processors
AMCC:
ARM:
Freescale:
PPC405, PPC440
7TDMI, 710T, 720T, 740T, 9TDMI, 920T, 922T, 940T, 946T, 1136J-S
MC9328MX1, MPC8xx, MPC5xx, MPC5554, MPC740, MPC745,
MPC750, MPC755, MPC8240, MPC8245, MPC8247/8248, MPC8250,
MPC8255, MPC8260, MPC8264/65/66, MPC8270/71/72, MPC8280, MPC8540,
MPC8560, MPC8541, MPC8555
PPC603e, PPC740, PPC750
®
IBM:
Intel XScale
Technology:
Net Silicon:
Phillips:
Triscend:
PXA21x, PXA25x, PXA26x, PXA27x, IOP3xx, IXC1100, IXP42x, IXP46x, IXP24xx,
IXP28xx, 80200, 80219, 8032x, 8033x
NetARM+10, NetARM+40, NetARM+50, NS7520, NS9750
PR1900
A7
For a more complete and up to date list of supported processors, please visit our web site.
Macraigor Systems LLC
www.macraigor.com
Sales Inquiries:
206-855-9269
Macraigor Systems is a leading supplier of BDM/JTAG connection solutions for on-chip debugging of 32 and
64-bit embedded microprocessors. Macraigor Systems’ solutions are designed for price-sensitive customers.
These solutions include a suite of software tools that supports Windows 9x, NT, ME, XP Linux and Solaris host
,
systems. Macraigor Systems supports all major embedded microprocessor architectures, including AMD,
ARM, ColdFire, CPU32 Series, PowerPC, MIPS and the XScale microarchitecture.

U2S-Xscale Related Products

U2S-Xscale U2S-COP U2S-ONCE
Description jtag debuggers usb2sprite for xscale 20p jtag hdr jtag debuggers usb2sprite for cop jtag debuggers usb2sprite for dsp & tensilica cpus
Manufacture Macraigor Systems Macraigor Systems Macraigor Systems
Product Category JTAG Debuggers JTAG Debuggers JTAG Debuggers
RoHS Yes Yes Yes
Produc JTAG In-Circuit Debuggers JTAG In-Circuit Debuggers JTAG In-Circuit Debuggers
Tool Is For Evaluation Of Xscale MCUs Freescale 603e, 82xx and 85xx Freescale DSP56xxx, Tensilica, AMD AM32
For Use With OCD Debugger, GNU Tool Ki OCD Debugger, GNU Tool Ki OCD Debugger, GNU Tool Ki
Interface Type Ethernet, JTAG, Parallel, Serial, USB Ethernet, JTAG, Parallel, Serial, USB Ethernet, JTAG, Parallel, Serial, USB
Operating Supply Voltage 2.2 V to 5 V 2.2 V to 5 V 2.2 V to 5 V
Packaging Bulk Bulk Bulk
