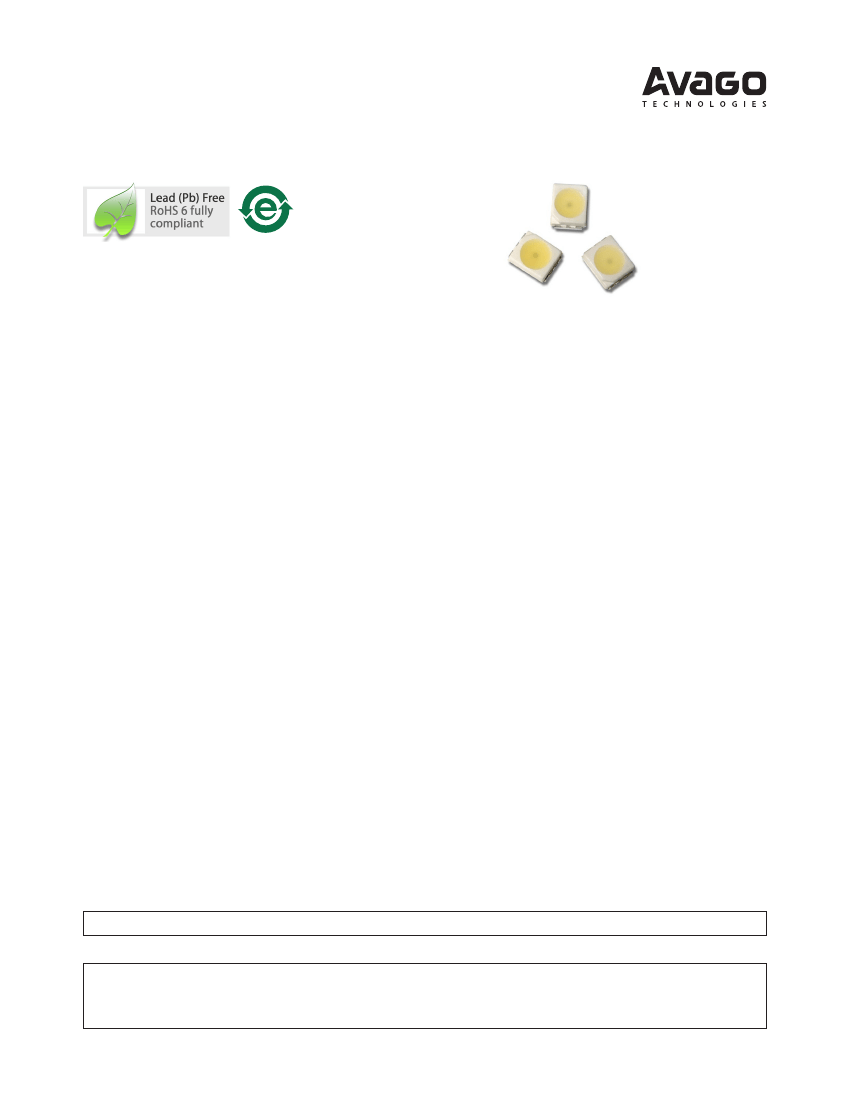

ASMT-UWB1-NX302
OneWhite Surface Mount PLCC-2 LED Indicator
Data Sheet
Description
This family of SMT LEDs is packaged in the industry
standard PLCC-2 package. These SMT LEDs have high
reliability performance and are designed to work under
a wide range of environmental conditions. This high
reliability feature makes them ideally suited to be used as
interior signs application conditions.

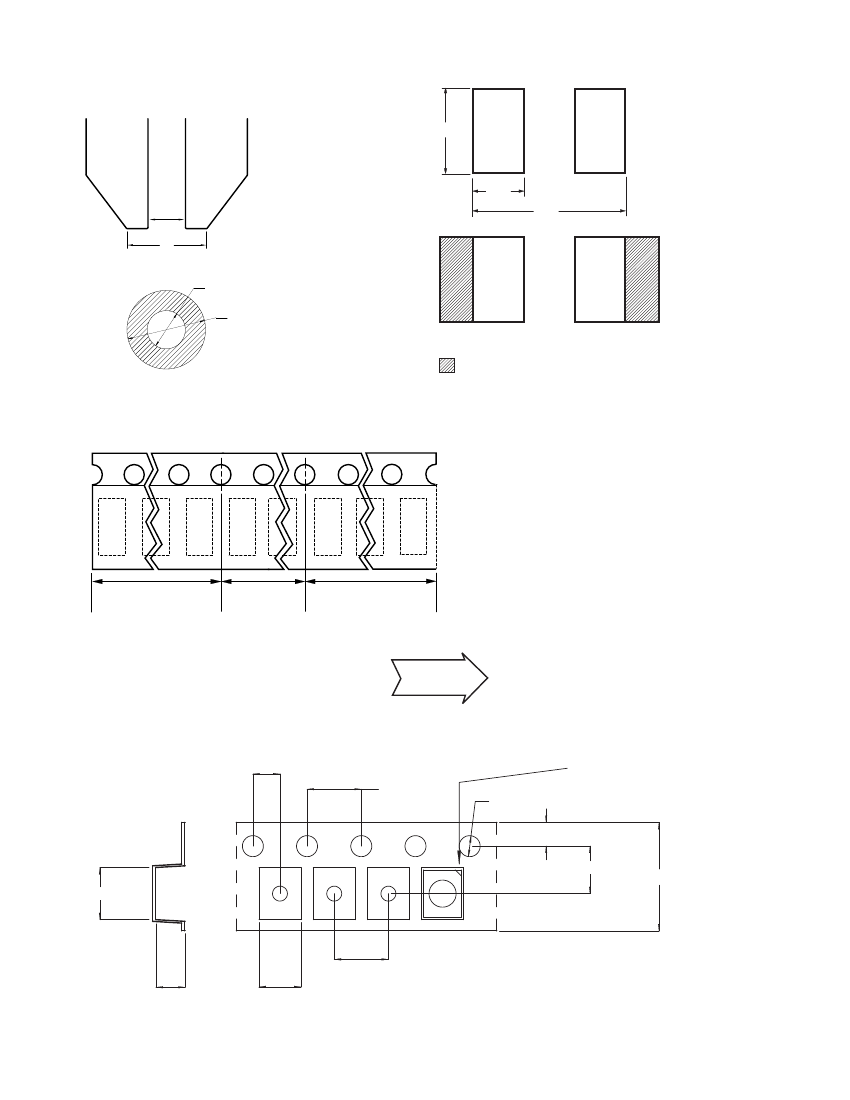

To facilitate easy pick & place assembly, the LEDs are
packed in EIA-compliant tape and reel. Every reel will be
shipped in single intensity and color bin.
These LEDs are compatible with reflow soldering process.
The wide viewing angle at 120° makes these LEDs ideally
suited for panel, push button, office equipment, industrial
equipment, and home appliances. The flat top emitting
surface makes it easy for these LEDs to mate with light
pipes. With the built-in reflector pushing up the intensity
of the light output, these LEDs are also suitable to be used
as LED pixels in interior electronic signs.
Features
•
High reliability package with silicone encapsulation
•
Compatible with reflow soldering process
•
High optical efficiency with 100 lm/W
•
Available in 8 mm carrier tape with reel diameter
180mm
•
JEDEC MSL 3 product
•
ESD threshold of 1000 V (HBM model) per Jedec
Applications
•
Non-automotive use
•
General Signage backlighting
•
Amusement machine backlighting
•
Industrial lighting
•
Light strips
CAUTION:
LEDs are ESD sensitive. Please observe appropriate precautions during handling and processing.
This preliminary data is provided to assist you in the evaluation of product(s) currently under development. Until
Avago Technologies releases this product for general sales, Avago Technologies reserves the right to alter prices,
specifications, features, capabilities, functions, release dates, and remove availability of the product(s) at anytime.
Part Numbering System
ASM T – U X
1
B1 – N X
2
X
3
X
4
X
5
Packaging Option
Color Bin Selection
Intensity Bin Selection
LED Chip Color
Absolute Maximum Ratings (T
A
= 25° C)
Parameters
DC Forward Current
(1)
Peak Forward Current
(2)
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Notes:
1. Derate linearly as shown in derating curve.
2. Duty Factor = 10%, Frequency = 1 kHz
Rating
30 mA
100 mA
108 mW
110° C
-40° C to +85° C
-40° C to +100° C
Optical Characteristics (T
A
= 25° C)
Viewing
Luminous
(2)
Efficiency
Angle 2θ
½
(Degrees)
η
e
(lm/W)
Typ.
120
Color
White
Part Number
ASMT-UWB1-NX302
Dice
Technology
InGaN
Typ. Chromaticity
Coordinates
(1)
x
0.33
Total Flux /
Luminous
Intensity
θ
V
(lm) / I
V
(cd)
Typ.
2.8
CRI
Min.
70
y
0.34
Typ.
100
Notes:
1. The chromaticity coordinates are derived from the CIE 1931Chromaticity diagram and represents the perceived color of the device.
2.
θ
½
is the off-axis angle where the luminous intensity is ½ the peak intensity.
Electrical Characteristics
(T
A
= 25° C)
Forward Voltage
V
F
(Volts) @ I
F
= 20 mA
Color
White
Reverse
Voltage V
R (1)
@ 10
mA
Min.
5
Part Number
ASMT-UWB1-NX302
Min.
2.8
Max.
3.6
Thermal
Resistance
Rθ
J-P
(°C/W)
150
Note:
1. Reverse Voltage indicates product final test condition. Long term reverse bias is not recommended.
3
35
Relative Luminous Intensity
(Normalized at 20 mA)
0
1
2
Forward Voltage (V)
3
4
30
Forward Current (mA)
25
20
15
10
5
0
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
DC Forward Current (mA)
30
35
Figure 1. Forward current vs. forward voltage
Figure 2. Relative intensity vs. forward current
0.003
0.002
0.001
0
-0.001
-0.002
-0.003
-0.004
5 mA
10 mA
y
30 mA
20 mA
15 mA
Normalized Intensity
0.001 0.002 0.003
1
0.75
0.5
0.25
0
-0.005
-0.005 -0.004 -0.003 -0.002 -0.001
x
0
-90
-60
-30
0
30
Angular Dispalcement (
°
)
60
90
Figure 3. Chromaticity shift vs. current
Figure 4. Radiation pattern
0.035
0.030
Forward Current (A)
0.025
0.020
0.015
0.010
0.005
0.000
0
20
40
60
Ambient Temperature (
°
C)
80
100
10 - 30 SEC.
TEMPERATURE
217° C
200° C
150° C
3°C/SEC. MAX.
60 - 120 SEC.
TIME
(Acc. to J-STD-020C)
Figure 6. Recommended Pb-free reflow soldering profile
100 SEC. MAX.
255 - 260° C
3°C/SEC. MAX.
6°C/SEC. MAX.
Figure 5. Maximum forward current vs. ambient temperature. Derated
based on Tjmax 110° C, Rthja 600°C/W
